UV-LED Spot Curing System 8332C

High power is achieved by using high power LED and unique optical design.( 280nm, 365nm, 385nm, 405nm ) Pursued High Cost-performance

High performance head for easy operation

  • High intensity of 18,000mW/cm2*1

    High power is achieved by using high power LED and unique optical design.

  • Wide range of wavelengths

    Selectable from 280nm, 365nm, 385nm, 405nm

  • Long lifetime of 20,000 hours with a low power consumption of 25 W *2

    Compared with the conventional lamp-type UV box, this controller has made a significant reduction in running cost.*3

  • 4 individually controllable heads

    Irradiation ON/OFF and irradiation time of the four irradiation heads are individually controlled in a single unit.

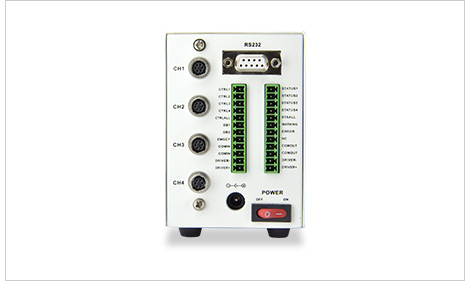

  • I/O port and RS-232 communication interface

    You can control the irradiation pattern externally.

  • *1 Using Ø3mm spot lens (365nm), WD: 5.5mm with mid-level radiant flux
  • *2 Excluding 280nm
  • *3 Comparison using previously purchased lamp-type light source (based on data from Jan 2021).Power consumption: 25W (8332C) vs. 200W (Lamp), Lifetime: 20,000hr (8332C) vs. 2,000hr (Lamp)

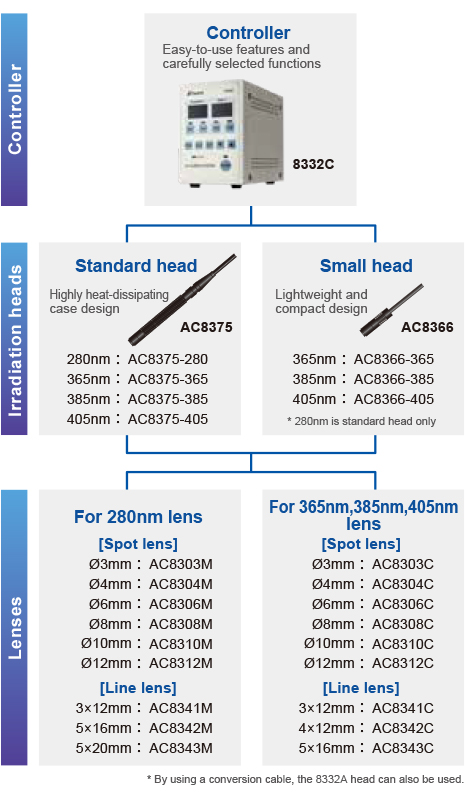

Various Irradiation Styles to Meet Your Needs

  • You can select the irradiation head for your installation environment

    (1)Standard head can provide a steady performance with a highly heat-dissipating case design.

    Standard Head

    (2)Small head can save space with its lightweight and compact design.
    * When you install the small head, use the mounting bracket that comes with the product.

    Compact Head

  • You can select from four different wavelengths according to your workpiece conditions.

    280nm, 365nm, 385nm, 405nm

  • You can select from four different wavelengths according to your workpiece conditions.

    (1)Spot lens has six size variations to achieve optimum irradiation.

    *Visual image of the range of

    (2)Line lens has three size variations to achieve optimum irradiation.

    *Visual image of the range of Line-Type Lens

Product Outline

Specifications

Controller
Model Name8332C
Irradiation type Time specified irradiation Intensity (1 to 100%), Irradiation time (0.1 to 999 sec)
Continuous irradiation Intensity (1 to 100%), Irradiation time depends on the external signal.
Communication ports
for Controlling		 Parallel I/O Input Irradiation ON/OFF (Response time: 20 ms), Data bank switching, Interlock
Output Irradiation status output, Warning output, Error output
RS-232C Irradiation control, Parameter setting/loading
Error detectionUnconnected Heads, Circuit shortage/open, Abnormal temperature
Displaying methodDigital display
Number of irradiation output ports4(Controlled individually)
Input voltageAC100 to 240V 50/60Hz (AC adapter included)
Power consumption25 W max.
Cooling methodNatural air cooling (Without fans)
Vibration resistance10 to 150 Hz, Acceleration: 50 m/s2, Half amplitude: 0.35 mm
10 times/8 minutes in each x, y, and z direction
Shock resistance Height: 1.5 m, 3 times in each side (Top and bottom, right and left, front and rear, and 45°)
Ambient temperatureOperation: 5 to 40°C, Storage: -15 to 65°C (with no condensation, freezing)
Ambient humidity20 to 85% (with no condensation, freezing)
MaterialSteel plate
Weight 750 g (Excluding the AC adapter and irradiation heads)
Accessories AC adapter, Foot switch, Mounting bracket, Protection glasses, Manual
CE markingSafety standard: Conforms to EN60950-1
EMC standard: Conforms to EN55032, EN61000-3-2,
EN61000-3-3, EN55024
Environmental regulations: RoHS compliant
Irradiation heads
ModelAC8375 (Standard head)AC8366 (Small Head)*1
Wavelength280nm, 365nm, 385nm, 405nm 365nm, 385nm, 405nm
Allowable Cable Bending Radius 30 mm
MaterialsCopper, Aluminum alloy, Glass
Weight150 g (Excluding the mounting bracket)

*1 When you install the small head, use the mounting bracket that comes with the product.

Outer Dimensions（mm）

  • 8332A Outer Dimensions

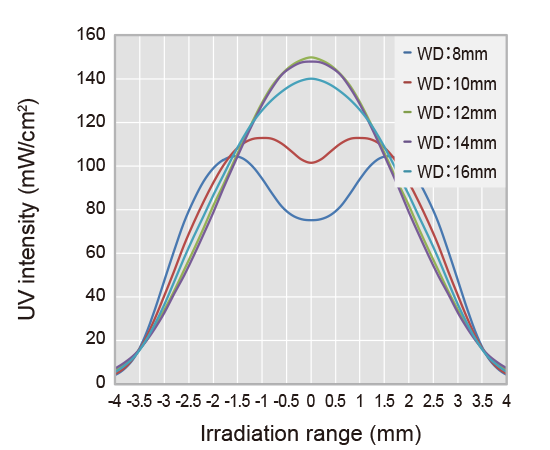

UV Intensity Profile (Examples)

Spotlight Lens
For 280nm Spot lens
  • AC8303M ( Ø3 mm )
    AC8303M ( Ø3 mm )
  • AC8304M ( Ø4 mm )
    AC8304M ( Ø4 mm )
  • AC8306M ( Ø6 mm )
    AC8306M ( Ø6 mm )
  • AC8308M ( Ø8 mm )
    AC8308M ( Ø8 mm )
  • AC8310M ( Ø10 mm )
    AC8310M ( Ø10 mm )
  • AC8310M ( Ø12 mm )
    AC8310M ( Ø12 mm )
For 365 / 385 / 405nm Spot lens*3
  • AC8303C ( Ø3 mm )
    AC8303C ( Ø3 mm )
  • AC8304C ( Ø4 mm )
    AC8304C ( Ø4 mm )
  • AC8306C ( Ø6 mm )
    AC8306C ( Ø6 mm )
  • AC8308C ( Ø8 mm )
    AC8308C ( Ø8 mm )
  • AC8310C ( Ø10 mm )
    AC8310C ( Ø10 mm )
  • AC8312C ( Ø12 mm )
    AC8312C ( Ø12 mm )
Line-Type Lens
For 280nm Line lens
  • AC8341M ( 3 mm × 12 mm )
    AC8341M ( 3 mm ×12 mm )
  • AC8342M ( 5 mm × 16 mm )
    AC8342M ( 5 mm ×16 mm )
  • AC8343M ( 5 mm × 20 mm )
    AC8343M ( 5 mm ×20 mm )
For 365 / 385 / 405nm Line lens*3
  • AC8341C ( 3 mm × 12 mm )
    AC8341 ( 3 mm × 12 mm )
  • AC8342C ( 4 mm × 12 mm )
    AC8342 ( 4 mm × 12 mm )
  • AC8343C ( 5 mm × 16 mm )
    AC8343 ( 5 mm × 16 mm )
  • * WD: The distance between the outermost tip of the lens and the workpiece.
  • * This data was measured at 100% intensity using the mounting bracket, and was based on our measurement conditions.
        (This does not guarantee the product quality.)
  • *3 UV Intensity Profile is measured at 365nm with low-level radiant flux.
  • We hereby inform you that we will discontinue 8332A Series, effective 31 December 2022.
