Spotlight-Type UV-LED Light Irradiation Unit(Available only in Asia)

Carefully selected operability/functionality/light irradiation variations

Controller that is easy to use and provides carefully selected functionality

  • Easy to operate and provides light with a wavelength of 365nm and 11,000mW/cm2* power

    Makes use of a reliable UV-LED to achieve stable irradiating power

  • Low power consumption of 25W and long 20,000 hour lifespan

    It is possible to drastically reduce running costs when compared to lamp-type solutions

  • 4 head independent control

    This single unit allows for 4 head independent ON/OFF control and timed lighting

  • Equipped with an I/O port and RS-232C communication

    It is possible to perform light irradiation pattern control using external control

Light irradiation variations that meet a diverse range of needs

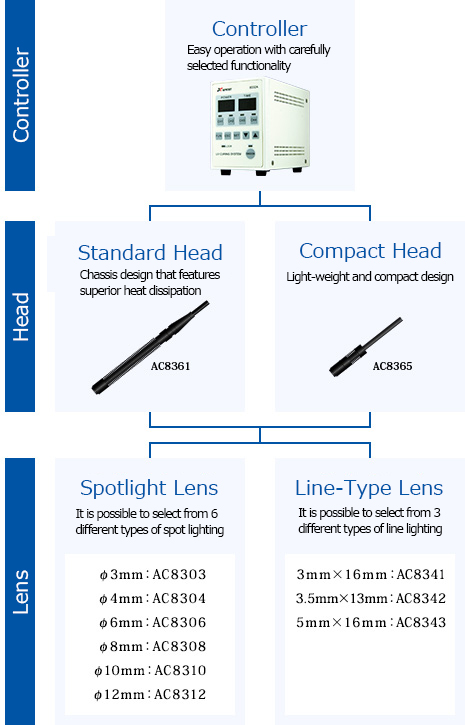

  • It is possible to select a head that is optimal for the installation environment

    The chassis has been designed for superior heat dissipation, and the "Standard

    Standard Head

    With a light-weight and compact design, the "Compact Head" can be installed in compact spaces
    *When fastening the Compact Head, please use the included attachment fixture

    Compact Head

  • It is possible to select the optimal light irradiation configuration that matches your adhesion conditions

    With 6 different spotlight sizes, the "Spotlight Lens" provides you with optimal lighting Spotlight Lens

    *Visual image of the range of

    With 3 different line lighting sizes, the "Line-Type Lens" provides you with optimal lighting

    *Visual image of the range of Line-Type Lens

Product Outline

Specifications

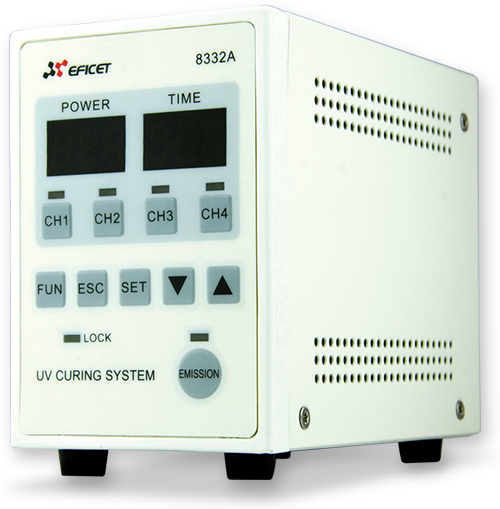

Controller
Model Name8332A
Successor series is "8332C".
(We hereby inform you that we will discontinue 8332A Series, effective 31 December 2022.)
Irradiation Method Timed Irradiation Dimming values (1 to 100%), irradiation time (0.1 to 999 seconds)
Constant Irradiation Dimming values (1 to 100%), light irradiation time is determined by external signal

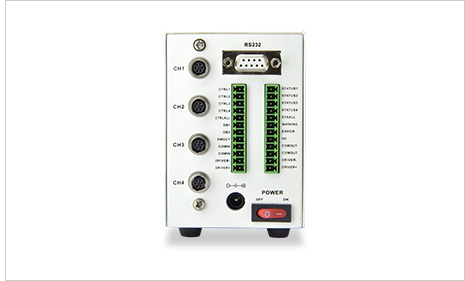

Control/Communication Board I/O Input Light irradiation ON/OFF (response speed 20ms), data bank switching, inter-locking
I/O Output Light irradiation status output, alert output, error output
RS-232C Light irradiation control and configuration/loading of setting parameters
Error DetectionHead disconnected, short circuit/disconnection, abnormal temperature
Display MethodDigital display
Number of Light Irradiation Ports4
Input VoltageAC100 to 240V 50/60Hz (AC adapter included)
Power Consumption25W max.
Cooling MethodNatural air-cooling (no fan)
Vibration (Resistance)10 to 150Hz, acceleration: 50m/s2, half amplitude: 0.35mm 10 cycles/8 minutes in x/y/z direction
Shock (Resistance)Height: 1.5m, 3 cycles in each direction (up/down, left/right, front/back 45°)
Ambient Temperature RangeUsage: +5°C to +40°C Storage: -15°C to +65°C (ensure that there is no condensation or freezing)
Ambient Humidity Range20 to 85% (ensure that there is no condensation or freezing)
Weight750g (does not include AC adapter or head)
AccessoriesAC adapter, foot switch, protective goggles, user manual
Head
Model NameAC8361 (Standard Head)AC8365 (Compact Head)*1
Wavelength365nm (385nm is also available)
Allowable Cable Bending Radius30mm
MaterialsCopper, aluminum alloy, glass
Weight150g (does not include attachment fixture)

*1 When fastening the Compact Head, please use the included attachment fixture.

Spotlight Lens
Model NameAC8303AC8304AC8306AC8308AC8310AC8312
Spotlight DiameterØ3mmØ4mmØ6mmØ8mmØ10mmØ12mm
Irradiation Distance9～11mm11～13mm16～18mm22～24mm32～34mm35～37mm
Maximum Irradiance*211,000mW/cm29,200mW/cm24,000mW/cm22,300mW/cm21,300mW/cm2900mW/cm2
MaterialsAluminum alloy, glass

*2 Values measured using 100% dimming, with attachment fixture being used, under measurement conditions determined by our company (not guaranteed values).

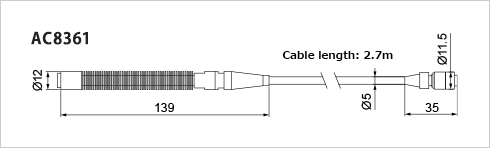

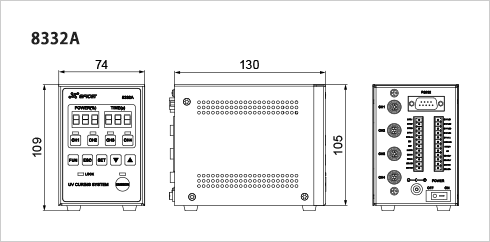

External Dimensional Diagram（mm）

8332AAC8361

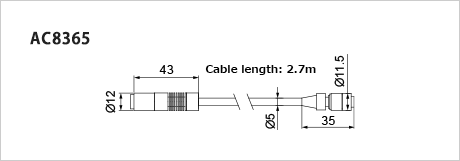

AC8365LensAttachment Fixture (included)

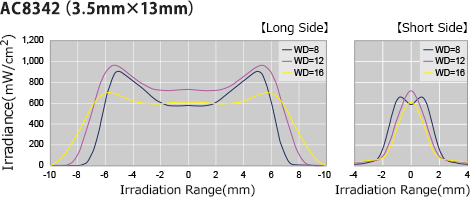

Irradiance Profile (representative example)

*WD indicates the distance from the lens edge surface to the work sample
*Values measured using 100% dimming, with attachment fixture being used, under measurement conditions

Spotlight Lens

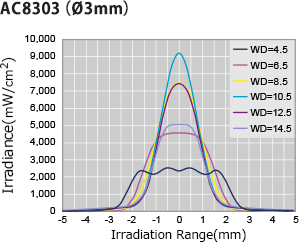

  • AC8303（O3mm）
  • AC8304（O4mm）
  • AC8306（O6mm）

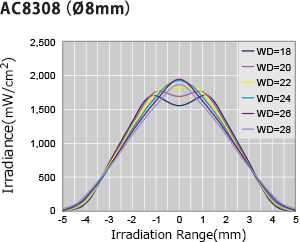

  • AC8308（O8mm）
  • AC8310（O10mm）
  • AC8312（O12mm）
Line-Type Lens

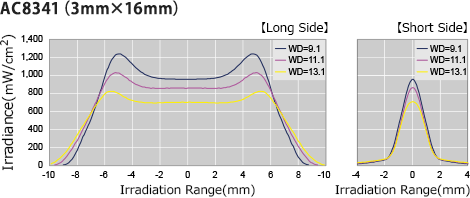

  • AC8341（3mm×16mm）
  • AC8342（3.5mm×13mm）
  • AC8342（3.5mm×13mm）
