Industry Leading Flat Dome Light with a Clear Field of View.
Newly developed light-guiding plate.
- Available in 10 sizes, for a total lineup of 40 models
- Large sizes up to 300mm and rectangular sizes now available
- Select from four LED colors: red, white, blue, and infrared
- Space-saving case design is thin, compact,and lightweight
High brightness, light-weight compact design, and wide field of view.
Download Pamphlet PDF
A cutting-edge method for inspecting bumps on a reflective surface.
We have two types of line intervals to match your inspection conditions:
1 mm type: The end of the model name is "A."
2 mm type: The end of the model name is "B."
* The Line Pattern Lights are special order products.
Download Pamphlet PDF
These are "high-power", "uniform", and "easy to use" Dome Lights with three times the brightness of the previous models.
Increased size variations, full color (RGB) models, and infrared (860 nm) models were added in the standard product lineup. Abundant lineup of optional products such as the joint brackets is provided.
Download Pamphlet PDF
- Illumination Structure
- Light from the surface-mounted LED is scattered inside of the dome-shaped reflective diffusion panel. The scattered light from the wide uniform region is illuminated onto the workpiece surface evenly.
These Dome Lights provide unique heat-dissipating structure.
Diffused light is irradiated over the entire workpiece from a wide light-emitting surface.
- Illumination Structure
- The light from LEDs is transmitted through a light-guiding diffusion plate to illuminate the entire workpiece with uniform diffused light from a wide light-emitting surface. New heat dissipating construction.
These Light Units have a composite structure for both diffused and coaxial illumination. Curved workpieces with glossy surfaces such as soldered products are evenly illuminated.
- Illumination Structure
- This Light Unit combines diffused lighting and a coaxial lighting. It can evenly perform uniform illumination for glossy, curved workpieces.
[Not available in Japan]

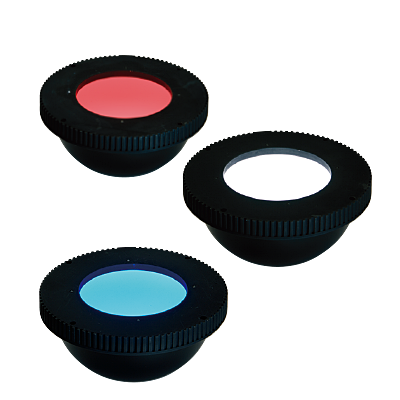

"FALUX sensing"* enables monitoring of brightness and feedback control.
*Included in HPDS Series only.
Provides diffused light evenly through the dome-shaped reflective panel.
These Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens.
Mirror surface workpieces are uniformly illuminated without unevenness.
The diffusion plate is adjustable and exchangeable.
Download Pamphlet PDF
- Illumination Structure
- These illumination Coaxial Light Units use a special heat-dissipating structure, and radiate light in the same axis as the camera axis through the use of a half mirror.
Coaxial Lights for high-resolution cameras.
Slim half mirror prevents ghost images.
- Equipped with a slim half mirror
- Prevents ghost images and achieves high-resolution imaging
- Particular lighting technology achieves high output and high uniformity
- Available in eight sizes and three colors(Red,Blue,White), for a total of 24 models.
Lens-integrated parallelism-variable coaxial lights (custom order).
Integrated lens for easy light source and camera optical axis adjustment.
This is a made-to-order product. For queries and details, contact your CCS sales representative.
These Coaxial Lights provide collimated lighting which is created through a special lens.
The product lineup includes five models with different fields of view and the LED colors of red (RD2), white (SW), blue (BL), and green (GR).
- Illumination Structure
- These Coaxial Light Units radiate collimated light through the use of the unique lighting technology. They are ideally suited for photographing minute scratches, dents, and marks that are difficult to be photographed with illumination Coaxial Light Units.
LDR2-32RD2
- Standard Product
Add to Watch List
LDR2-32SW2
- Standard Product
Add to Watch List
LDR2-32BL2
- Standard Product
Add to Watch List
LDR2-32GR2
- Standard Product
Add to Watch List
LDR2-42RD2
- Standard Product
Add to Watch List
LDR2-42SW2
- Standard Product
Add to Watch List
LDR2-42BL2
- Standard Product
Add to Watch List
LDR2-42GR2
- Standard Product
Add to Watch List
LDR2-50RD2
- Standard Product
Add to Watch List
LDR2-50RD2-WD
- Standard Product
Add to Watch List
LDR2-50SW2
- Standard Product
Add to Watch List
LDR2-50BL2
- Standard Product
Add to Watch List
