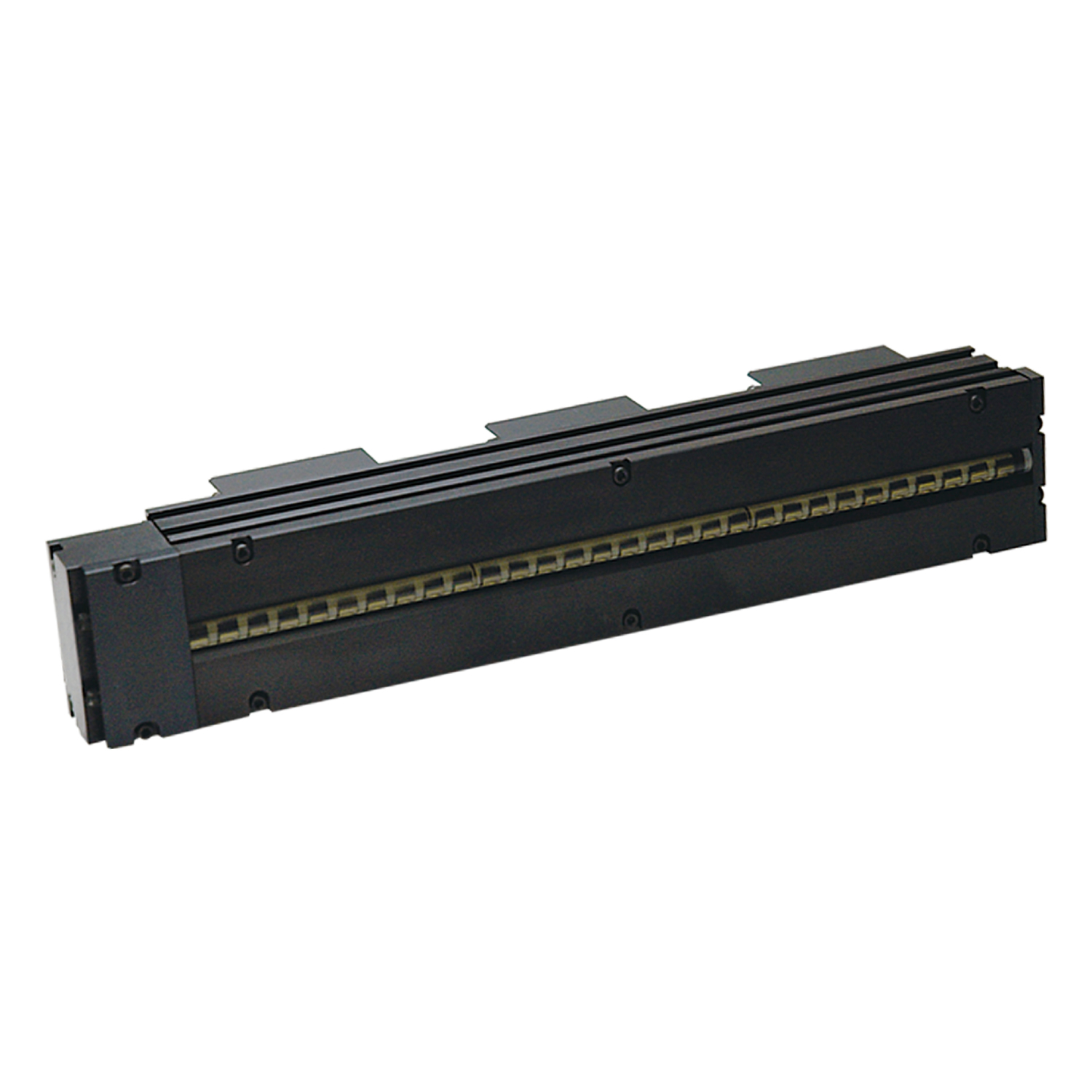

LNSP-UV-FN Series

These UV-LED irradiators are optimum for excitations. The "wide type" irradiator provides diffused irradiation over a wide area. The "narrow type" irradiator provides less-attenuation, long-distance irradiation.

Product Related Inquiries

Features

  • High-capacity constant current Analog Control Units. 300 W and 600 W models are available.
  • The light intensity can be set to any of 256 or 1,000 different levels.※Parallel communications: Adjustment to 256 levels only
  • You can adjust the light intensity separately for each Light Unit circuit.※With Ethernet or EIA-485 communication
  • External control compatible with parallel, EIA-485 and Ethernet communication using a single unit.
  • The error detection function is able to detect insufficient speed or stopping of the Light Unit cooling fan and bulb burn-out errors by disconnected or shorted LED circuit.

Example connections

Refer to the “Instruction Guide” for details.

Parallel communication
Example connections of external signal

ON/OFF input
Example connections of external signal

You can reverse the operation logic.

Characteristics/Data

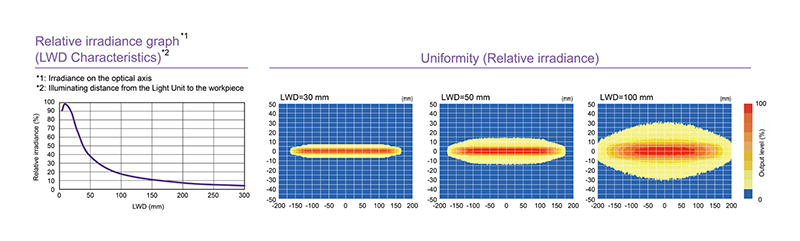

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

Narrow Type

Wide Type

LED properties

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength. For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

Please contact your CCS sales representative.

Imaging Example

Imaging to detect contact lenses inside packaging

Description Detection inspection
Workpiece Contact lenses
Conventional lighting LED visible light lighting
New lighting LNSP-300UV365-FNNR
Result Fluorescent excitation via ultraviolet lighting

Imaging of alignment of clear film

Description Visual inspection
Workpiece Clear film
Conventional lighting LED visible light lighting
New lighting LNSP-300UV365-FN
Result Fluorescent excitation via ultraviolet lighting
