TH2 Series

These light units are evolved from TH series, and achieved high power.

Product Related Inquiries

TH2

Features

Achieved further-higher luminance

With their increased brightness, these Flat Lights are available at high-speed production lines.

Increased output greater than that of the conventional products

Install freely to match your environment

Uses installation method by frame structure. Tapped holesfor installation are included not only on the unit side butalso on the bottom.

Rich product lineup

Our abundant product lineup can meet a wide range of needs. A total of 73 models of different types of Flat Lights.

Brightness and size of each Light Unit type

Example configuration

Achieved highoutput with a flat shape. Light fromthe LEDs is transmitted throughthe diffusion paneland illuminated onthe rear of theworkpiece.

TH2-140X105

Characteristics/Data

Data : Uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

Imaging example

Imaging of liquid surface level in PET bottle

Imaging of the appearance of electronic components

Imaging of the appearance of medicine (individual packaging)

TH2-PM

Features

Achieved high directivity of light

These high-output Flat Light Units are equipped with improved light directivity. This makes them ideal for dimension measurements and other inspections that require outline extraction of the workpiece.

Comparison of light directivity

Comparison of images

Abundant emitting surface sizes

Abundant product lineup allows you to select the optimum size that will match your workpiece.

Emitting surface size (mm)

LED colors

The product lineup includes white, red, and blue Light Units, which can deal with a wide variety of inspection contents.

The rich lineup consists of 24 models, with 8 sizes in each color.

Example configuration

These high-output Flat Light Units are equipped with improved light directivity. This makes them ideal for dimension measurements and other inspections that require outline extraction of the workpiece.

TH2-140X105-PM

Characteristics/Data

Data : Uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

LED properties

Spectraldistribution

CCS offers you the most suitablelens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Imaging example

Imaging of the appearance of screws

Imaging of the appearance of transparent straw bags

Imaging of the appearance of acrylic plates

TH2 series Large type

Features

Example configuration

Flat Light Units with an emitting surface of up to 500 x 500 mm.
They are ideal for inspecting large workpieces and available to inspect a wide area.

TH2-300X300

Comparison of emitting surface sizes

Comparison of the maximum workpiece size in a production line

Characteristics/Data

Data (Representative example)

※The data included is for reference only. Actual values may vary.

LED properties

Spectraldistribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter, refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

We accept custom orders.

Please feel free to inquire.

  • Shape modifications
  • Brightness increases
  • Changes in wavelength, etc.

Imaging example

liquid surface level in large bottles

TH2 Rectangular type

Features

These Flat Lights are optimum for inspecting rectangular workpieces.Also applicable to inspections with a line sensor camera.

Example configuration

TH2-300X75

Comparison of emitting surface sizes

Characteristics/Data

Data (Representative example)

※The data included is for reference only. Actual values may vary.

TH2-300X75SW

LED properties

Spectraldistribution

CCS offers you the most suitablelens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

We accept custom orders.

Please feel free to inquire.

  • Shape modifications
  • Brightness increases
  • Changes in wavelength, etc.

Imaging example

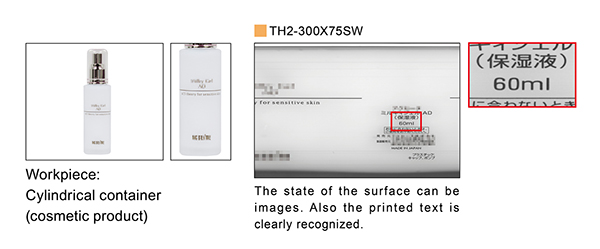

the appearance of cylindrical containers

TH2-CR

Illumination from the same axis as the camera

Illumination from the same axis as the camera

Flat Lights with a camera window at the center of the emitting surface. They do not serve as a back light but provide a light from the same axis as the camera in the way the Dome Lights and Coaxial Lights do.

Comparison of structures

Uniform illumination of a wide range

These Light Units have a wider emitting surface compared to that of the Coaxial Lights and Dome Lights. This enables uniform illumination of a wide range.

Applicable to a wide range of workpiece sizes

Product lineup

The available LED color is white or red.
Three sizes of emitting surface: 150x150 mm, 211x200 mm, and 300x300 mm.
These Light Units can deal with a wide variety of inspection contents.

Example configuration

Flat Lights with a camera window at the center of the emitting surface.They provide a light from the same axis as the camera.

TH2-300X300-CR35

Characteristics/Data

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

TH2-300X300SW-CR35

LED properties

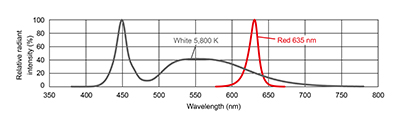

Spectraldistribution

CCS offers you the most suitablelens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

Imaging example

Imaging of FIPG sealing material on metal components

Imaging of stains and foreign materials in disposable diapers

Imaging of engraved text on textured metal surface

Lineup
