LDF-NB Series (Lights for Interference Fringe Inspection)

Lights for Interference Fringe Inspection LDF-NB Series
Lights that make coating presence or unevenness on thin film visible

* Interference fringes: Alternating bright and dark bands that can be observed when light is reflected from the top and bottom layers of a thin film.

LDF-NB Series is not available in North and South America.

Features

Features

  • Replacement for fluorescent lights and sodium vapor lamps
  • CCS unique optical technology enables lower speckle noise*1
  • Four emission colors (red, green, blue, RGB) available to suit individual needs

*1 Speckle noise is a typical phenomenon associated with laser diodes.

CCS-LT (CCS Leading Technology)

CCS-LT

LDF-NB Series is a CCS-LT brand product.
"CCS Leading Technology" is a new CCS product brand providing advanced technologies.

Its purpose is to introduce newly developed technologies to the market early and to broaden our range of solution proposals.

* The warranty period is for half a year from when the product ships. Emission amounts not guaranteed.

Imaging Example

Glass Lamination Inspection

General white LED

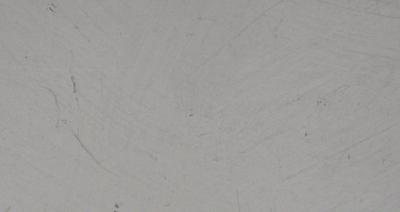

General white LED Imaging Example

Interference fringes and their pattern anomaly are not visible with general white LED
RGB light for interference fringe inspection

RGB light for interference fringe inspection Imaging Example

Uneven lamination becomes visible by using interference fringe inspection lighting.

Film Coating Irregularity Inspection*

Red light for fringe interference inspection
(no coating)

Red light for fringe interference inspection (no coating) Imaging Example

Interference fringes are not visible when there is no coating
Red light for fringe interference inspection
(with coating)

Red light for fringe interference inspection (with coating) Imaging Example

Interference fringes are visible with coating

* Imaged with a monochrome camera

Usage Example

Applications

Visual inspection

Visual inspection

Camera inspection

Camera inspection

  • Inspecting uneven coatings on films and glass
  • Inspecting laminated glass for irregularities
  • Inspecting wafer coatings for defects

Data

Data (Representative Example)

Uniformity (Relative radiance)

LDF-200X20RD-NB (Red type)

Uniformity (Relative radiance) LDF-200X20RD-NB

LDF-200X20GR-NB (Green type)

Uniformity (Relative radiance) LDF-200X20GR-NB

Spectral distribution

Spectral distributionModel

The data included is for reference only. Actual values may vary.

Custom Order

Custom Order

Coaxial types, flat types, and other shapes and sizes are available for custom order.
Production example: Surface type, light emitting surface measures 300 mm × 300 mm
