PFBR-600SW-LLCF-HD

  • Custom Order
  • Discontinued Product

Not available from Mar/11/2022".
The recommended alternative model is PFBR-600SW2-LLCF-HD.

High Power & High Speed Switching PFBR-600SW-LLCF-HD (Custom Model)
By applying preset light intensity values in a sequence according to the trigger input, it is possible to change light intensity at high speed (2 - 8 patterns). It is suited for inspections where the workpiece surface has differing reflectivity or transparency.
Filter Changer Model.

This is a made-to-order product. For queries and details, contact your CCS sales representative. This is a made-to-order product. For queries and details, contact your CCS sales representative.

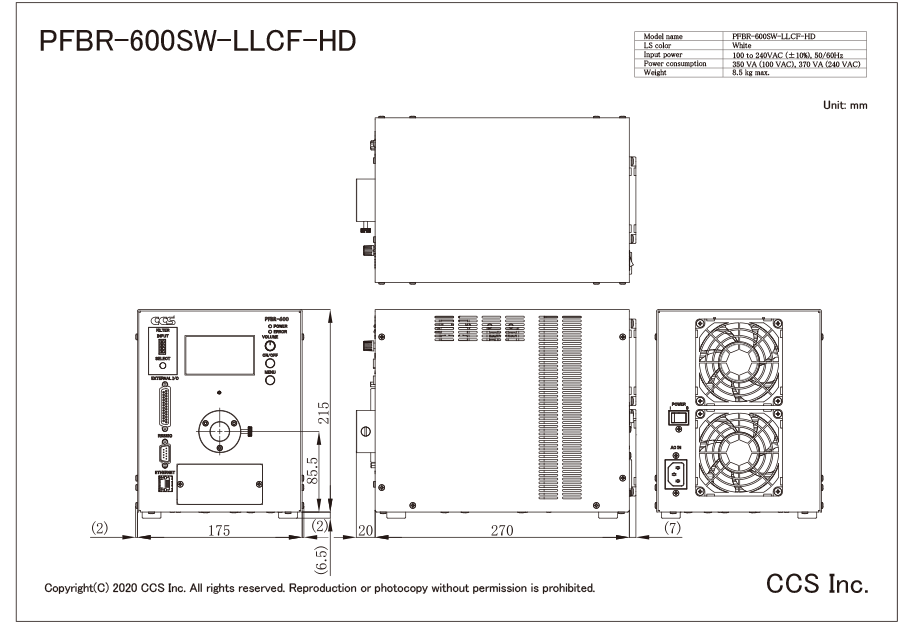

Dimensions (mm)

* Click to enlarge image.

Example

Workpiece sample of electrode sheet
(same workpiece under different light intensity set for each trigger input)

  • Triger 1 / Light Intensity:40
    Triger 1 / Light Intensity:40
  • Triger 2 / Light Intensity:70
    Triger 2 / Light Intensity:70
  • Triger 3 / Light Intensity:100
    Triger 3 / Light Intensity:100
  • Triger 4 / Light Intensity:130
    Triger 4 / Light Intensity:130
  • Triger 5 / Light Intensity:160
    Triger 5 / Light Intensity:160
  • Triger 6 / Light Intensity:190
    Triger 6 / Light Intensity:190
  • Triger 7 / Light Intensity:230
    Triger 7 / Light Intensity:230
  • ss="col-md-3 marB1">Triger 8 / Light Intensity:255
    Triger 8 / Light Intensity:255

Timing Chart

Timing Chart

Filter Changer

Filter Changer Model

Use color filters to emit light at specific wavelengths.

PFBR-600SW-LLCF Filter Changer Model

  • Equipped with a multi-filter changer that holds five filters.
  • Filters can be changed manually and using external communication.
  • Easily replace filters by removing the front cover.
  • Filters available in six colors.

Filters available in six colors.

* Refer to the instruction guide for installing and setting filters.

A variety of filters are available with excellent heat resistance.
