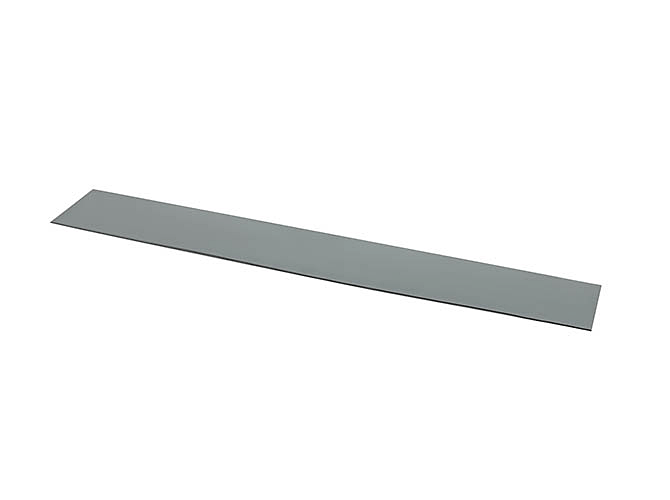

PL-BCF-255X45

PL-BCF-255X45 is a Polarizing Plates for BCF Series (Flood Light) series "BCF-255X45x".
"" class=""icn-catch marT2"">

Add to Watch List

Dimensions	W 269 mm x D 39.5 mm x H 0.75 mm
Conformed standards	RoHS, CE

Product Details Dimensions (mm) Downloads

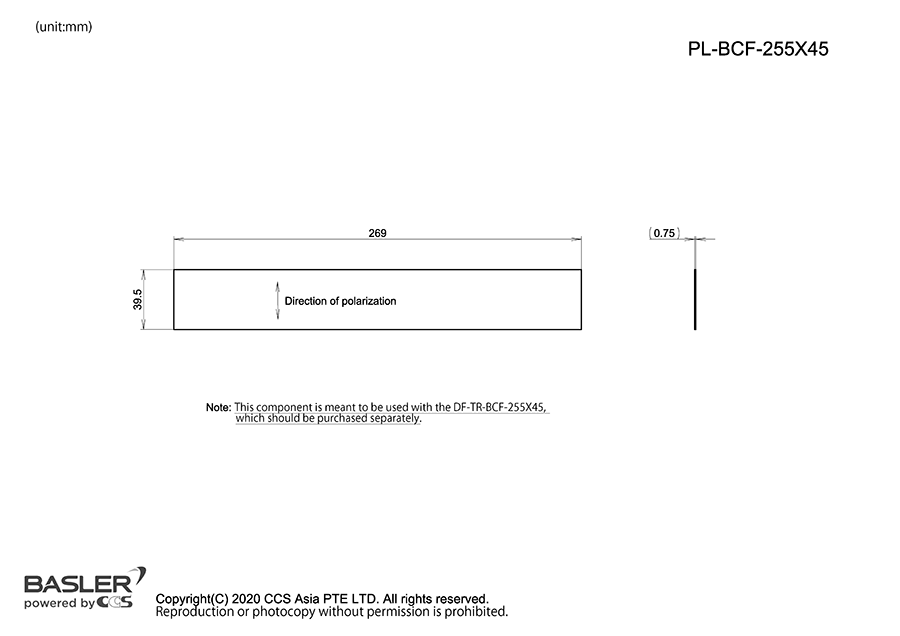

Dimensions (mm)

* Click to enlarge image.

Downloads

PDF Drawing	DXF Drawing	STEP Drawing
