LFV3-50X100RD-RA(A) / LFV3-50X100SW-RA(A) / LFV3-50X100BL-RA(A)

HOME > Products Information > Machine Vision Applications > Coaxial > LFV3 Series > LFV3-50X100RD-RA(A) / LFV3-50X100SW-RA(A) / LFV3-50X100BL-RA(A)

LFV3-50X100RD-RA(A) / LFV3-50X100SW-RA(A) / LFV3-50X100BL-RA(A)

Custom Order

110mm (W) x 94mm (D) x 58mm (H) coaxial light with a light emitting surface of 52mm x 102mm. Available colors: red (LFV3-50X100RD-RA(A)), white (LFV3-50X100SW-RA(A)), and blue (LFV3-50X100BL-RA(A)). 90-degree position change of a standard coaxial light illumination port.

Add to Watch List

LED color	LFV3-50X100RD-RA(A)：Red LFV3-50X100SW-RA(A)：White LFV3-50X100BL-RA(A)：Blue
Dimensions	W 110 mm x D 94 mm x H 58 mm
Input voltage	24 VDC
Power consumption	LFV3-50X100RD-RA(A) : 17 W max. LFV3-50X100SW-RA(A) : 20 W max. LFV3-50X100BL-RA(A) : 17 W max.

Product Details Dimensions (mm) Downloads

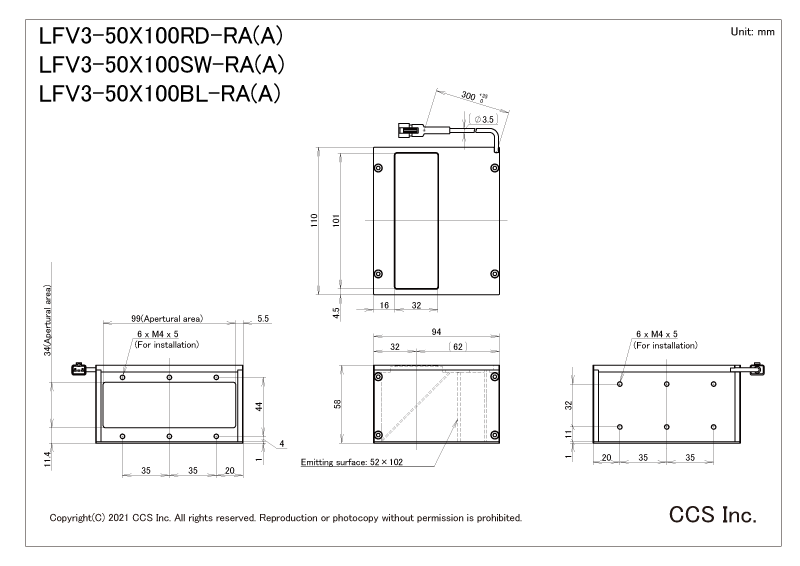

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog	PDF Drawing
