LFV3-70RD-RA(A) / LFV3-70SW-RA(A) / LFV3-70BL-RA(A)

Custom Order

84mm (W) x 120mm (D) x 78mm (H) coaxial light with a light emitting surface of 76mm x 73mm. Available colors: red (LFV3-70RD-RA(A)), white (LFV3-70SW-RA(A)), and blue (LFV3-70BL-RA(A)). 90-degree position change of a standard coaxial light illumination port.

Add to Watch List

LED color	LFV3-70RD-RA(A)：Red LFV3-70SW-RA(A)：White LFV3-70BL-RA(A)：Blue
Dimensions	W 84 mm x D 120 mm x H 78 mm
Input voltage	24 VDC
Power consumption	LFV3-70RD-RA(A) : 13 W max. LFV3-70SW-RA(A) : 19 W max. LFV3-70BL-RA(A) : 16 W max.

Product Details Dimensions (mm) Downloads

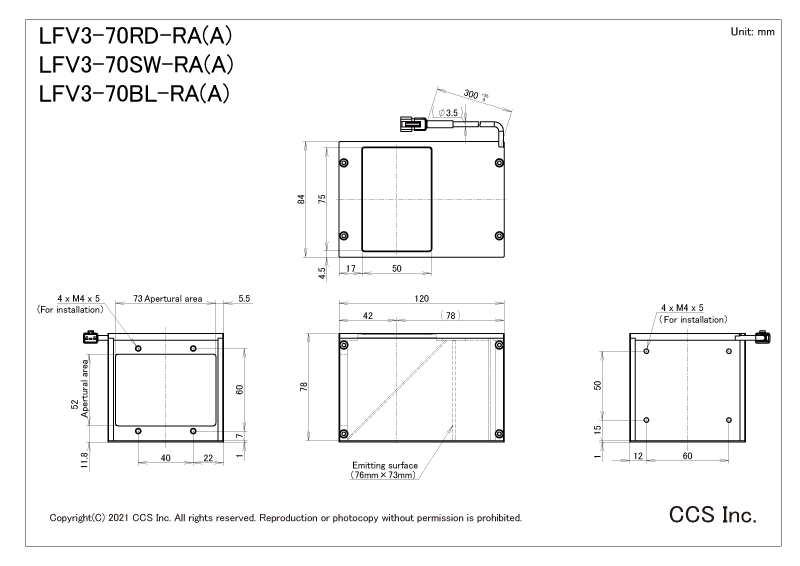

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog	PDF Drawing
