LFV3-100RD-RA(A) / LFV3-100SW-RA(A) / LFV3-100BL-RA(A)

Custom Order

110mm (W) x 148mm (D) x 105mm (H) coaxial light with a light emitting surface of 100mm x 102mm. Available colors: red (LFV3-100RD-RA(A)), white (LFV3-100SW-RA(A)), and blue (LFV3-100BL-RA(A)). 90-degree position change of a standard coaxial light illumination port.

Add to Watch List

LED color	LFV3-100RD-RA(A)：Red LFV3-100SW-RA(A)：White LFV3-100BL-RA(A)：Blue
Dimensions	W 110 mm x D 148 mm x H 105 mm
Input voltage	24 VDC
Power consumption	LFV3-100RD-RA(A) : 22 W max. LFV3-100SW-RA(A) : 27 W max. LFV3-100BL-RA(A) : 27 W max.

Product Details Dimensions (mm) Downloads

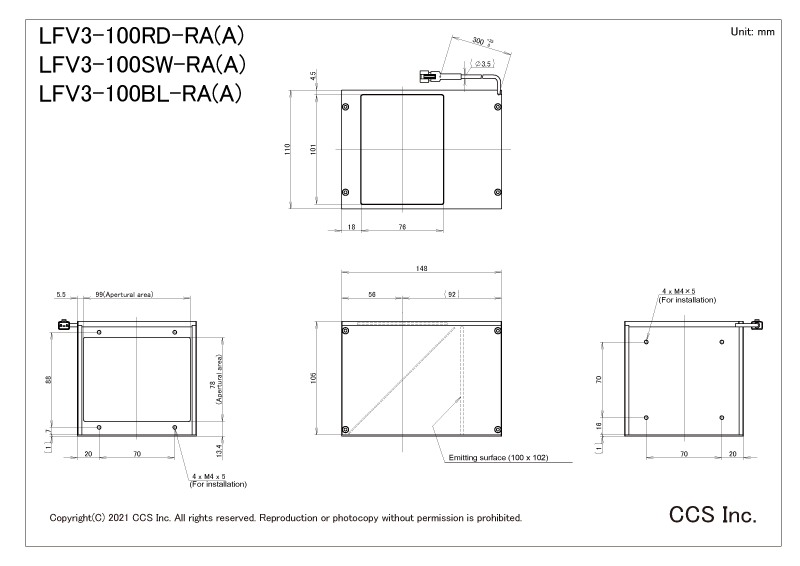

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog	PDF Drawing
