LFV3-130RD-RA(A) / LFV3-130SW-RA(A) / LFV3-130BL-RA(A)

HOME > Products Information > Machine Vision Applications > Coaxial > LFV3 Series > LFV3-130RD-RA(A) / LFV3-130SW-RA(A) / LFV3-130BL-RA(A)

LFV3-130RD-RA(A) / LFV3-130SW-RA(A) / LFV3-130BL-RA(A)

Custom Order

142mm (W) x 182mm (D) x 136mm (H) coaxial light with a light emitting surface of 130mm x 134mm. Available colors: red (LFV3-130RD-RA(A)), white (LFV3-130SW-RA(A)), and blue (LFV3-130BL-RA(A)). 90-degree position change of a standard coaxial light illumination port.

Add to Watch List

LED color	LFV3-130RD-RA(A)：Red LFV3-130SW-RA(A)：White LFV3-130BL-RA(A)：Blue
Dimensions	W 142 mm x D 182 mm x H 136 mm
Input voltage	24 VDC
Power consumption	LFV3-130RD-RA(A) : Contact us LFV3-130SW-RA(A) : 46 W max. LFV3-130BL-RA(A) : Contact u

Product Details Dimensions (mm) Downloads

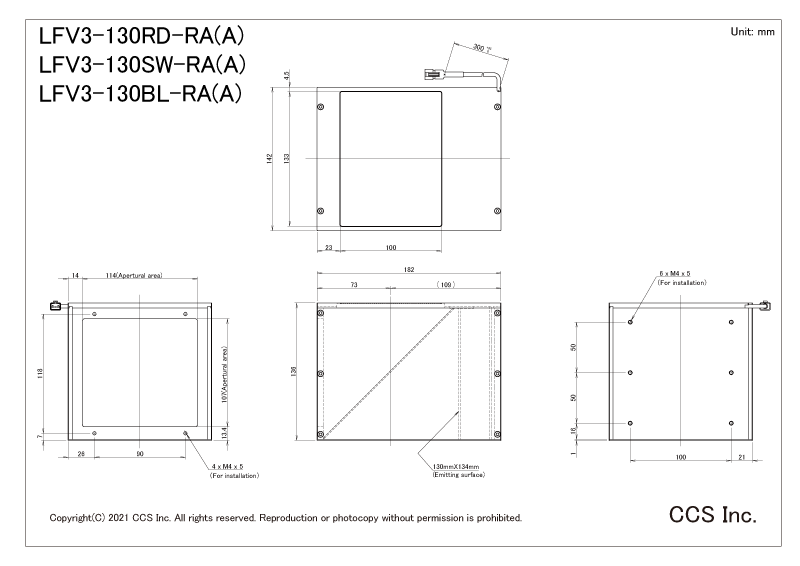

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog	PDF Drawing
