LAV-93RD2-CR25 / LAV-93SW2-CR25 / LAV-93BL2-CR25 / LAV-93GR2-CR25
- Custom Order

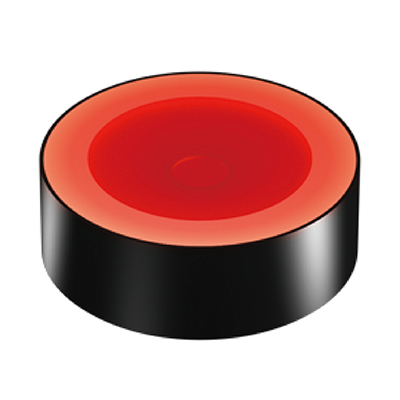

Diffused light and coaxial light have been integrated in one unit.

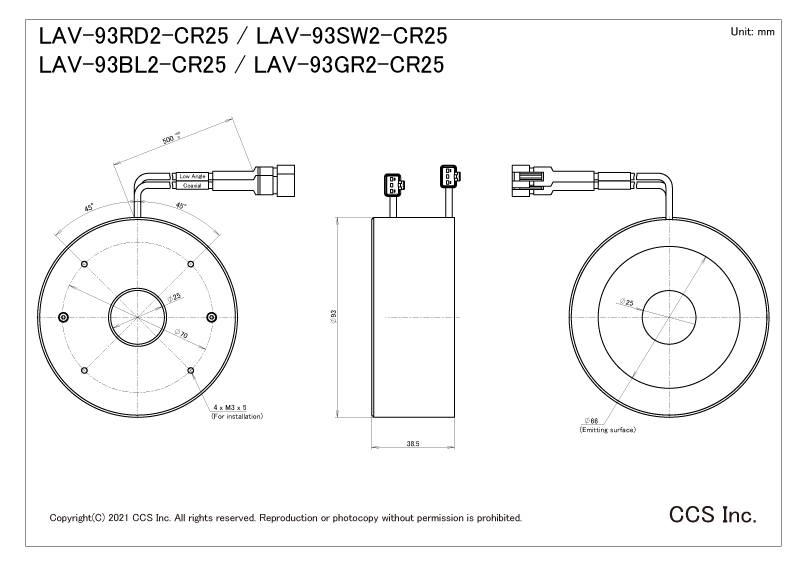

This light unit has an outer diameter of 93mm, an inner diameter of 25mm, a height of 38.5mm, and a light-emitting surface diameter of 66mm.
Available in 4 LED emission colors: red (LAV-93RD2-CR25), white (LAV-93SW2-CR25), blue (LAV-93BL2-CR25), and green (LAV-93GR2-CR25).
This is a made-to-order product. For queries and details, contact your CCS sales representative.
Changing the shape, Increased brightness, Changing the wavelength, etc.
