KT-MFU-54X40-HLV

Standard Product

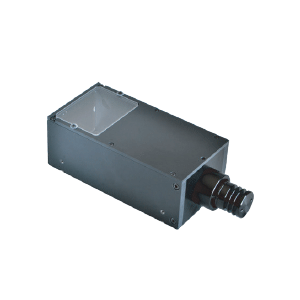

KT-MFU-54X40-HLV backlight unit.
KT-MFU Series are collimated backlight units that can be used in combination with the HLV series spot lighting equipment.
They are capable of higher power light emission than MFU series.
Measures W 66mm x D131 to 166mm x H48mm.

Add to Watch List

Dimensions	W 66 mm x D 131 to 166 mm x H 48 mm
Case material	Aluminum alloy, Steel sheet, Resin
Conformed standards	RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Weight	400 g max.
Accessories	Aperture (φ0.5 mm) x 1, Aperture (φ1.0 mm) x 1, Aperture (φ2.0 mm) x 1, Set of screws (M3 x 3 mm black) x 3, M3 hexagonal wrench x 1 The φ1.0 aperture is fitted with a diffusion plate at the time of factory shipment. Replacing with one of the additional apertures supplied allows the light quantity (high / low) and light distribution (wide / narrow) to be changed.
Notes	Spot lighting equipment for light units is sold separately. Compatible Lights : HLV3-22RD-1C / HLV3-22SW-1C / HLV3-22BL-1C / HLV3-22GR-1C, HLV3-22RD-2C / HLV3-22SW-2C / HLV3-22BL-2C / HLV3-22GR-2C, HLV3-22RD-4C / HLV3-22SW-4C / HLV3-22BL-4C / HLV3-22GR-4C Please use the recommended light units for each HLV product.

Product Details Dimensions (mm) Downloads

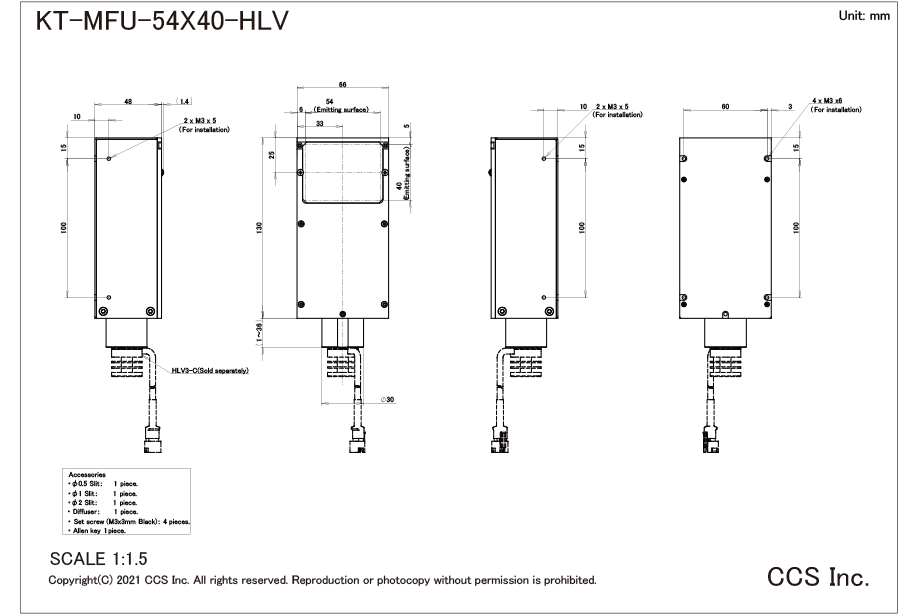

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog	PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info	3D-CAD	Operating Procedures
