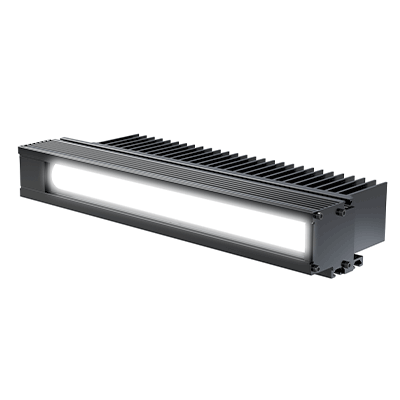

LN2-IS-75SW

Standard Product

Bi-directional angled type white line light units.
The light-emitting surface measures 75 mm x 30 mm.

Add to Watch List

LED color	White
Correlated color temperature	6,500 K typ.
Dimensions	W 118.2 mm x D 60 mm x H 119.5 mm
Power consumption	26.0 W max.
Cable length	300 mm
Case material	Aluminum alloy, Steel sheet, Resin
Input connector	Metal connector PRC04-12A26S-37M18
Number of light unit circuits	1
Conformed standards	CE, UKCA, KC, RoHS, IEC 62471 (Mod risk)
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	976 g
Accessories	User Manual
Notes	For details on control units and cable combinations, please refer to the 'Compatibility of Lights and Control Units ' tab.

Product Details Dimensions (mm) Compatibility of Lights and Control Units Downloads

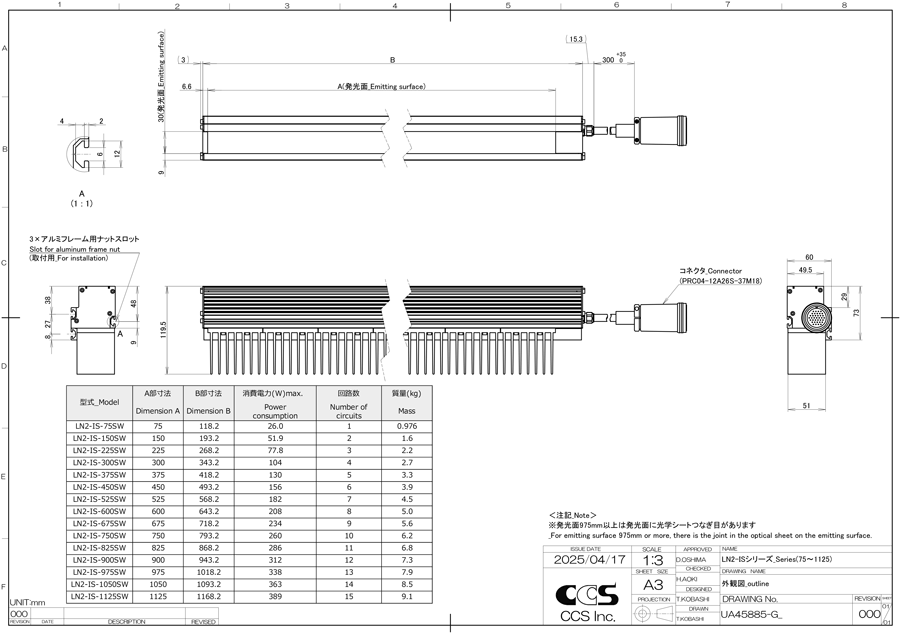

Dimensions (mm)

* Click to enlarge image.

Compatibility of Lights and Control Units

The combination of the compatible connector and the control units differs depending on the emitting surface size.

Emitting Surface Size	Number of Connectors (Number of Circuits)	Recommended Cables	Recommended Control Units
75 mm to 525 mm	CH1 (1 to 7)	QCBM Series^*	PSCC-30048(A)^*

* PSCC-30048(A) and QCBM Series can be used only for models with 7 or fewer circuits.

Downloads

PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info	3D-CAD
