F-LP920-82

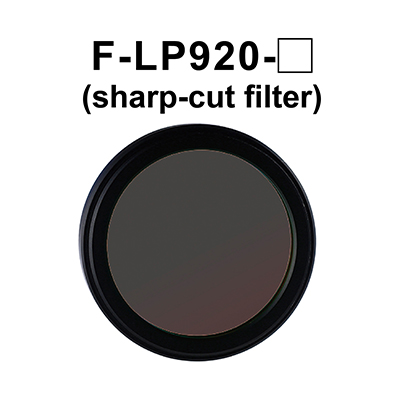

Sharp-cut filter for infrared LED Light Units.
Blocks the light of 930 nm or shorter and transmits the longer wavelengths.
Compatible with a lens filter thread diameter of M82 x P0.75 mm.

Add to Watch List

Dimensions	Outer diameter 84 mm, Inner diameter 77.5 mm, Height 8 mm
Screw hole diam. x Screw pitch	M82 x P0.75
Useful range	930 to 1,100 nm
Wavelength tolerance	+/-10 nm
Peak transmission	>90 %
Cut-on wavelength (50% transmission)	920 nm
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Lens material	Glass

Product Details Dimensions (mm) Downloads

Dimensions (mm)

* Click to enlarge image.

Downloads

PDF Drawing	DXF Drawing	Pamphlet	User Manual
