Solution for Appearance Inspection of Glossy Three-Dimensional Workpieces
Achieves inspection of foreign objects and surface irregularities on three-dimensional, glossy workpieces that are difficult to inspect using conventional imaging methods, through a combination of custom lighting and photometric stereo. Compatible with moving objects.
Features
- Segmented ring lights struggle to evenly illuminate three-dimensional shapes.
This solution overcomes that challenge by emphasizing foreign objects and uneven areas on the workpiece, delivering clear and accurate imaging. - It is possible to inspect unevenness and dirt by one light
- Can be customized according to the requirements
- Compatible with moving objects Compatible with moving objects
- The size of the light can be customized according to the requirements.
- Custom lights with emission surfaces of 300×300 mm, 200×200 mm, and 150×150 mm can be manufactured in the same shape as the standard LFXV Series flat dome lights.
Please contact us for more information.
Imaging Examples
Metal Parts

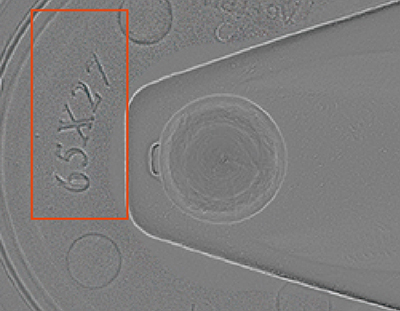

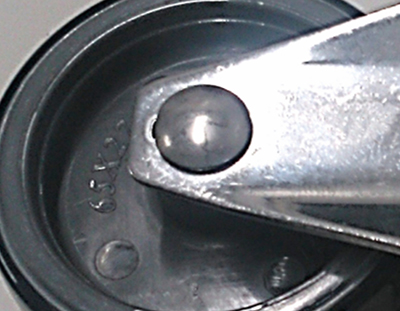

Engraved characters that are difficult to image can be clearly enhanced
Metal Parts

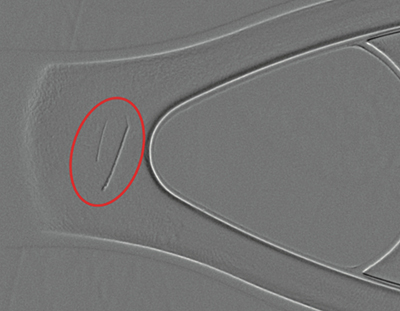

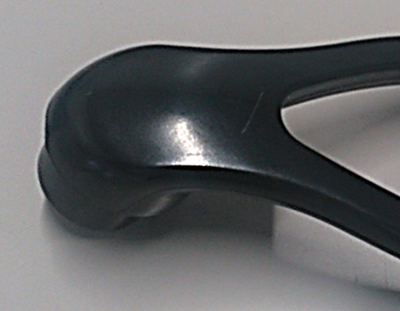

Surface irregularities on complex-shaped workpiece can be extracted and clearly imaged
Image Comparison with the HPR2-DV Series Segmented Ring Lights

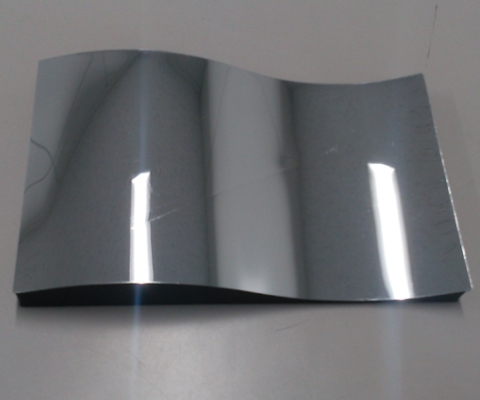

Imaging Examples: Scratch and Dirt Inspection of Specular Surfaces
Series

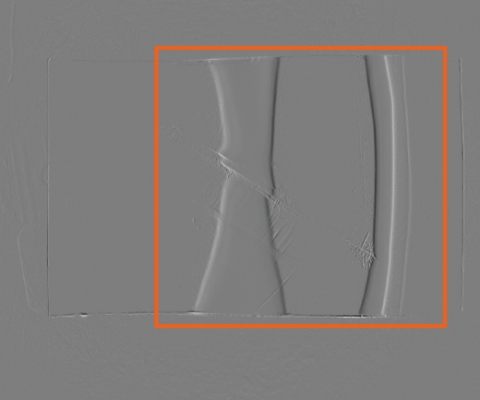

Reflections of the ring light on the surface cannot be canceled.
Series

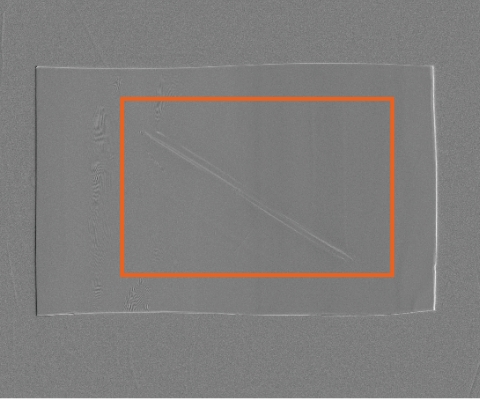

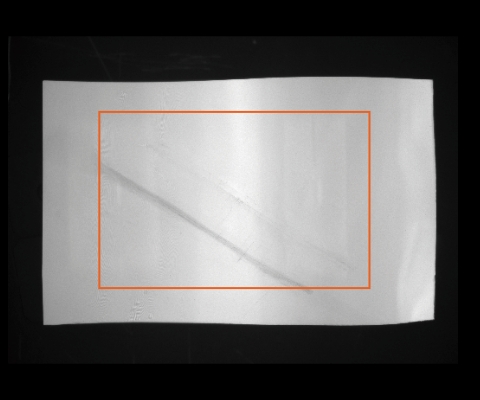

Reflections on the surface can be canceled, and only uneven parts can be emphasized.

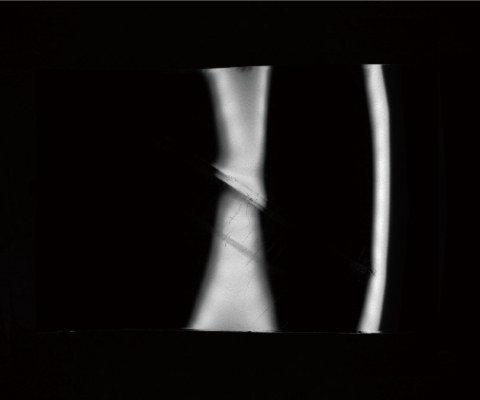

Only the areas where the ring light is reflected appear bright, making inspection difficult
Bright and uniform imaging makes it possible to detect dirt

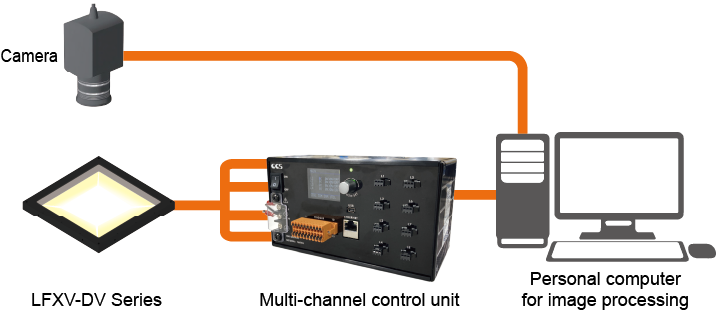

Example System Configuration
Application Example for Moving Workpieces

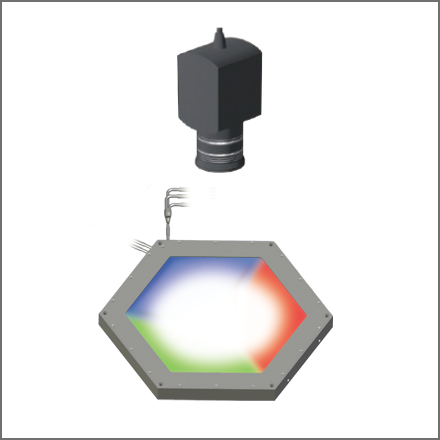

LFXV-RGB × Prism-Based Color Camera
By separating the captured image into individual RGB color channels, it is possible to obtain three directions of information from a single image. This enables the acquisition of the images required for photometric stereo in just one shot.

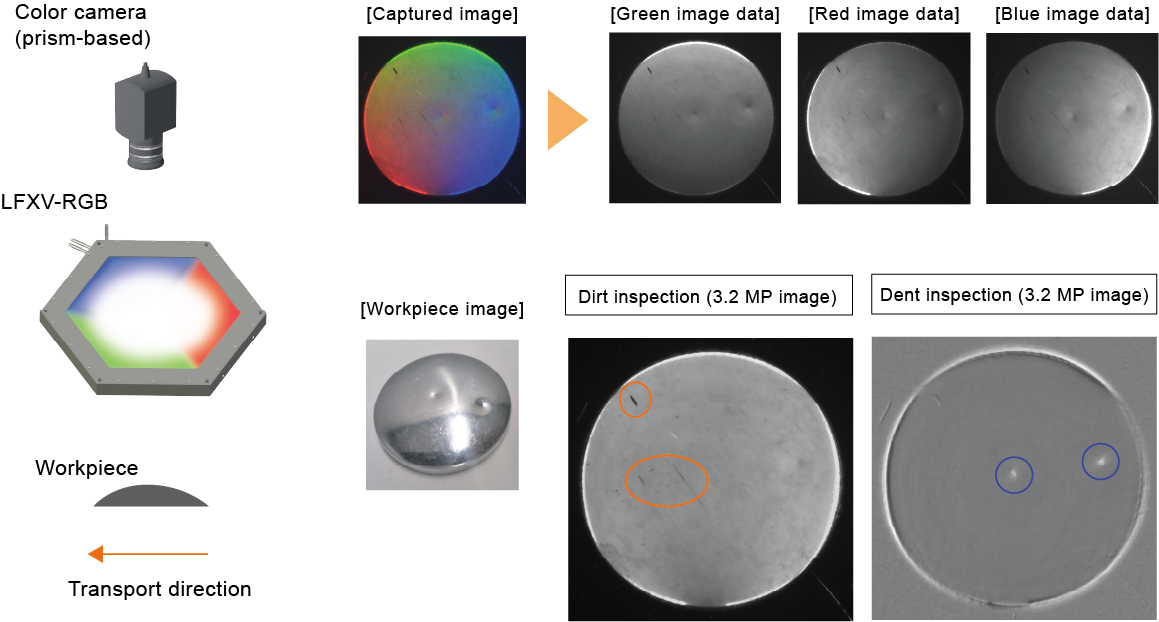

Imaging Examples: Metal Button Appearance Inspection
- The size of the light can be customized according to the requirements.Please contact us for more information.

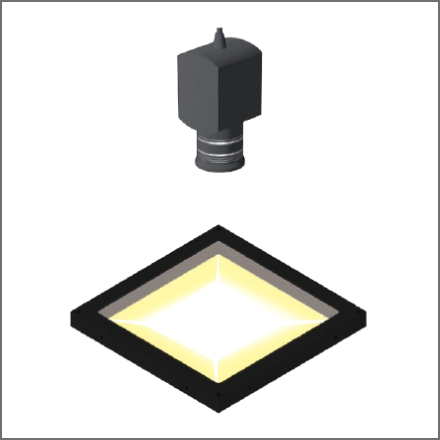

LFXV-DV × Quad Shutter Control
By combining photometric stereo using the segmented flat dome light LFXV-DV with Sony’s IMX900 image sensor featuring Quad Shutter Control, high-quality images with minimal motion blur can be acquired even for moving workpieces.
Four different exposure times and exposure start timings can be configured within a single frame. Synchronization with the illumination enables ultra-high-speed acquisition of four images captured under different conditions.

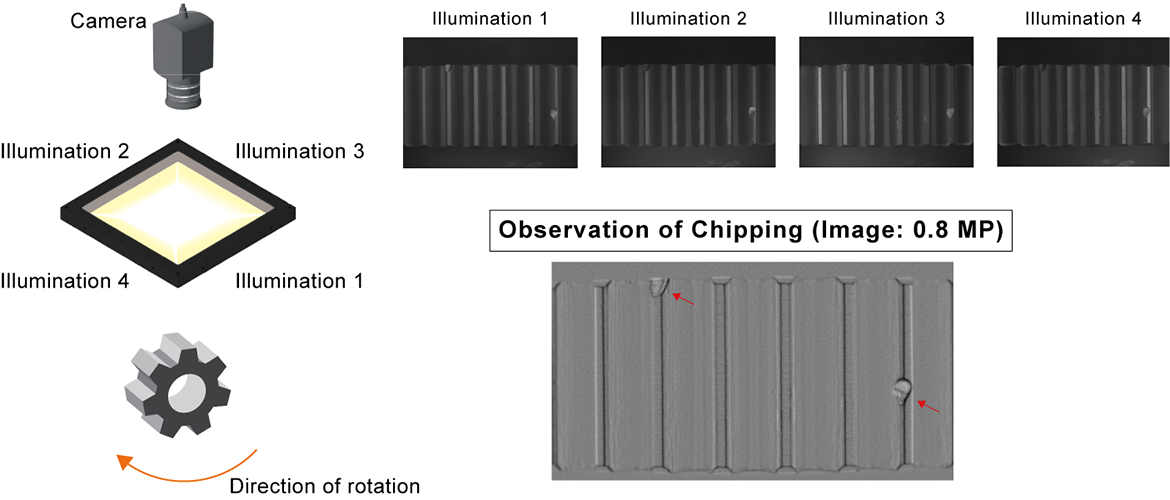

Imaging Examples: Appearance Inspection of Metal Gears
