FCB-A-□-SM2

Extension cables and Flying leads cables for CCS AItec(LN-GA/LN-HA) FCB-A-□-SM2.
Lengths: 2, 3, 5 and 10 m (□ = 2, 3, 5, 10). SM connector(2-pin).

LN-GA Series LN-HA Series

Add to Watch List

Cable length	Lengths: 2, 3, 5 and 10 m (□ = 2, 3, 5, 10)
Minimum bending radius (reference value)	14.8 mm
Connectors (Control Unit side)	SM connector (2-pin, plug)
Connectors (Light Unit side)	SM connector (2-pin, socket)
Conformed standards	CE, UKCA、RoHS
Operating temperature and humidity	Temperature: 0 to 40℃, Humidity: 30% to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: 0 to 50℃, Humidity: 30% to 85%RH (with no condensation)

Product Details Dimensions (mm) Downloads

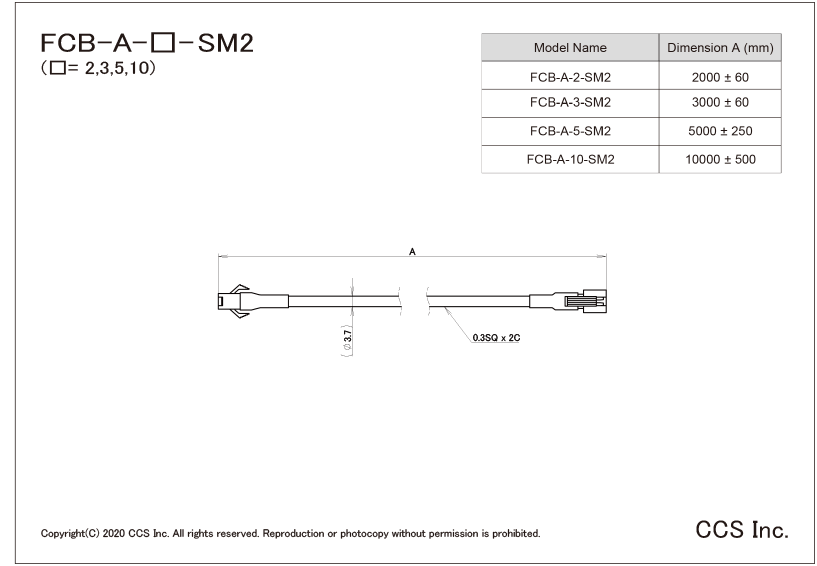

Dimensions (mm)

Downloads

PDF Drawing	DXF Drawing
