Analyzes wavelengths to visualize subtle differences in color, materials, and foreign materials
Hyperspectral Imaging
Hyperspectral imaging is a technology that uses a hyperspectral camera with high wavelength resolution and corresponding light to acquire images.
Challenges to be solved with hyperspectral imaging
- Analyze the reflection spectrum of the object
- Achieve high-precision color identification that is not possible with standard industrial cameras
- Classify multiple materials, detect foreign materials, and analyze components
Imaging Examples
Imaging Examples: Color identification of plastic products
Classify subtle color differences with a hyperspectral imaging light

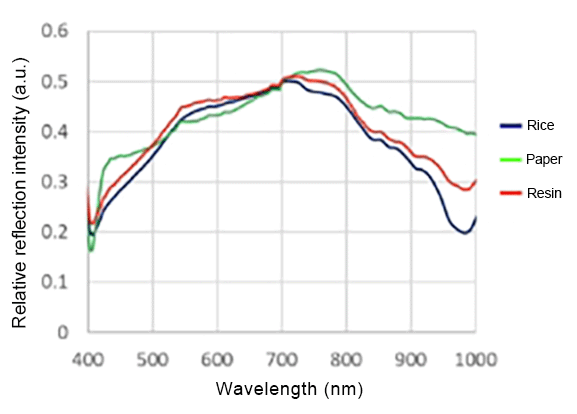

Imaging Examples: Inspection of foreign materials in white rice
Blue: Rice, Green: Paper, Red: Resin
Classify foreign materials of the same color
Imaging Examples: Classification of plastic materials
Blue: PS, Green: PET, Red: PP
Classify the differences
of the three types of materials

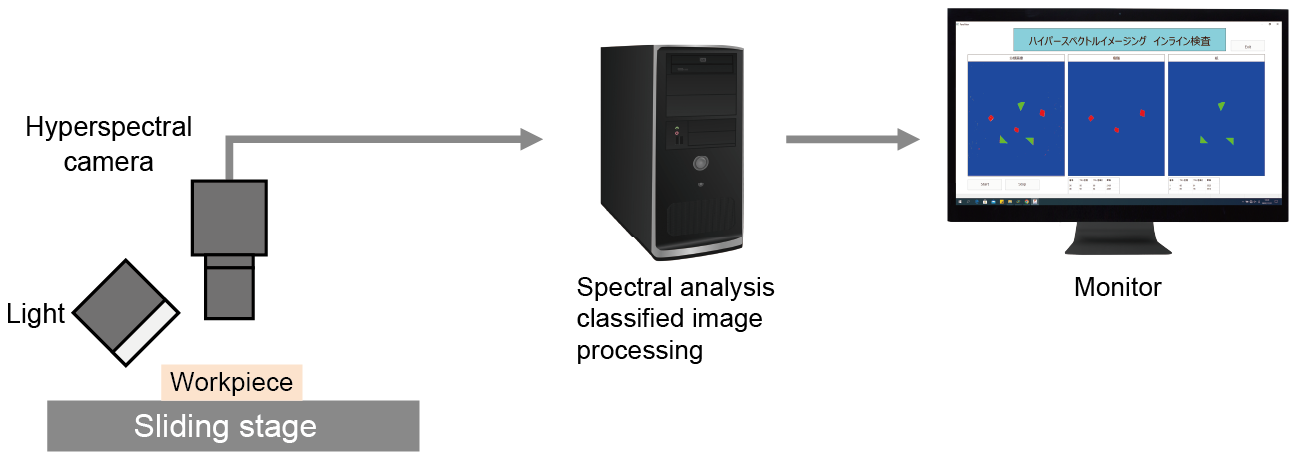

Example System Configuration
* System configuration may vary depending on the equipment used.
Lights for Hyperspectral Cameras
LED lights for hyperspectral cameras (custom-order)
- Achieve a wide emission spectrum of 400-1000 nm with LED lights
- Significantly enhance the light output in the near-infrared range to match the sensitivity characteristics of hyperspectral cameras
- Wavelengths, shape, and size of the lights can be customized according to the applications

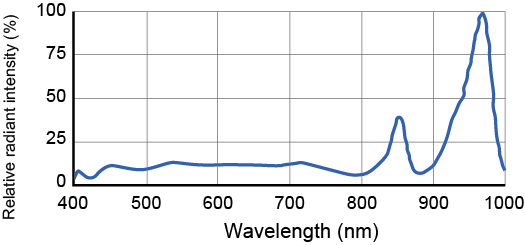

Output wavelength and wavelength range
High-output LED light for hyperspectral cameras LNSP-FN Series (custom-order)
- High-output LED light suitable for high-speed inline inspection
- Available in visible light type (400-1000 nm) and near-infrared light type (900-1700 nm)
Visible light type

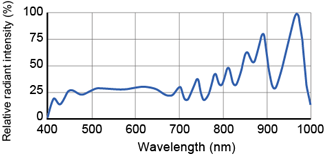

Output wavelength and wavelength range (updated on March 17, 2025)
Near-infrared(NIR) light type
Output wavelength and wavelength range
Lights for Hyperspectral Cameras CIR Series
- Wavelength characteristics from visible to SWIR wavelengths (around 2500 nm)
- Achieve long life with special halogen lamps
- Achieve long life with special halogen lamps
Output wavelength and wavelength range
Lights for Hyperspectral Cameras (Effilux)
- Compatible with the visible wavelength range (approximately 400–900 nm)
- The illumination area can be adjusted by changing the position of the focusing lens inside the light source
- IP67-rated models and models equipped with cylindrical lenses are also available

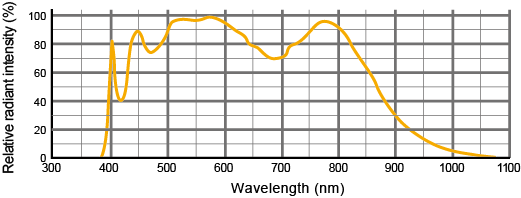

Output wavelength and wavelength range
Hyperspectral Camera
When conducting inspections using hyperspectral imaging, a hyperspectral camera with high spectral resolution is essential.
At CCS, we offer a wide range of hyperspectral cameras from various manufacturers.
Our lighting consultants can also assist you in selecting the most suitable peripheral equipment for your application.
