HL2 Series
Three models are available according to illuminating distance, illuminating range, and uniform region to achieve optimum illumination.
Installable on: HLV3-22-1, HLV3-22-2
- Condenser lens
Features
Select lenses according to illuminating distance, illuminating range, and uniform region to achieve optimum illumination, even in imaging environments in which the workpiece is far away.
Dimensions
HL2-25-P
HL2-50-P
HL2-M50-C
Polarizing filter (sold separately)
Many sizes available for condenser lens.
Use in combination with another one installed on the camera lens.
- For HL2-25-P Model: PL-30/PL-30-NL
(with a screw to lock the polarizing direction) - For HL2-50-P/HL2-M50-C Model: PL2-55-NL
(with a screw to lock the polarizing direction)

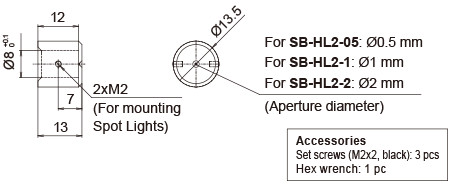

Light aperture adapter (sold separately)
Attach the light aperture adapter to the HLV3 Spot Light to change the directivity of emitted light.
When combined with a condenser lens, use the light aperture adapter to make fine adjustments to the illuminating distance and range.
