RB-HLV Series

Dedicated adapter for connecting spot lighting to PD4-A Series (digital control units).
Both 24 V lighting and spot lighting can be used with one 24 V lighting control unit.

Features

■Brightness equivalent to when using spot lighting control unit

Enables use of spot lighting with brightness equivalent to when using spot lighting control unit (PJ2 Series, PJ Series).

■Four models available to suit different types of spot lighting

We offer models compatible with spot lighting that has a rated input current of 1000 mA,
which was not supported by the PD3 Series.

■Significantly improved response speed for external control

Enables use of spot lighting with response speed equivalent to 24 V lighting.

■Compact design

Compared to the conventional spot lighting control unit,
the RB-HLV Series features a more compact size to save space in inspection environments.

save space in inspection environments

Comparison with the dedicated spot lighting control unit PJ2-1505-2CA-PE (mm)

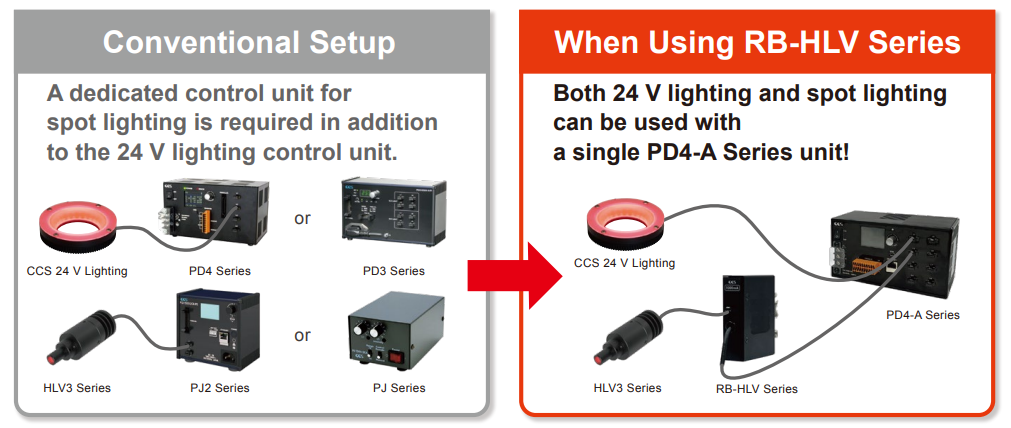

■Simplified setup for lighting and control unit

When using both 24 V lighting and spot lighting, there is no need to prepare a separate control unit for spot lighting.
This reduces the setup time for both the lighting and control unit.

Simplified setup for lighting and control unit

This product is dedicated to the PD4-A Series. It cannot be used with other products.

Notes

・ There are restrictions on compatible lighting depending on the model. Lighting not listed below cannot be connected.

Model RB-HLV-275 RB-HLV-385 RB-HLV-700 RB-HLV-1000
Compatible Lighting*1

HLV3-14□□（-HU）

HLV3-22□□-1
HLV3-22□□-1Ｃ

HLV3-22□□-2
HLV3-22□□-2-1220
HLV3-22□□-2C
HLV-22IR105
HLV-22IR120
HLV-22IR130
HLV-22IR145
HLV-22IR155
HLV-22IR165
HLV2-24UV3-365
HLV2-24VL3-385
HLV2-24VL3-395
HLV2-24VL3-405

HLV3-22□□-4M
HLV3-22□□-4S
HLV3-22IR860
HLV3-22IR950-SP
HLV3-22□□-4C
HLV3-22□□-4-NR

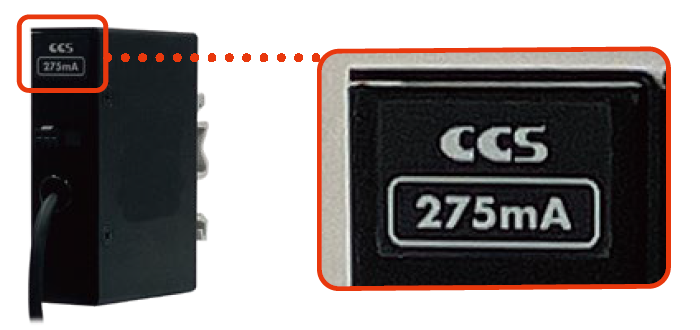

・ Please check the rated output current indicated on the upper front of the product.

Please check the rated output current indicated on the upper front of the product.

・ Branch cables cannot be used on either the lighting or control unit side.

・ Up to 4 units of this product can be connected to one PD4-A Series unit*2.

*1 □□ in the model name indicates the LED color. (RD: Red, SW: White, BL: Blue, GR: Green)
*2 Ensure that the total power consumption does not exceed the maximum output of the PD4-A Series.
