UV2 Series

These UV Light Units provide superior cost performance.
25 times higher output than the previous models(Comparison with Bar Lights).
For replacement of black lights.

Narrow: The irradiation is concentrated in a narrow range using lenses.
Wide: The irradiation covers a wide range. Lensless type.

Download Pamphlet PDF

Features

Using high output UV-LEDs

The high output UV-LEDs achieved enhanced output power significantly higher than that of conventional products.

Comparison of imaging with conventional product

Image comparing output of UV Lights by application

Narrow type to irradiate a narrow area

The product lineup includes wide type and narrow type Light Units to irradiate a respective extent. Select an optimum Light Unit to meet the purpose of use.

Comparison of output between a high output UV Light and a black light

※The data included is for reference only and the results may vary.

Example configuration

Ring Lights that use high output UV-LEDs. Bar types and spot types are also available. Select your format to match your needs.

LDR2-100UV2-365-W

Characteristics/Data

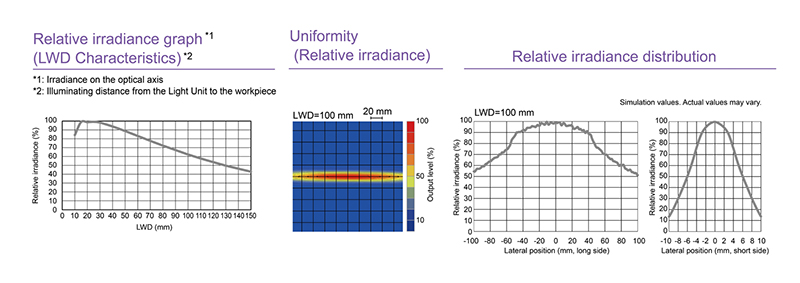

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

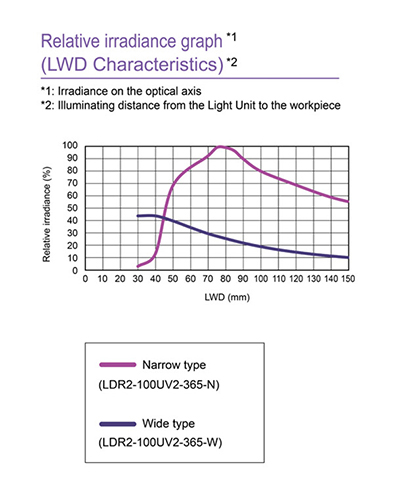

LDR2-100UV2-365-N

At short distances, uniformity of irradiation from narrow type Light Units is reduced.
This may affect imaging depending on the type of workpiece.

LDR2-100UV2-365-W

LDL-205X12UV2-365-N

At short distances, uniformity of irradiation from narrow type Light Units is reduced.
This may affect imaging depending on the type of workpiece.

LDL-205X12UV2-365

LN-195UV2-365(Light condensing)

HLV2-24UV2-365

LED properties

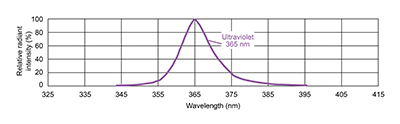

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

Please contact your CCS sales representative.

Imaging Example

Imaging of scratches by magnetic particle inspection

Imaging of grease application on a bearing

Imaging of text at the bottom of an aluminum can

Imaging of packing tape on film
