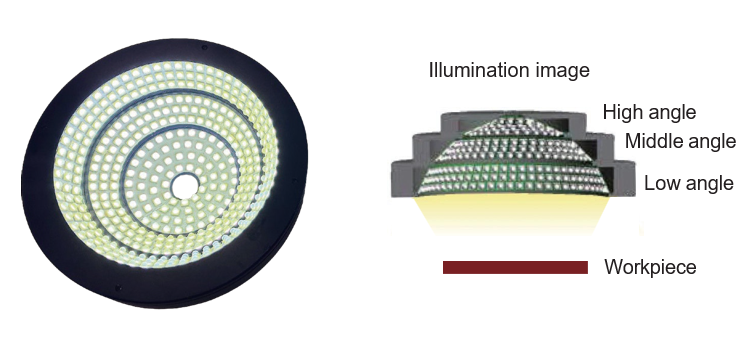

Multi-stage Ring Light

Since the irradiation pattern can be switched to match the inspection items, this enables a space-saving design for multiple inspection items.
We also offer systems capable of simultaneously capturing images with different lighting patterns.

Features

• For applications such as inspecting printing, scratches, and uneven surfaces on metal parts
• Switch between four lighting patterns: high-angle, middle-angle, low-angle, and full lighting
• LED ring lights can be stacked without leaving clearance using CCS's proprietary design, which minimizes the impact of lighting pattern changes on images
• Can be customized to meet specific inspection requirements, such as the size of the camera window and the light dimensions

Multi-stage Ring Light

custom-order

We also offer custom designs for light sizes, camera windows, and configurations with two, four, or more tiers. Please feel free to contact us.

Imaging Examples

Visual inspection of a resin housing componen

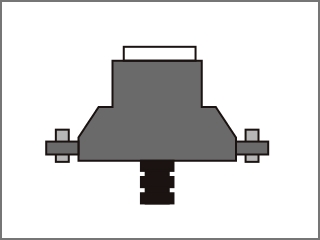

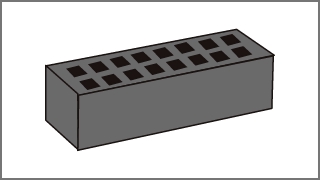

Workpiece

Resin housing component

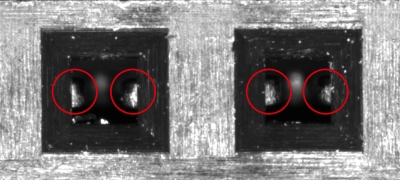

Lighting pattern:
high angle only

Enables detection of the presence or absence of terminals inside holes.

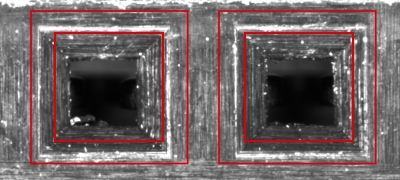

Lighting pattern:
middle angle only

Hole edge shapes visible

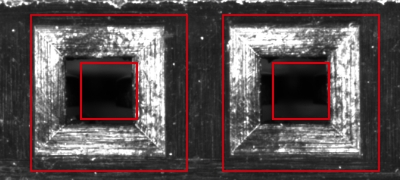

Lighting pattern:
low angle only

Tapered surfaces inside the holes are visible

Visual inspection of a metal component

Workpiece

Metal housing component

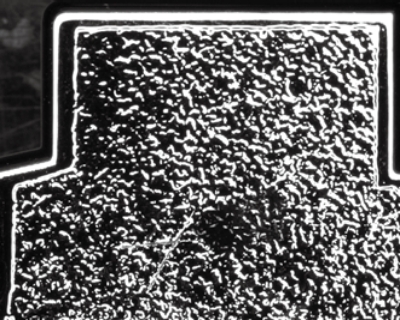

Lighting pattern:
middle angle only

Surface roughness is visible

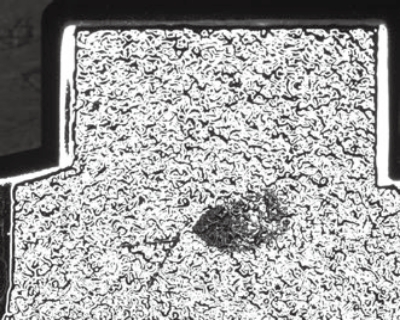

Lighting pattern:
middle angle only

Surface contamination is visible

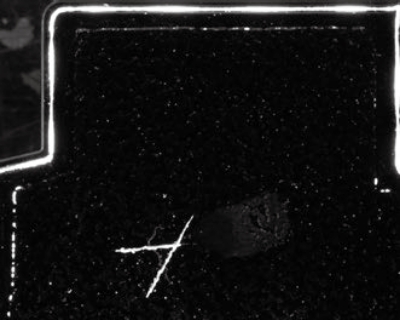

Lighting pattern:
low angle only

Surface scratches are visible

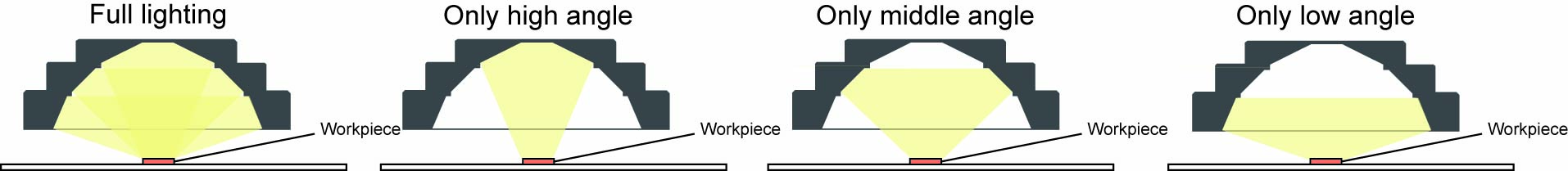

Lighting pattern switching example
