STU-3000 Series

This unit can be connected to any one of the PD2-1012/PD2-3012/PD2-5012/PD2-3012-2 and PD2-1024/PD2-3024/PD2-5024/PD2-3024-2 Control Units. The optical pulse width can be controlled between 0.01 and 99.99 ms at increments of 0.01 ms.

  • Strobe Unit


  • Enables use of continuous lighting as strobe lighting.
  • You can set strobe lighting time from 0.01 to 99.99 msec.
  • External trigger signal provides ON/OFF control of power at the specified pulse width and strobe lighting of LED Lights.

Example connection

Refer to the “Instruction Guide” for details.

External signal
Example connection

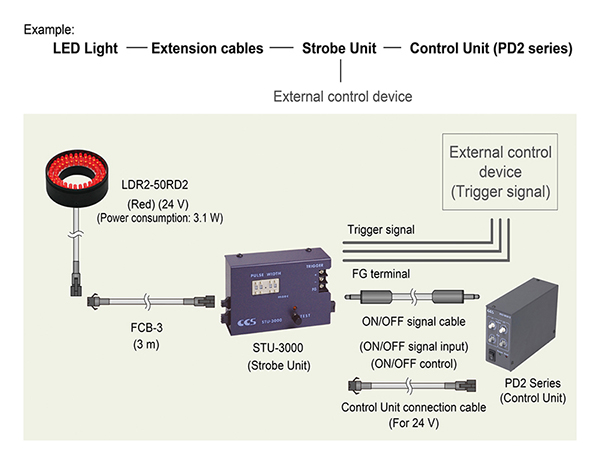

Example system configuration
