PD3 Series

Equipped for continuous lighting, ON/OFF lighting, and strobe lighting modes all in a single unit.
There are Parallel, EIA-485, and Ethernet communications models for external control.

Download Pamphlet PDF

Features

  • Each unit supports continuous, ON/OFF and strobe lighting. (Strobe lighting is unavailable for HLV3/HLV2 series spot lights.)
  • Digital display enables set values to be easily checked.
  • 256 stage dimmer settings.
  • AC input types and DC input types available.
  • DIN rail installation is standard.
  • Select from 3 channel, 4 channel or 8 channel models.
  • There are four types of capacity: 3 channel/28*1 W, 3 channel/48 W*1*2, 4 channel/46 W*3, and 8 channel/95 W*3.
  • *1 Can be connected only with 24 V light.
  • *2 Lineup includes only DC-input control units.
  • *3 Can be connected with both 24 V light and HLV3/HLV2 series spot lights.

A Wide Ranging Lineup is Available and Custom Orders are Accepted

Parallel type

The parallel type has the fastest switching for settings. Perform high-speed control through batch transmission.
(External trigger signal input is available as an NPN input model (standard) or PNP input model (custom order product: PD3-PNP)

Ethernet types

Ethernet types support standard TCP/IP and UDP/IP protocols.
(Models with keep-alive functions (custom order: PD3-EIK) are available)

Keep-alive functions monitor
Keep-alive functions monitor the validity of the connection of the machine to the network, wherein to prevent the connection from dropping, a signal is periodically sent between machines.

EIA-485

The EIA-485 type can individually manage units using multi-drop wiring. Can manage up to 4 units.

PWM frequency

PWM frequency is available in 125 kHz (standard) and 500 kHz (custom order: PD3-500).

Example System Configuration

Example System Configuration

Example System Configuration

Lighting Connection Example

Lighting Connection Example

Example Configuration

Refer to the instruction guide for more information.

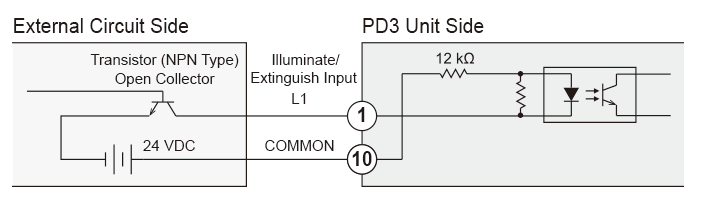

Connection Example

NPN Input Model Sink Type（NPN）

Connection Example　NPN Input Model Sink Type（NPN）

PNP Input Model Source Type（PNP）

Connection Example　PNP Input Model Source Type（PNP）

Connection Specifications (Per 1 Terminal)
Rated Input Voltage Max. Input Voltage Photocoupler
ON Voltage / ON Current		 Photocoupler
OFF Voltage / OFF Current
24 VDC 26.4 VDC 14.4 VDC or more / 1 mA or more 5 VDC or less / 0.4 mA or less
Trigger Principle Setting Switch Input Signal Photocoupler ON / OFF Mode Strobe Mode
HIGH HIGH OFF LED ON LED ON for Set Time
LOW ON LED OFF No Change
LOW HIGH OFF LED OFF No Change
LOW ON LED ON LED ON for Set Time

External Signal Connection Example (Parallel Type)

NPN Input Model Sink Type（NPN）

External Signal Connection Example (Parallel Type)　NPN Input Model Sink Type（NPN）

PNP Input Model Source Type（PNP）

External Signal Connection Example (Parallel Type)　PNP Input Model Source Type（PNP）

Connection Specifications (Per 1 Terminal)
Rated Input Voltage Max. Input Voltage Photocoupler
ON Voltage / ON Current		 Photocoupler
OFF Voltage / OFF Current
24 VDC 26.4 VDC 14.4 VDC or more / 1 mA or more 5 VDC or less / 0.4 mA or less
  Input Signal Photocoupler Data
Sink Type HIGH OFF 1
LOW ON 0
Source Type HIGH ON 0
LOW OFF 1

Custom Order Example

The parallel type has the fastest switching for settings.
Perform high-speed control through batch transmission.

External trigger signal input is available as an NPN input model (standard) or PNP input model(custom order product: PD3-PNP)

外部トリガー信号接続例　PNP入力モデル ソースタイプ（PNP）

Ethernet types support standard TCP/IP and UDP/IP protocols.

Models with keep-alive functions (custom order: PD3-EIK) are available

Keep-alive
Keep-alive functions monitor the validity of the connection of the machine to the network, where in to prevent the connection from dropping, a signal is periodically sent between machines.

Lineup of Models with 500 kHz PWM Frequency (Custom Order Products)

When selecting a digital power supply, consider using the higher frequency type. Power supplies with a PWM frequency of 500 kHz can be made to order. Contact our local sales office for details.

Introducing High Frequency Power Supplies (Custom Order) PD3-10024-8 Series

  • PWM Dimmer Control (500 kHz)
  • 95 W Capacity (EL Connector: 1 Channel)
  • AC Input
  • 3 types of external control
    • Parallel communication
    • Ethernet communication (TCP/IP UDP/IP)
    • EIA-485 communication

PD3-10024-8-PI-500
(Parallel type)

PD3-10024-8-PI-500(Parallel type)

PD3-10024-8-EI-500
(Ethernet type) (TCP/IP UDP/IP)

PD3-10024-8-EI-500(Ethernet type) (TCP/IP UDP/IP)（TCP/IP UDP/IP）

PD3-10024-8-SI-500
(EIA-485 type)

PD3-10024-8-SI-500(EIA-485 type)

Effect of PWM Frequency versus Brightness

Effect of PWM Frequency versus Brightness

Built to order

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Option

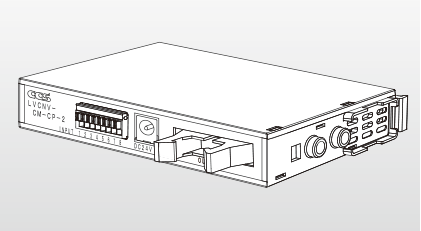

Trigger Voltage Level Conversion Unit (custom order)　LVCNV-CM-CP-2-MG-WOC

  • Can be used when performing trigger input from a device with 3.3 V, 5 V or 12 V output (PCB, etc.).
  • It can also be used when performing trigger input using a contact signal such as a relay.

Be sure to prepare an AC adapter with 24 V output separately as a control unit source.

Trigger Voltage Level Conversion Unit (custom order)　LVCNV-CM-CP-2-MG-WOC

Connection Example

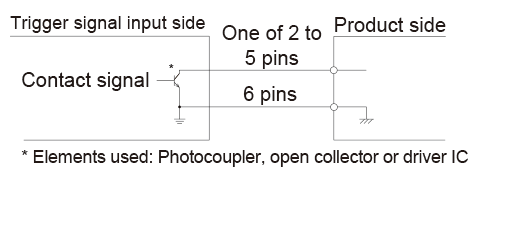

When driving with non-voltage contact

When driving with non-voltage contact

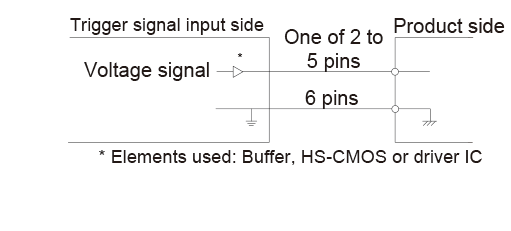

When driving with high voltage signal

When driving with high voltage signal

When the trigger signal to this product is set to High or Open (non-conducting), the trigger signal output from this product turns ON.
When it is set to Low or Short (conducting), the trigger signal output is turned OFF.

custom-made
This product is custom-made.
Contact our local sales office for details.
