LN2-NE / LN2-FA Series

Convergent type high power line lighting.
Maximum illuminance of 5 million lx* with natural air cooling.
Two types are available with different illumination structures.
LN2-NE (light working distance/LWD less than 65 mm), LN2-FA(LWD 65 mm or more).

* When used with LN2-NE-300SW at 40 mm illuminating distance.

Features

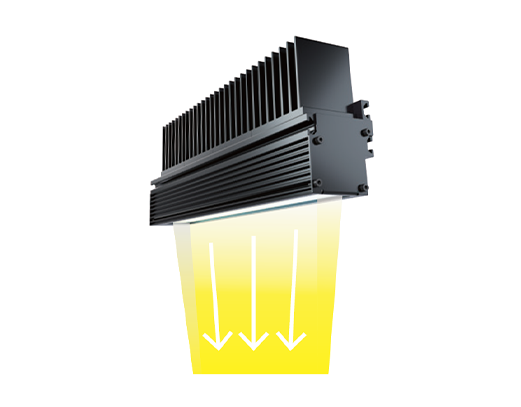

LN2-NE_FA_Illumination Structure

・Illumination is configured to target a specific location

・Maximum illuminance of 5 million lx* with natural air cooling



* Measured values at 40 mm illuminating distance using LN2-NE-300SW (not guaranteed values).

Application

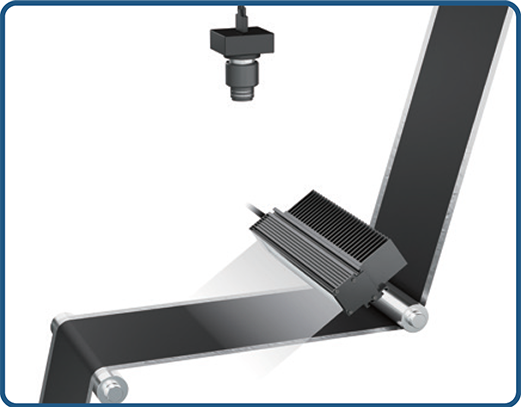

LN2-NE_FA_Application

・Dirt inspection on metal sheets

・Glass scratch inspection

・Foreign material inspection of electronic parts, etc.

Wide range of sizes

Emitting surface length options come in 75 mm increments.
Sizes available from 75 mm to 3,000 mm.

Performance comparison with conventional products (Bi-directional angled type)

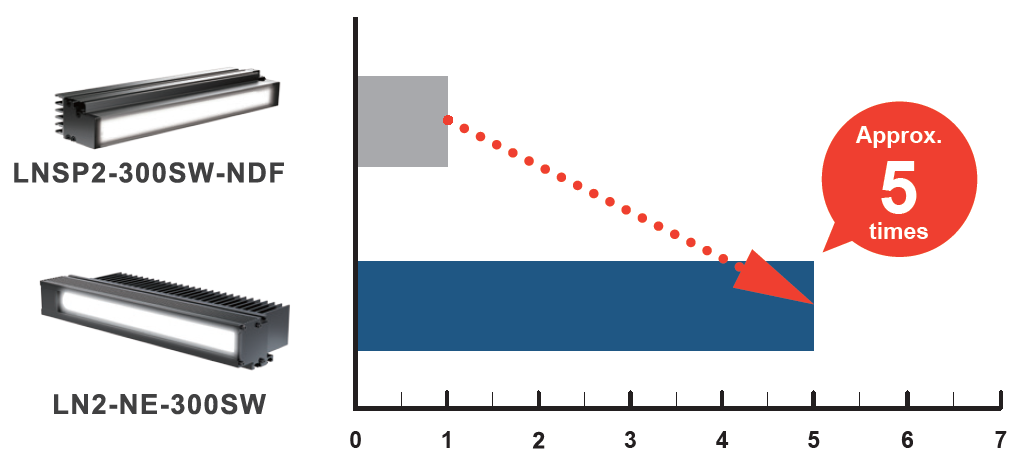

Up to 5 times brighter than LNSP2*

up to 5 times brighter than LNSP2_LN2-NE-300SW

* Comparison of LNIS2-300SW-NDF and LN2-IS-300SW at 50 mm LWD

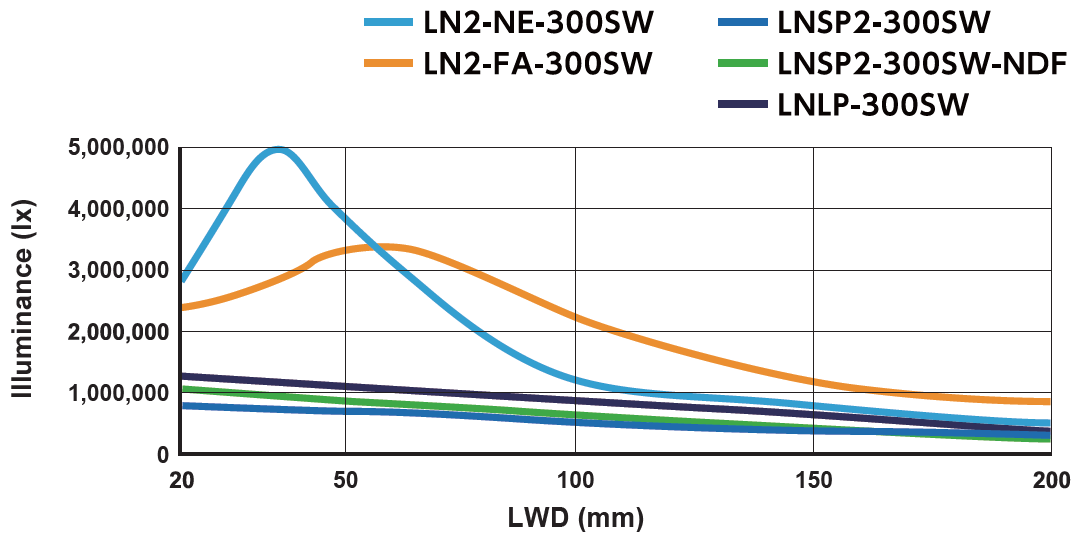

Illuminance graph

Illuminance graph_LN2-NE-300SW

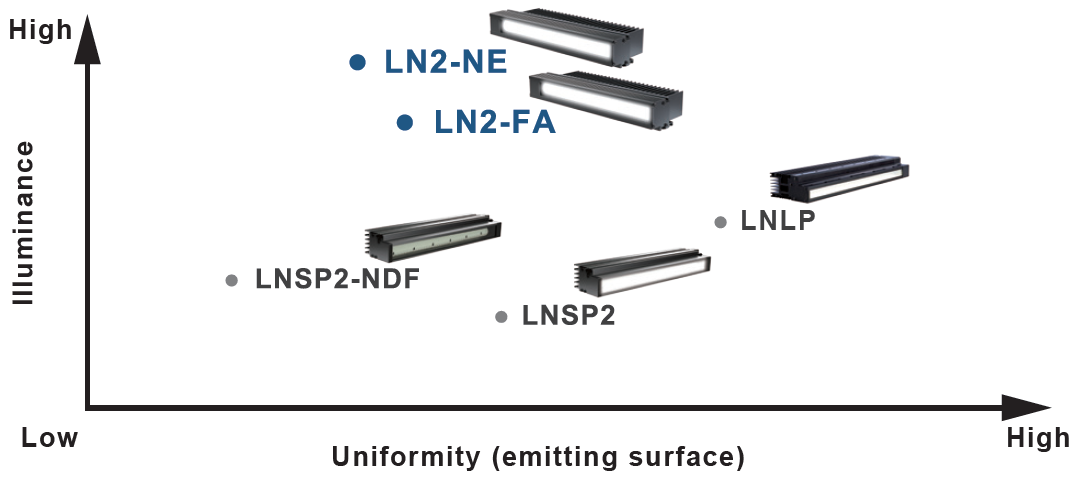

Product map of our lighting for line sensor

Product map of our lighting for line sensor_LN2-NE-300SW

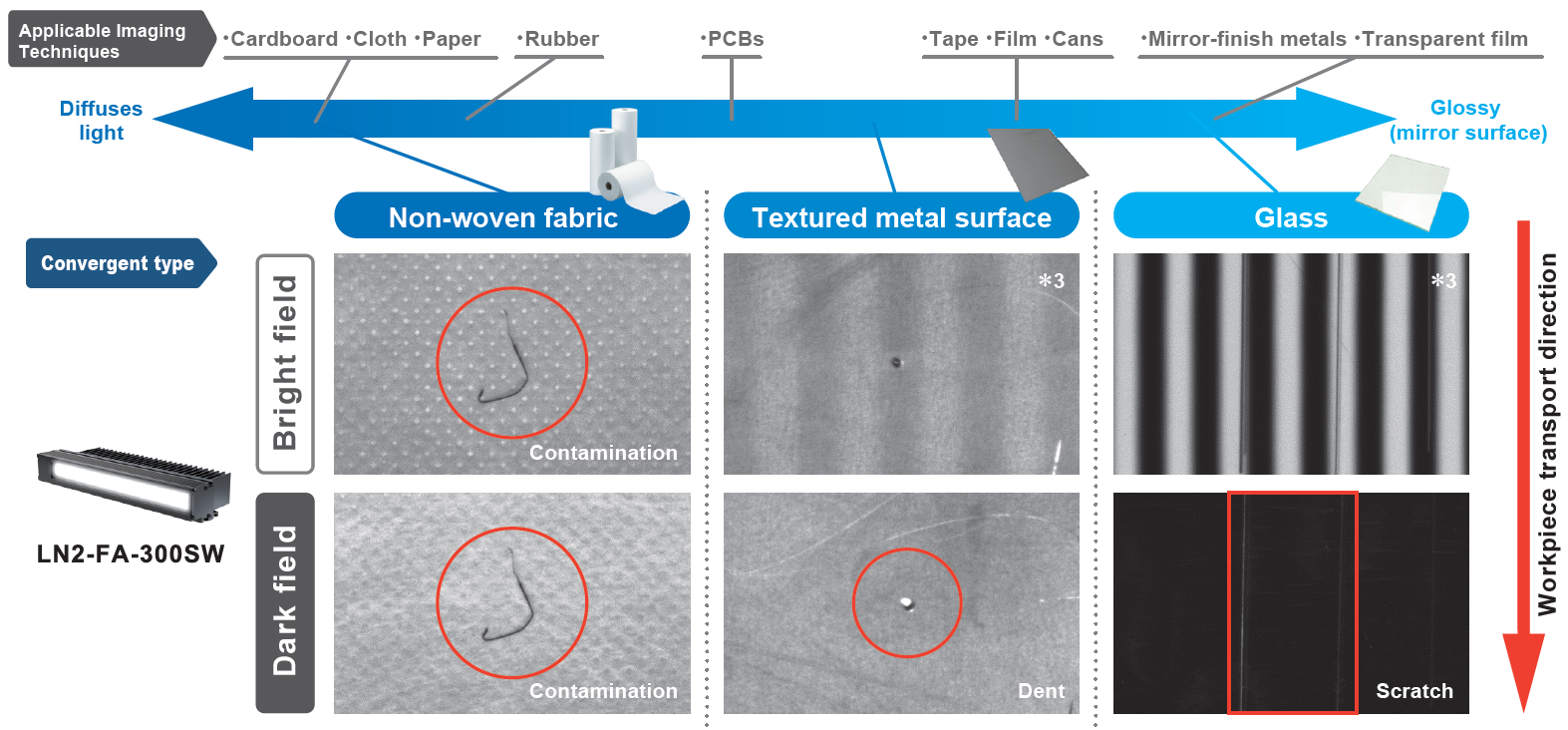

Imaging differences in typical workpieces

Imaging differences in typical workpieces

* The vertical lines in the images are LED reflections.

Characteristics/Data

Data (representative)

The graph included is for reference only. Actual values may vary.

LN2-NE-300SW (LWD less than 65 mm)

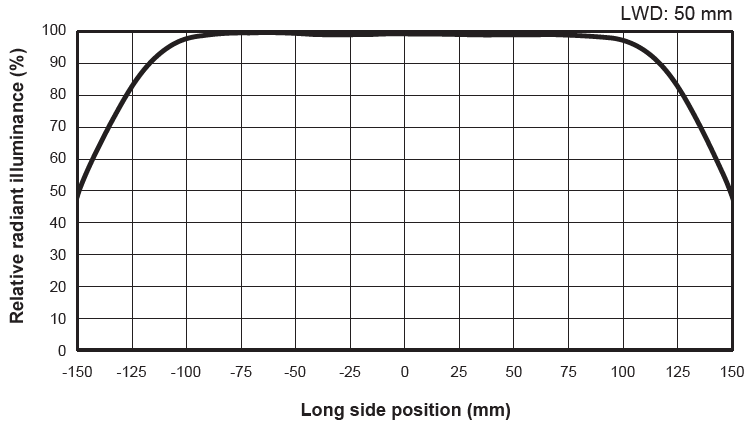

●Relative irradiance distribution Relative irradiance distribution_LN2-NE-300SW (LWD less than 65 mm)

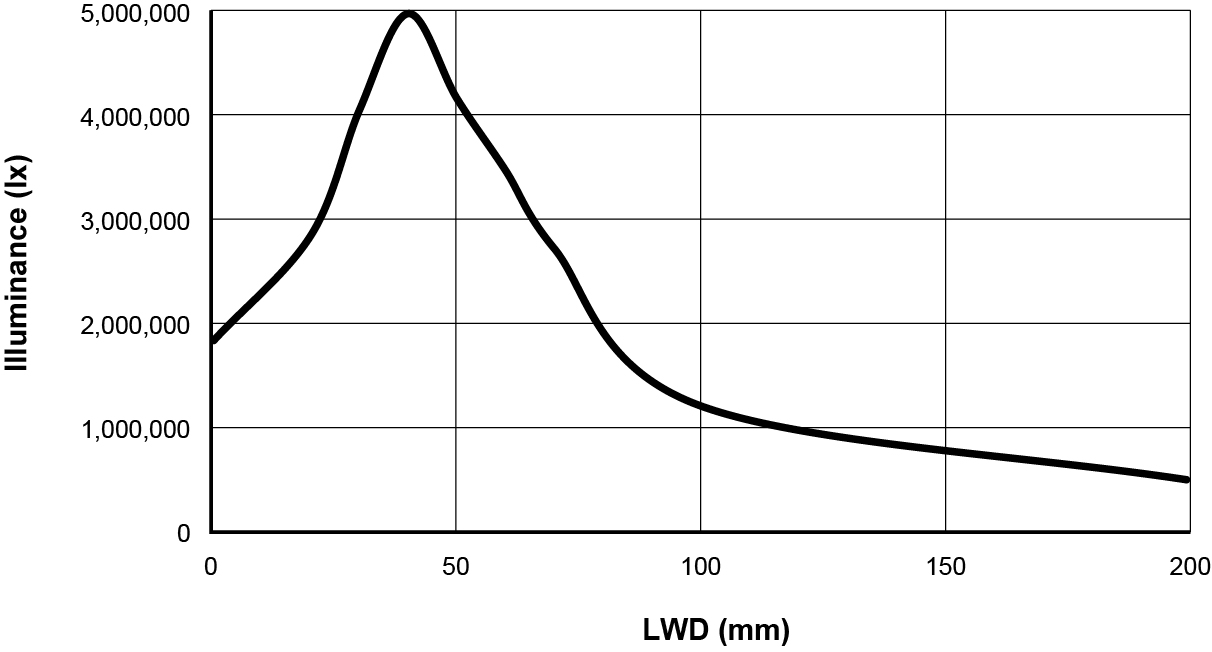

●Illuminance graph Illuminance graph_LN2-NE-300SW (LWD less than 65 mm)
●Directional characterisitics

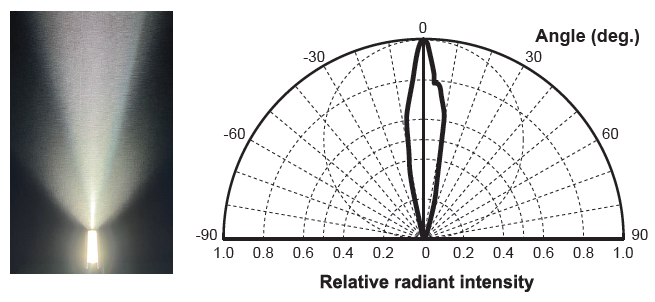

Short side
Directional characterisitics_Short side_LN2-NE-300SW (LWD less than 65 mm)

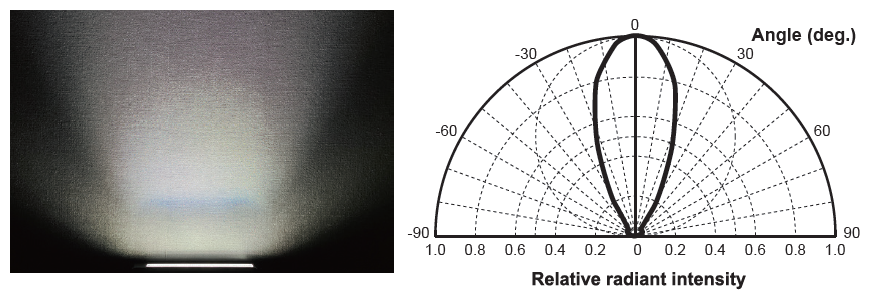

Long side
Directional characterisitics_Long side_LN2-NE-300SW (LWD less than 65 mm)
●Light output characteristics*

Light output characteristics (LN2-NE-300SW)

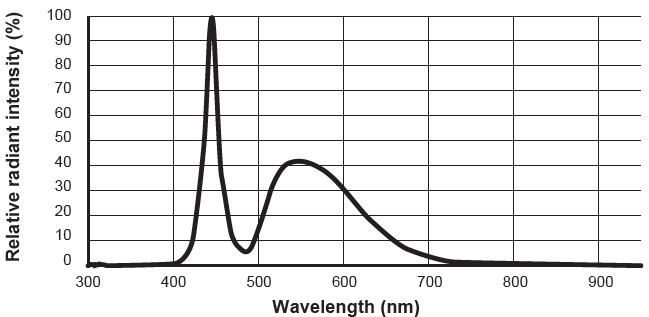

●Spectral distribution Spectral distribution_LN2-NE-300SW (LWD less than 65 mm)
* Measured with PSCC-30048(A) analog control units (Not a guaranteed value)
LN2-FA-300SW (LWD 65 mm or more)

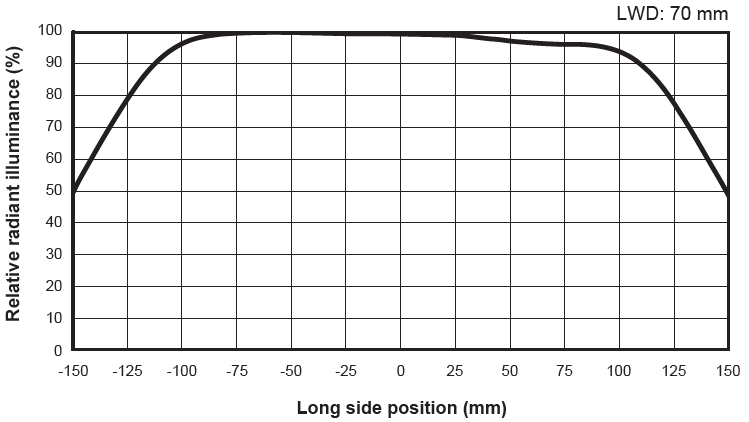

●Relative irradiance distribution Relative irradiance distributionLN2-FA-300SW (LWD 65 mm or more)

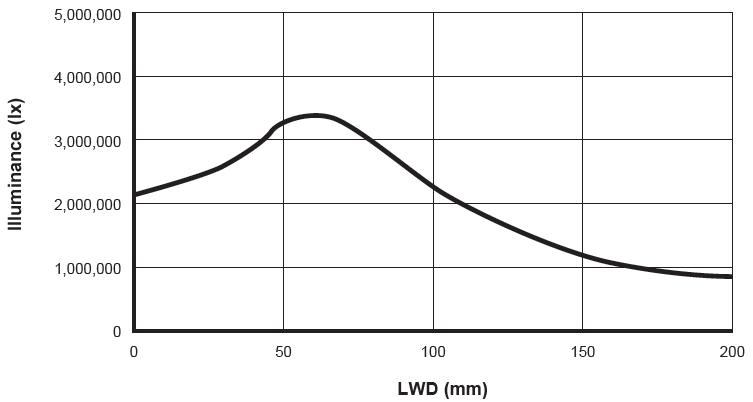

●Illuminance graph Illuminance graphLN2-FA-300SW (LWD 65 mm or more)

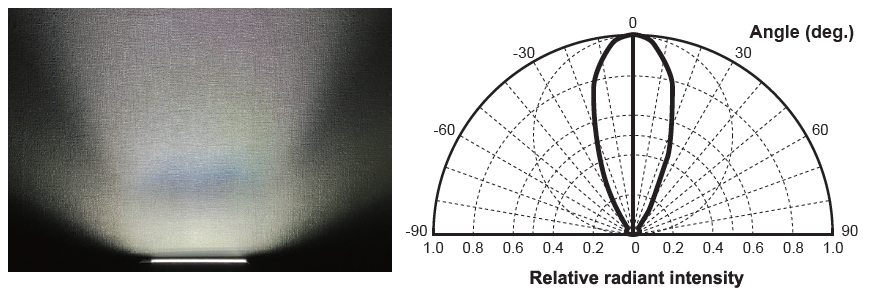

●Directional characterisitics
Short side
Directional characterisitics_Short side_LN2-FA-300SW (LWD 65 mm or more)

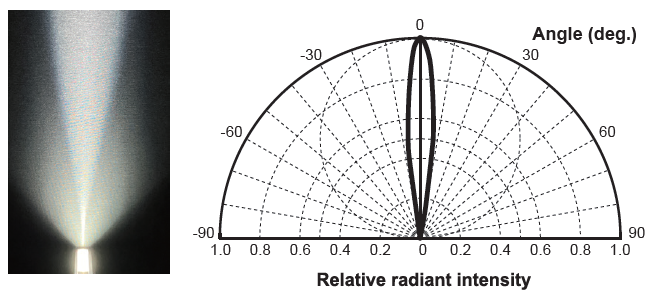

Long side
Directional characterisitics_Long side_LN2-FA-300SW (LWD 65 mm or more)
●Light output characteristics*

Light output characteristics(LN2-NE-300SW)

●Spectral distribution Spectral distribution_LN2-FA-300SW (LWD 65 mm or more)
* Measured with PSCC-30048(A) analog control units (Not a guaranteed value)

Compatibility of Lights and Control Units

The combination of the compatible connector and the control units differs depending on the emitting surface size.

Emitting Surface Size Number of Connectors
(Number of Circuits) 		Recommended Cables Recommended Control Units
LN2_75-525

75 mm to 525 mm

CH1 (1 to 7)

 QCBM-Series
QCBM Series* 		PSCC-30048(A)
PSCC-30048(A)*
LN2_600-1125

600 mm to 1,125 mm

CH1 (8 to 15)

 QCB Series
QCB Series 		PSCC-60048(A)
PSCC-60048(A)

LN2_1200-1650

1,200 mm to 1,650 mm

CH1 (15)

 QCB Series
QCB Series 		PSCC-60048(A)
PSCC-60048(A)

CH2 (1 to 7)

 QCBM Series
QCBM Series* 		PSCC-60048(A)
PSCC-30048(A)*
LN2_1725-2250

1,725mm to 2,250mm

CH1 (15)
CH2 (8 to 15)

 QCB Series
QCB Series x 2 		PSCC-60048(A)
PSCC-60048(A) x 2


LN2_2325-2775

2,325 mm to 2,775 mm

CH1 (15)
CH2 (15)

 QCB Series
QCB Series x 2 		PSCC-60048(A)
PSCC-60048(A) x 2

CH3 (1 to 7)

QCBM Series
QCBM Series* 		PSCC-30048(A)
PSCC-30048(A)*

LN2_2850-3000

2,850 mm to 3,000 mm

CH1 (15)
CH2 (15)
CH3 (8 to 10)


QCB Series
QCB Series x 3
PSCC-60048(A)
PSCC-60048(A) x 3

* PSCC-30048(A) and QCBM Series can be used only for models with 7 or fewer circuits.

Custom Order Cases

Models with diffusers or polarizing plates

Useful for reducing reflections on the workpiece depending on the LWD.

Models with red, blue, or green LEDs

In addition to the standard white LED, models can be customized with red, blue, or green light colors.

Model with modified cable orientation

The cable can be configured to exit from the rear side of the unit.


Please contact our sales representative for details.
