LN2-IS Series

Bi-directional angled illumination is achieved with the original optical design.
Effective for scratches in the moving direction that are difficult to detect with conventional convergent-type line light.

Features

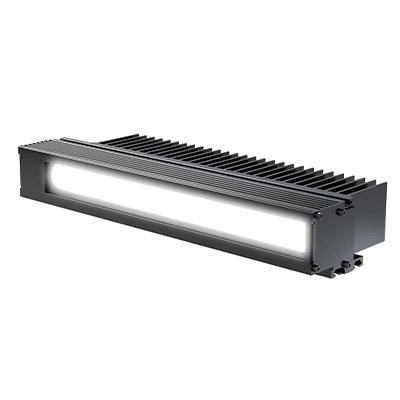

LN2-IS

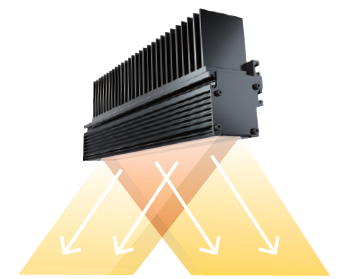

・Bi-directional angled illumination is achieved with unique optical design

・Emits crossed light from the emitting surface

・Effective for scratches in the moving direction that are difficult to detect
 with conventional convergent-type line light

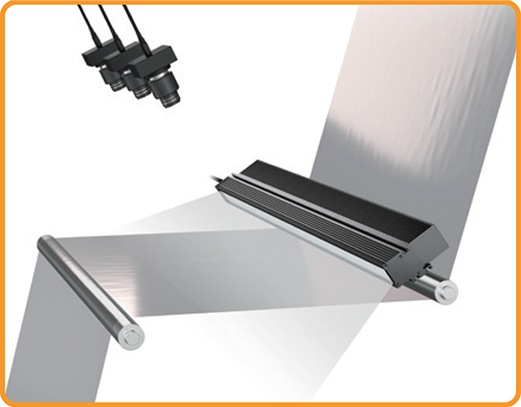

Application

LN2-IS_Application

・Wrinkles in the moving direction

・Inspection of scratches etc

Wide range of sizes

Emitting surface length options come in 75 mm increments.
Sizes available from 75 mm to 3,000 mm.

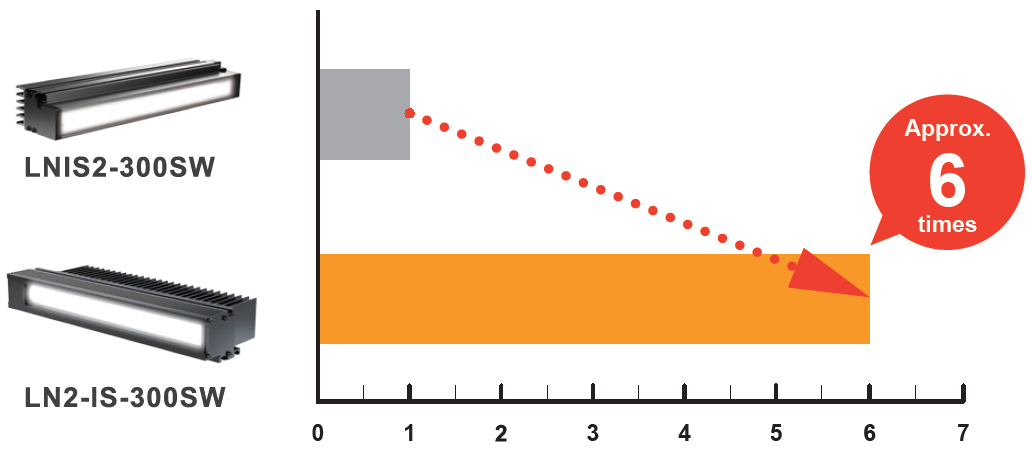

Performance comparison with conventional products (Bi-directional angled type)

Up to 6 times brighter than LNIS2*

Up to 6 times brighter than LNIS2

* Comparison of LNIS2-300SW and LN2-IS-300SW at 50 mm LWD.

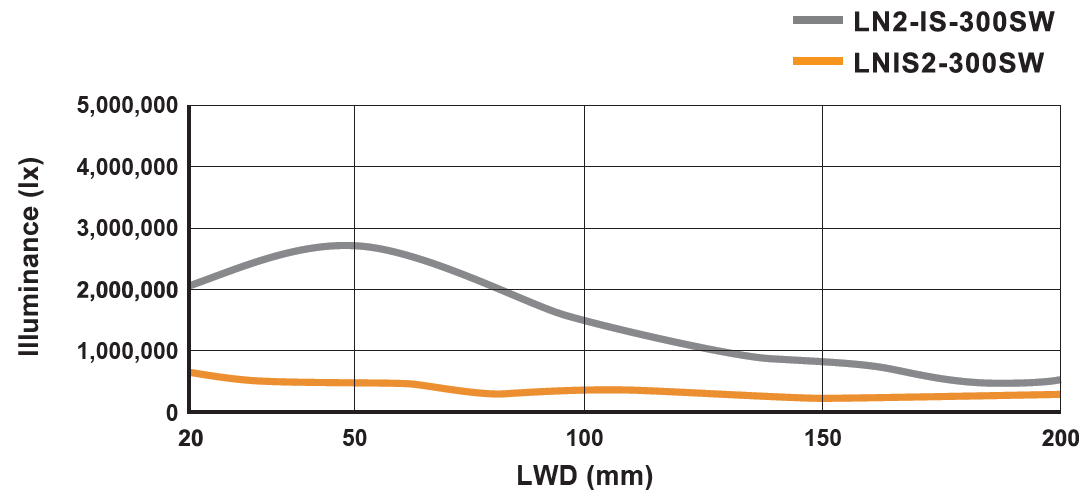

Illuminance graph

Illuminance graph_LN2-IS

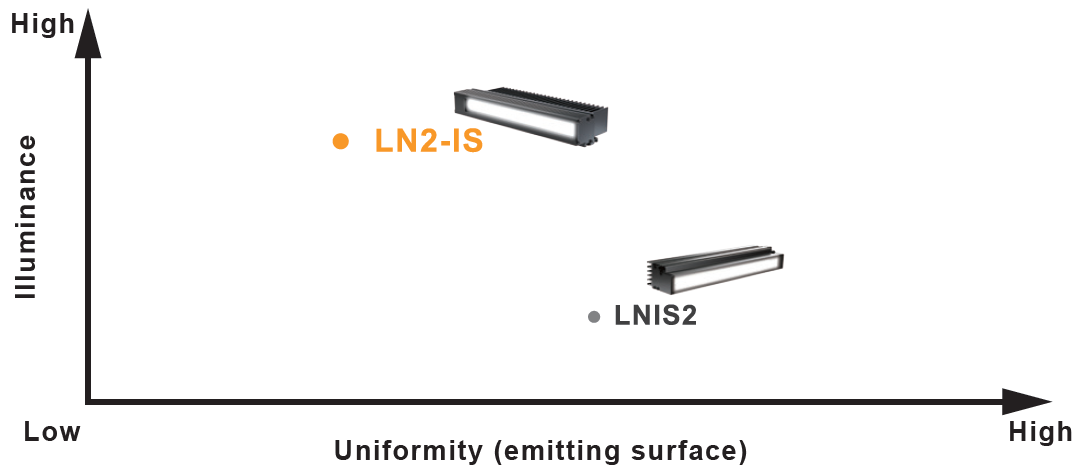

Product map of our lighting for line sensor

Product map of our lighting for line sensor_LN2-IS

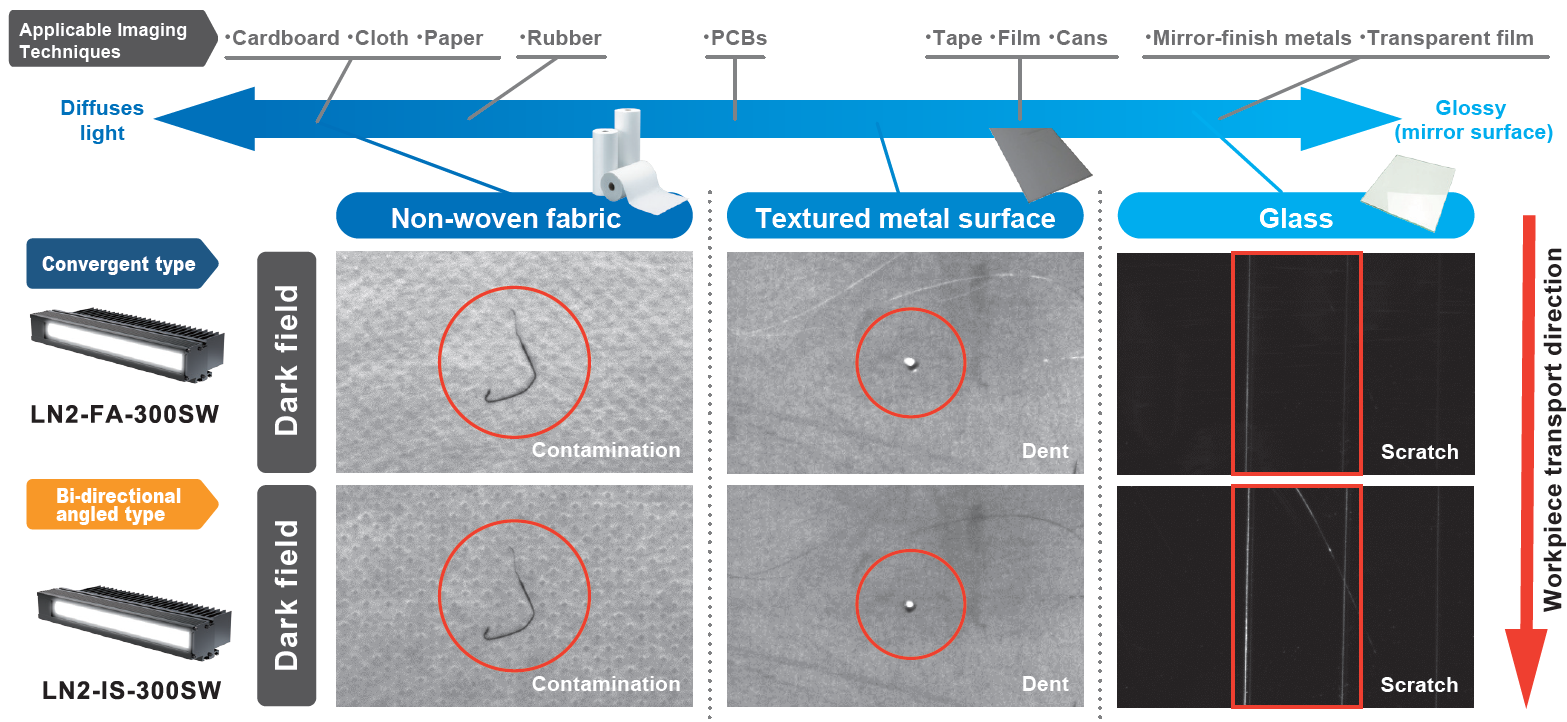

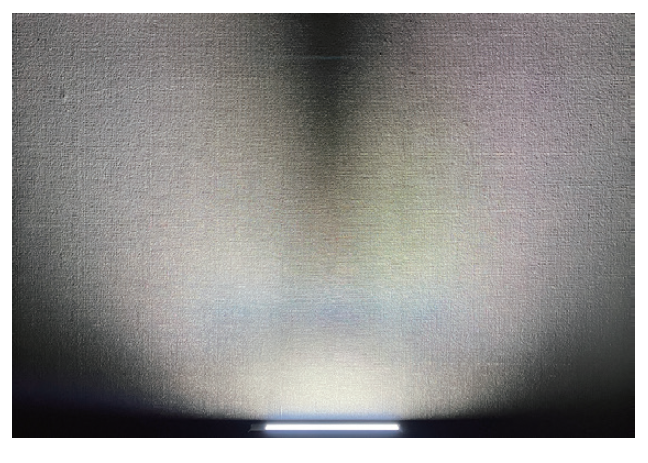

Imaging differences in typical workpieces

Imaging differences in typical workpieces_LN2-IS

Characteristics/Data

Recommended illumination range

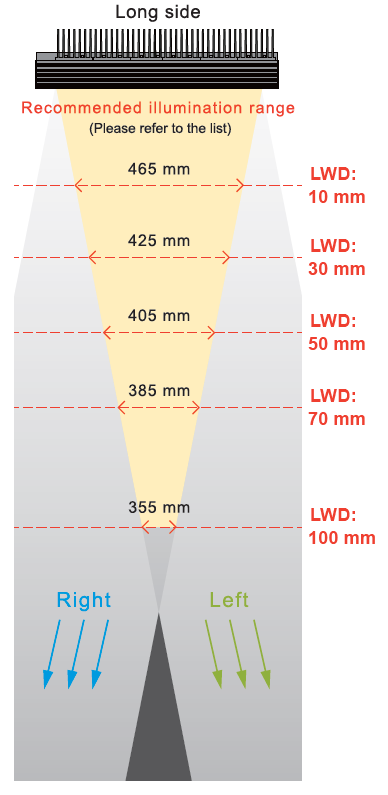

●Recommended illumination
  range*1

Recommended illumination range_LN2-IS

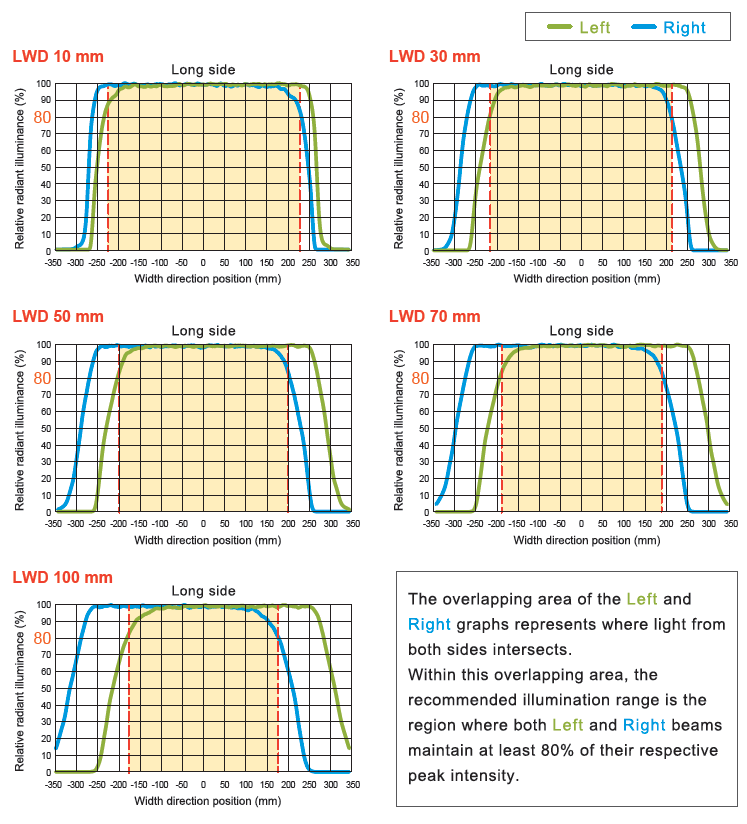

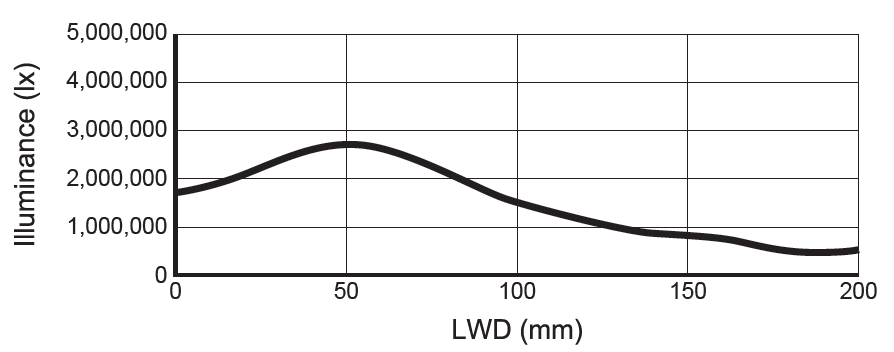

●Effective illumination range graph*2

Effective illumination range graph_LN2-IS

*1 For LN2-IS-525SW
*2 The graph included is for reference only. Actual values may vary.

●Recommended illumination range list*3

(mm)

LWD Emitting surface length
75 150 225 300 375 450 525 600
10 20 90 165 240 315 390 465 540
30   50 125 200 275 350 425 500
50   30 105 180 255 330 405 480
70   10 85 160 235 310 385 460
100     55 130 205 280 355 430
*3 Where illuminance on the left/right side maintains at least 80% of peak intensity.
　 The above values are based on simulation. Actual range of effective illumination depends on your imaging environment.

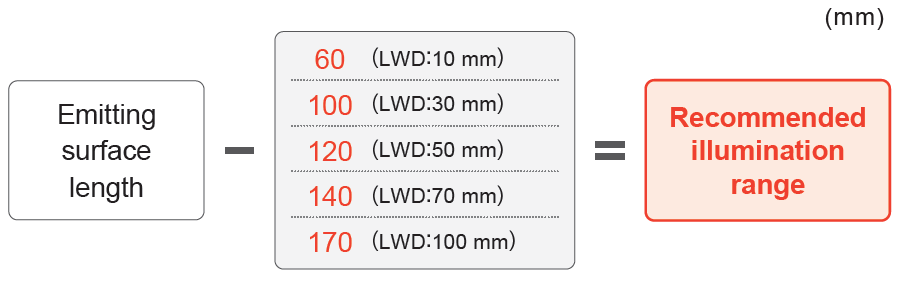

For products with an emitting surface length of 675 mm or more, please calculate the recommended irradiation range using the formula below.*4

675 mm以上の製品の推奨照射範囲

*4 For models with 75 mm emitting surface length, the recommended illumination range is 20 mm.

Data (representative)

The graph included is for reference only. Actual values may vary.

LN2-IS-300SW
●Illuminance graph

Illuminance graphLN2-IS-300SW

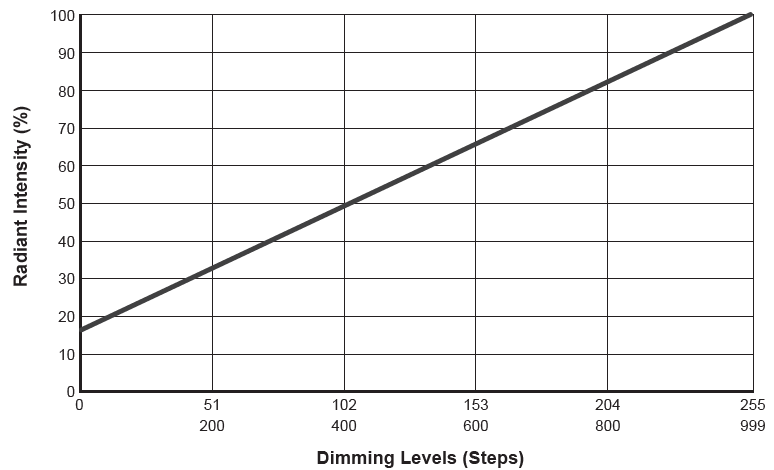

●Light output characteristics*

Light output characteristics(LN2-NE-300SW)

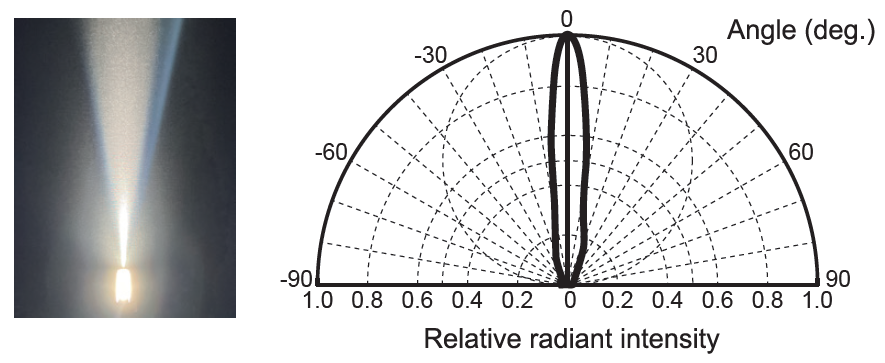

●Directional characterisitics
Short side

Directional characterisitics_short side(LN2-NE-300SW)

Long side

Directional characterisitics_long side(LN2-NE-300SW)

* Measured with PSCC-30048(A) analog control units (Not a guaranteed value).

LED properties

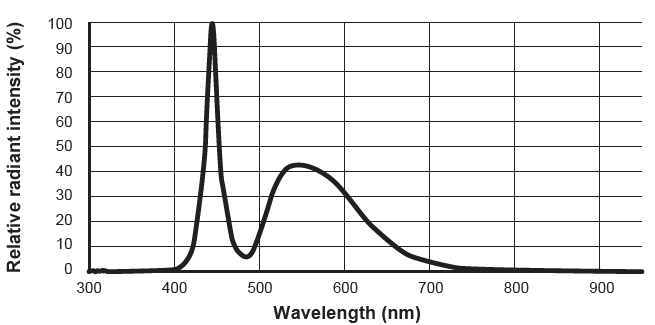

Spectral distribution

Spectral distribution_LN2-IS-300SW

Compatibility of Lights and Control Units

The combination of the compatible connector and the control units differs depending on the emitting surface size.

Emitting Surface Size Number of Connectors
(Number of Circuits) 		Recommended Cables Recommended Control Units
LN2_75-525

75 mm to 525 mm

CH1 (1 to 7)

 QCBM-Series
QCBM Series* 		PSCC-30048(A)
PSCC-30048(A)*
LN2_600-1125

600 mm to 1,125 mm

CH1 (8 to 15)

 QCB Series
QCB Series 		PSCC-60048(A)
PSCC-60048(A)

LN2_1200-1650

1,200 mm to 1,650 mm

CH1 (15)

 QCB Series
QCB Series 		PSCC-60048(A)
PSCC-60048(A)

CH2 (1 to 7)

 QCBM Series
QCBM Series* 		PSCC-60048(A)
PSCC-30048(A)*
LN2_1725-2250

1,725mm to 2,250mm

CH1 (15)
CH2 (8 to 15)

 QCB Series
QCB Series x 2 		PSCC-60048(A)
PSCC-60048(A) x 2


LN2_2325-2775

2,325 mm to 2,775 mm

CH1 (15)
CH2 (15)

 QCB Series
QCB Series x 2 		PSCC-60048(A)
PSCC-60048(A) x 2

CH3 (1 to 7)

QCBM Series
QCBM Series* 		PSCC-30048(A)
PSCC-30048(A)*

LN2_2850-3000

2,850 mm to 3,000 mm

CH1 (15)
CH2 (15)
CH3 (8 to 10)


QCB Series
QCB Series x 3
PSCC-60048(A)
PSCC-60048(A) x 3

* PSCC-30048(A) and QCBM Series can be used only for models with 7 or fewer circuits.

Custom Order Cases

Models with diffusers or polarizing plates

Useful for reducing reflections on the workpiece depending on the LWD.

Models with red, blue, or green LEDs

In addition to the standard white LED, models can be customized with red, blue, or green light colors.

Model with modified cable orientation

The cable can be configured to exit from the rear side of the unit.


Please contact our sales representative for details.
