These Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens.
Mirror surface workpieces are uniformly illuminated without unevenness.
The diffusion plate is adjustable and exchangeable.
Download Pamphlet PDF
Freely customize the diffusion
Customize the diffusion
|Diffusion plate status||Result|
|Change the transmittance rate from (high) to (low)||Increased uniformity|
|Change the installation position to the LED side||Emphasized directionality|
1) Prepared two types of diffusion plates with different transmittance rate.
Replace the diffusion plate to change the transmittance rate.
2) The installation position of the diffusion plate can be adjusted.
Change the position to achieve various imaging effects.
Replacing the half-mirror with a beam splitter increased accuracy. It is perfect for tiny workpieces and environments with limited installation space.
Coaxial Light that supports high-resolution cameras
Highly-accurate optical glass is used for the camera window and the half-mirror. This allows for stable imaging when using high-resolution cameras.
LFV3 series, a Coaxial Light with improved quality
By using the half mirror, diffused light from the LED is illuminated on the same axis as the camera axis.
Data: Relative irradiance graph and uniformity (Representative example)
※The data included is for reference only. Actual values may vary.
CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.
The data included is for reference only. Actual values may vary.
Imaging of engraved text on a metal connector hood
|Conventional lighting||LED Bar Light|
|Result||Emphasizes the engraved text|
Imaging for circuit board through holes
|Conventional lighting||LED Ring Light|
LFV3-RA Series (Custom Order Example)
- The position of the illumination port of a standard coaxial light is changed by 90°.
- Suitable for inspections where there are restrictions on camera installation conditions and lighting space, such as inside inspection machines.
This is a made-to-order product. For queries and details, contact your CCS sales representative.

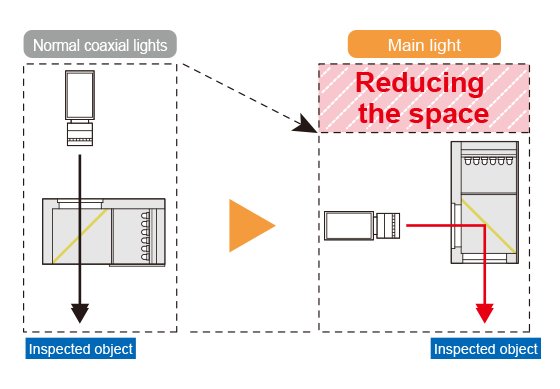

1. Reducing the installation space in the vertical direction
Compared to normal coaxial lights, this light helps reduce the installation space in the vertical direction.

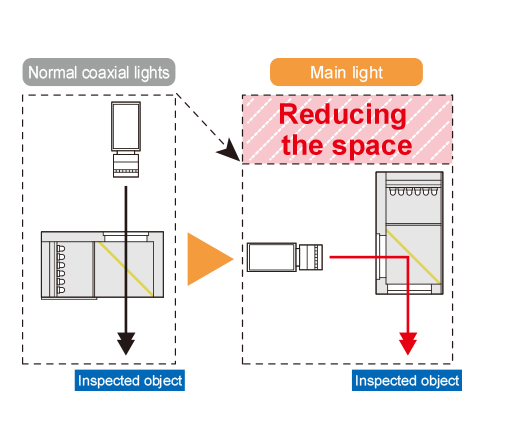

2. Reducing the installation space in the horizontal direction
Compared to normal coaxial lights, this light helps reduce the installation space in the horizontal direction.
It suppresses the reflection of the wrapping film on the surface and captures printing.
