For Replacing Xenon Light Sources (PFBR-600 Made-to-order products)

Made to order PRBR-600 series that uses a new light source that is not LED.

  • Next-generation light sources with a maximum brightness of 38 million lux *1
  • Maintenance free (lamp replacement not required)
  • Strobe lighting mode (internal trigger mode, external trigger mode) can be selected
  • External control via EtherNet, parallel or serial communication

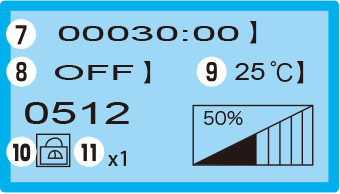

  • Dimming setting in up to 1,024 levels (10 bit: 1,024 levels / 8 bit: 256 level
*1 Note: Equipped with straight light guide with bound diameter of ?8 mm and total length of 1,000 mm for maximum dimming.
Measured value at an irradiation distance of 20 mm from the fiber outer end face (not a guaranteed value)

Standard products PFBR-600

Features

Maintenance-free for greatly reduced workhours

This product is maintenance-free (lamp replacement not required).
The life of a xenon flash lamp is normally 10? to 10? flashes (approximately 1 billion times), and replacement is necessary.
However, this product has a light emission time of 10 ?s and a repetition frequency of 100 Hz, so the light output remains stable even after 10? flashes.

High-Speed Response 1 µs or Faster

This strobe light source unit is a solid-state light source with a high-speed driver circuit, which enable extremely short respond time from trigger input to maximum light emission of less than 1 µs.
For pulse illumination synchronized to external trigger input.
Response Time by External Trigger Signal Input *2

Response Time by External Trigger Signal Input

*2 Measured at the maximum light quantity.This data is for reference only. Actual values may vary.

Fully synchronized with camera exposure timing

The "lighting delay time" can be configured and adjusted to completely synchronize the exposure time and lighting time of the camera.

Achieves a stable imaging environment
"Lighting delay time" setting image

Lighting delay time settings: Min. 0 µs to max. 99 ?s

Stable light emission

There is no jitter and no light leakage like a xenon flash lamp.
The lighting waveform is a square wave and can control the lighting cycle with a duty ratio of 1% or less using pulse width modulation (PWM).

Responsiveness provides no fluctuation in delay time (jitter) relative to the trigger signal
Comparison of pulse output with xenon light source
PFBR-600SW-LL-XF

PFBR-600SW-LL-XF

Xenon light source

Xenon light source

Note: Actual values ??under our measurement conditions. The data included is for reference only. Actual values may vary.

Characteristics/Data

Light Spectrum Characteristics *3

Light Spectrum Characteristics

Distribution Characteristics of Fiber Output Edge*4

Distribution Characteristics of Fiber Output Edge

*3 Actual measurement values using our measurement conditions.Results for individual products may vary.
*4 Actual measurement values with intensity of 100%, a bundle of φ8 mm, a straight light guide with a total length of 1,000 mm installed, and at a position 1,000 mm away from the fiber output edge. (Results may vary for individual units.)

Filter Changer

PFBR-600SW-LLCF-XF Filter Changer Model

Use color filters to emit light at specific wavelengths.

PFBR-600SW-LLCF-XF Filter Changer Model

A variety of filters are available with excellent heat resistance.

  • Equipped with a multi-filter changer that holds five filters.
  • Filters can be changed manually or using external communication.
  • Easily replace filters by removing the front cover.
  • Filters available in six colors.

Filters available in six colors.

* Refer to the instruction guide for installing and setting filters.

Options

Light Guides

We offer various light guides suited to a variety of applications, including straight types, ring types, and types for line sensors.

Straight Type

Straight Type

Ring Type

Ring Type

Bar Type for Line Sensors

Bar Type for Line Sensors

  • We accept custom orders for the light guides. Please contact your CCS sales representative for details.

Light Guide Adapters

We offer various light guide adapters suited for each type of light guide.

Light Guide Adapter
(AD-PFBR-600-01)

ight Guide Adapter (AD-PFBR-600-01)

For the detail, refer AD-PFBR-600-01 Page

Light Guide Adapter
(AD-PFBR-600-02)

ight Guide Adapter (AD-PFBR-600-02)

For the detail, refer AD-PFBR-600-02 Page

Light Guide Adapter
(AD-PFBR-600-03)

ight Guide Adapter (AD-PFBR-600-03)

For the detail, refer AD-PFBR-600-03 Page

  • Please be aware that the light guide adapter must be installed after purchase by the customer.
  • For light guide adapters other than AD-PFBR-600-01, please ask CCS.

External Control Cables

Select an appropriate cable, depending on the communication method.

EXCB2-25M-3

EXCB2-25M-3

  • Parallel communication cable(Compatible with digital and analog intensity control)
  • Purchase a commercially available RS-232 crossover cable (length: 3 m max.) for the serial communication cable.
  • Purchase a commercially available LAN cable (length: shorter than 30 m) for the Ethernet communication cable. Refer to the instruction guide for more information.

    For the detail, refer to EXCB2-25M-3 Page

Color Filters

Use filters to emit the optimum light for the inspected workpiece.

Available Six Colors (Five filters can be installed)

Color Filters

  • Contact your CCS sales representative for the detailed information.
