LNDG Series
These Line Lights are ideally suited for detecting bumps and subtle vertical wrinkles in plain sheets that disperse light.
Download Pamphlet PDF
Features
Achieves angled illumination
The LNDG series enables detection of bumps and subtle vertical wrinkles, which were difficult to detect with conventional line sensor lights, in paper or non-woven fabric that disperses light.
Conceptual image of angled illumination
Other features
- Fan-less (Natural air cooling)
- Error detection support
- Emitting surface 300 to 3,000 mm long (can be made in units of 100 mm)
Bumps and subtle vertical wrinkles can be detected
Imaging samples
Applications
Inspections for vertical wrinkles in paper labels
Example configuration
Achieves angled illumination using an original optical design. This is a line sensor light perfect for detecting moving-direction bumps and subtle vertical wrinkles.
LNDG series
Select a Light Unit that is longer than the width of the workpiece.

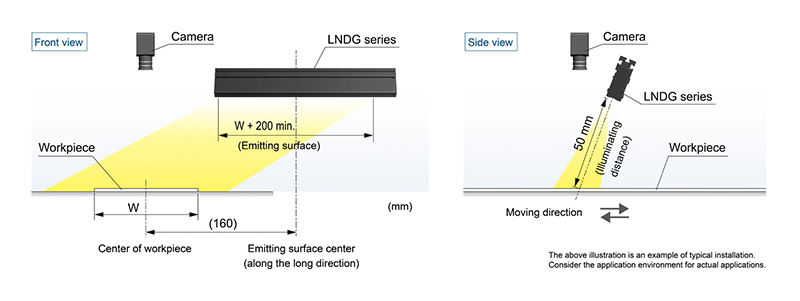

The LNDG-series Light Unit emits light at an angle to enable detecting "vertical wrinkles and bumps." When you select a Light Unit, select one that is at least 200 mm longer than the width of the workpiece to be inspected. We recommend a illuminating distance of 50 mm to obtain sufficient illumination.
Characteristics/Data

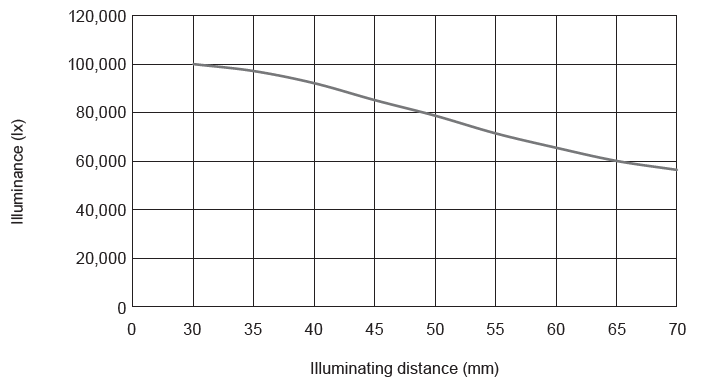

Data (Representative example)
※The graph included is for reference only. Actual values may vary.
LNDG-500SW-LA
LED properties
Spectral distribution
The data included is for reference only. Actual values may vary.
