Lighting Imaging Examples for the Automotive Industry
Imaging text on intake valves

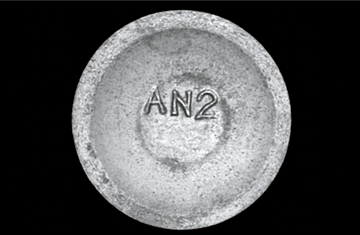

It is difficult to clearly recognize the text due to the inner indentation.

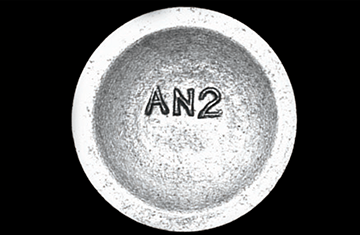

It is possible to image the workpiece with the character edges standing out.
| Type of inspection | Character recognition |
|---|---|
| Workpiece | Intake valves (automotive parts) |
| Before | LED ring light |
| After | LDR2-50RD2 |
| Result | Emphasized characters |
Lights used for the imaging
-

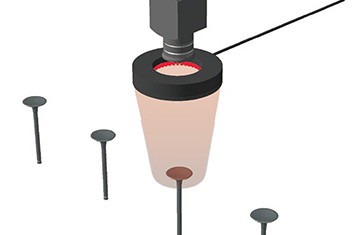

LDR2-50RD2
- Standard ring lights
- Greatly reducing LED heat
- High density LEDs illuminate the center part with direct light
LDR2 Series is available in different shapes and wavelengths.
For more details, please contact us.
Imaging FIPG sealing material on metal component

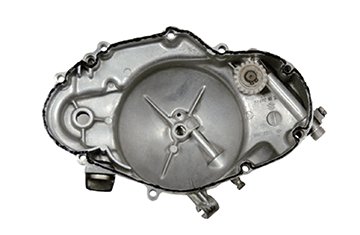

The state of FIPG sealing material is unclear.

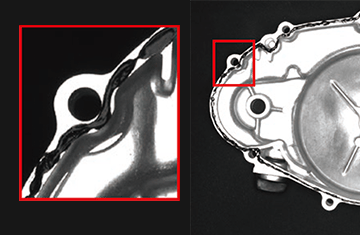

The state of FIPG sealing material can be imaged.
Lights used for the imaging
-

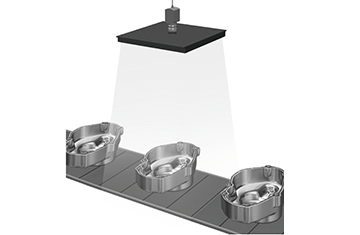

Flat light TH2-300X300SW-CR35
- Flat lights with a camera window at the center of the emitting surface
- Provide a light from the same axis as the camera
- Evenly illuminate on a wide range
TH2-CR Series is available in different shapes and wavelengths.
For more details, please contact us.
