MFU Series
Coaxial lights for collimated backlighting
These coaxial lights provide collimated lighting from behind the workpiece.
This suppresses the wraparound of light and enables precise dimension measuring and appearance inspection.
12V and 24V types available.
Use the KT-MFU collimated backlight unit with the HLV series spot light to increase brightness.
Features
Light emission suitable for highly accurate dimension measuring and inspection for fine burrs
Our unique optical design achieves highly accurate imaging that prevents light from wrapping around the workpiece.
Light convergence can be adjusted according to the lens on the imaging side.
Imaging example: Inspection of the appearance of interdental brush
Imaging example
TH2-27X27BL
Flat Light (High Brightness Type)TH2-27X27BL-PM
Flat Light (High Directivity Type)MFU-34X30BL2
Flat lights(TH2-27X27BL, TH2-27X27BL-PM) make it difficult to emphasize the edges of the silhouette because the light wraps around the workpiece.
With the MFU-34X30BL2, it is possible to emphasize the edges of the silhouette by preventing light from wrapping around the workpiece.
12V and 24V types available
The 12V type, which is the same as the existing product, and the new 24V type are available.
Using new 24V type MFU series with our 24V lighting equipment alleviates the need for multiple control units.
Former Product
Using the existing 12V type MFU series with our 24V lighting equipment requires separate control units corresponding to 12V and 24V.Updated Models
Using new 24V type MFU series with our 24V lighting equipment alleviates the need for multiple control units.
Example configuration(MFU-34X30BL2)

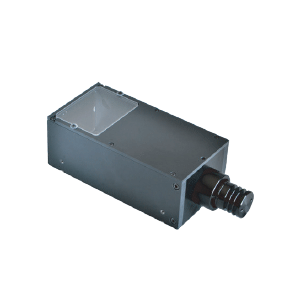

KT-MFU Series
- Use the KT-MFU collimated backlight unit with the HLV series spot light to increase brightness.
Compatible Lights :
HLV3-22RD-1C / HLV3-22SW-1C / HLV3-22BL-1C / HLV3-22GR-1C,
HLV3-22RD-2C / HLV3-22SW-2C / HLV3-22BL-2C / HLV3-22GR-2C,
HLV3-22RD-4C / HLV3-22SW-4C / HLV3-22BL-4C / HLV3-22GR-4C* Spot lighting equipment for light units is sold separately.
* Please use the recommended light units for each HLV product.

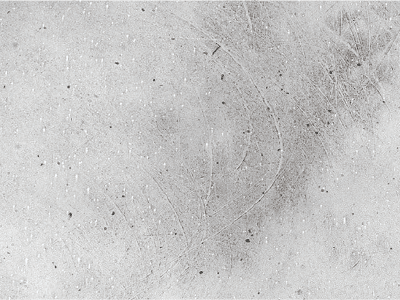

Imaging example : Observation of dust on the ND filter
Even workpieces with low optical transmission can be imaged with a short exposure time.

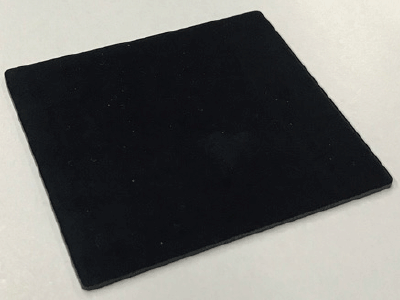

- ND filter
- KT-MFU-34X30BL2 Light Unit : HLV3-22BL-4C
[ Imaging Conditions ]
Camera: 2448 X 2048 3.45 μm monochromatic camera, Exposure Time: 0.9 ms
Lens: 1× magnifying telecentric lens, Imaging Field: 8 mm (W)
Resolution: 3 μm/ pixel, WD: 110 mm, LWD: 115 mm
Imaging Example
Exterior imaging of a screw
Exterior imaging of a push pin
When the user looks at a clear resin push pin with diffused light from a Flat Light illuminated from the rear, the clear part appears clear. However, with collimated light, the light is refracted by the clear resin, and the whole pin appears black.
Imaging of the exterior and dimensions of a condenser
If you view it with diffused light of Flat Light illuminated from the rear, the light wraps around the side of the condenser body. However, with collimated light, that wrap around is prevented and the thickness of the wires is also imaged evenly.
