UV3 / VL3 Series

Expanded lineup with higher output than the conventional UV series and UV2 series.
・Line, ring, bar and spot types
・Available wavelengths: 365 nm, 385 nm, 395nm and 405 nm*1.
・Two types of directivity: wide types to illuminate a wide area and narrow types for convergent illumination on a narrow area*2.
・Maximum 2 times higher output than conventional UV2 series. Overdrive available to increase inspection speed.
・For various inspection applications such as fluorescence observation, coating inspection, and defect detection.

*1 385/395/405 nm models are made to order.
*2 Ring type (LDR2), bar type (LDL), and high power line type (LNSP-FN) are available in two directivity types (wide and narrow).

Features

Increase brightness with overdrive

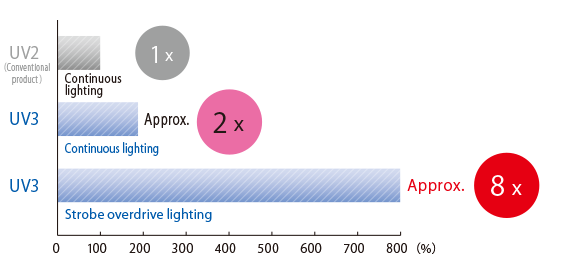

Comparison with a conventional product (LDR2-60UV3-365-N)*1

Comparison with a conventional product (LDR2-60UV3-365-N)

*1 Comparison between the LDR2-60UV3-365-N and LDR2-60UV2-365-N at 100 mm LWD.
The increase in brightness varies depending on model.
(These values are for reference only and are not guaranteed values.）

Imaging special ink on can

Comparison of imaging at 1ms shutter speed

  • Example of imaging with UV2*2

    Example of imaging with UV2

    A lack of brightness makes it difficult to perform fluorescence observation for special inks.
    *2 Continuous lighting

  • Example of imaging with UV3*3

    Example of imaging with UV3<

    Enables fluorescence observation for special inks even with faster shutter speed.
    *3 Strobe overdrive lighting

4 wavelengths (365/385/395/405 nm) expand possible applications

Spectral distribution

Spectral distribution

Cautionary information regarding UV products

UV blocking eye wear

  • Do not expose your eyes or skin to direct UV irradiation.
  • When using UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts).
  • Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone's eyes.
  • Wear long sleeves and gloves to protect your skin from UV irradiation.
  • Thoroughly educate all those involved near the product about the dangers of UV LEDs.

Applications

Imaging special ink on can

Imaging special ink on can

  • Observation of special inks
  • Magnetic particle inspection
  • Dye penetrant inspection
  • Adhesive inspection
  • Coating inspection and more

Imaging Example

Imaging adhesive on an imaging sensor substrate

Workpiece image

Imaging sensor substrate

White LED lighting
(LDR2-90-30SW2)

It is difficult to capture the adhesive with white LED lighting.

UV light (LDR2-100UV3-365-W)

With UV light, the adhesive can be observed because of emitted fluorescent light.

Imaging of grease applied on a gear part

Workpiece image

Gear part

White LED lighting
(LDR2-90SW2)

With white light, it is difficult to capture the application of the grease on uneven surface..

UV light (LDL-138X12UV3-365-W)

With UV light, the application of the grease can be observed because of emitted fluorescent light.

Imaging for detecting contact lenses inside packaging

Workpiece image
Workpiece: contact lenses

Contact lenses

LED visible light
Contact lences imaged with LED visible light

With visible light, it is difficult to detect the contact lenses.

UV light (LNSP-300UV3-365-FNNR)
Contact lences imaged with UV light

With UV light, depending on the type of contact lens, they absorb the ultraviolet wavelength, allowing for the inside of the pack to be imaged.

Imaging for the alignment of clear films

Workpiece image
Clear plate (bottom) and film (top)

Clear plate (bottom) and film (top)

LED visible light
Clear plate (bottom) and film (top)

With visible light, it is difficult to form an image of the clear film.

UV light (LNSP-300UV3-365-FN)
Clear plate (bottom) and film (top)

With UV light, only the clear film causes scattering, emphasizing the edge.

Imaging of invisible code

Workpiece image
Plastic plate

Plastic plate

LED visible light
Plastic

Fluorescent observation is difficult with white light.

UV light (LNSP-300UV3-365-FN)
Plastic plate

With UV light, fluorescent observation for the invisible code is possible.

Imaging foreign material on paper

Workpiece image
White paper (Tissue)

White paper (Tissue)

LED visible light
White paper (Tissue)

Fluorescent observation is difficult with white light.

UV light (LNSP-300UV3-365-FNNR)
White paper (Tissue)

With UV light, fluorescent observation for foreign material, such as dust, is possible.

Lineup

For extension cables and recommended power supplies for each model, please refer to the "Options" tab.

Product Series Model name*1*2 LED color Power consumption Weight Overdrive*4

LDR2

 LDR2-60UV3-365-N
LDR2-60UV3-365-W		 Ultraviolet 24V / 7.6 W End of the model name -N：80 g
End of the model name -W：85 g		 Supported
LDR2-60VL3-□-N
LDR2-60VL3-□-W		 Violet
LDR2-100UV3-365-N
LDR2-100UV3-365-W		 Ultraviolet 24V / 23 W End of the model name -N：210 g
End of the model name -W：240 g
LDR2-100VL3-□-N
LDR2-100VL3-□-W		 Violet

LDL

 LDL-71X12UV3-365-N
LDL-71X12UV3-365-W		 Ultraviolet 24V / 7.6 W 270 g Supported
LDL-71X12VL3-□-N
LDL-71X12VL3-□-W		 Violet
LDL-138X12UV3-365-N
LDL-138X12UV3-365-W		 Ultraviolet 24V / 16 W 450 g
LDL-138X12VL3-□-N
LDL-138X12VL3-□-W		 Violet
LDL-205X12UV3-365-N
LDL-205X12UV3-365-W		 Ultraviolet 24V / 23 W 600 g
LDL-205X12VL3-□-N
LDL-205X12VL3-□-W		 Violet
LDL-339X12UV3-365-N
LDL-339X12UV3-365-W		 Ultraviolet 24V / 38 W 950 g
LDL-339X12VL3-□-N
LDL-339X12VL3-□-W		 Violet

LN

 LN-61UV3-365 Ultraviolet 24V / 7.6 W 430 g Supported
LN-61VL3-□ Violet
LN-128UV3-365 Ultraviolet 24V / 16 W 700 g
LN-128VL3-□ Violet
LN-195UV3-365 Ultraviolet 24V / 23 W 970 g
LN-195VL3-□ Violet

HLDR

 HLDR-IP67-100UV3-365 Ultraviolet 24V / 18 W 420 g Not supported *5
HLDR-IP67-100VL3-□ Violet

HLV2

 HLV2-24UV3-365 Ultraviolet 0.7A / 2.8 W 50 g Not supported *5
HLV2-24VL3-□ Violet

LNSP-FN *3

 LNSP-100UV3-365-FN Ultraviolet 36 W *3 900 g Not supported *5
LNSP-100VL3-□-FN Violet
LNSP-100UV3-365-FNNR Ultraviolet 700 g
LNSP-100VL3-□-FNNR Violet
LNSP-200UV3-365-FN Ultraviolet 70 W *3 1300 g
LNSP-200VL3-□-FN Violet
LNSP-200UV3-365-FNNR Ultraviolet 1000 g
LNSP-200VL3-□-FNNR Violet
LNSP-300UV3-365-FN Ultraviolet 103 W *3 1700 g
LNSP-300VL3-□-FN Violet 104 W *3
LNSP-300UV3-365-FNNR Ultraviolet 103 W *3 1300 g
LNSP-300VL3-□-FNNR Violet 104 W *3
Product Series Model name*1*2 LED color Power consumption Weight Overdrive*4
  • *1 □ shows the wavelength, 385/395/405.
  • *2 Ring type (LDR2), bar type (LDL) and high power line type (LNSP-FN) are available in two types of directivity.
    　　　End of the model name "-N" "-FN" is Narrow type,"-W" "-FNNR" is Wide type.
  • *3 The power consumption for LNSP-FN series includes the power consumption by the fan.
  • *4 For information on the combination of Light Units and POD-series Control Unit, please refer to How to Check Lighting Connection Combinations
  • *5 Models without POD as the recommended control unit cannot be used in combination with the strobe overdrive control unit. Please contact us if you would like to make a special order for the combination.

Data

Relative Irradiance Graph and Uniformity (Representative Example)

The data included is for reference only. Actual values may vary.

LDR2-100UV3-365-N (Narrow type)*1

Relative irradiance graph (LWD characteristics)*2*3

Relative irradiance graph (LWD characteristics)

Uniformity (Relative irradiance)

Uniformity (Relative irradiance)

LDR2-100UV3-365-W (Wide type)

Relative irradiance graph (LWD characteristics)*2*3

Relative irradiance graph (LWD characteristics)

Uniformity (Relative irradiance)

Uniformity (Relative irradiance)

HLDR-IP67-100UV3-365

Regarding recommended distance

Recommended illuminating distance (126.5 mm±10 mm). If distance is exceeded, the uniformity may change and the imaging may be affected.
Uniformity (Relative irradiance)

Uniformity (Relative irradiance)

LDL-71X12UV3-365-N (Narrow type)*1

Relative irradiance graph (LWD characteristics)*2*3

Relative irradiance graph (LWD characteristics)

Uniformity (Relative irradiance)

Uniformity (Relative irradiance)

LDL-71X12UV3-365-W (Wide type)

Relative irradiance graph (LWD characteristics)*2*3

Relative irradiance graph (LWD characteristics)

Uniformity (Relative irradiance)

Uniformity (Relative irradiance)

HLV2-24UV3-365

Relative irradiance graph (LWD characteristics)*2*3

Relative irradiance graph (LWD characteristics)

Uniformity (Relative irradiance)

Uniformity (Relative irradiance)

LN-61UV3-365

Relative irradiance graph (LWD characteristics)*2*3

Relative irradiance graph (LWD characteristics)

Uniformity (Relative irradiance)

Uniformity (Relative irradiance)

LNSP-300UV3-365-FN (Narrow type)*1

Relative irradiance graph (LWD characteristics)*2*3

Relative irradiance graph (LWD characteristics)

Uniformity (Relative irradiance)

Uniformity (Relative irradiance)

LNSP-300UV3-365-FNNR (Wide type)

Relative irradiance graph (LWD characteristics)*2*3

Relative irradiance graph (LWD characteristics)

Uniformity (Relative irradiance)

Uniformity (Relative irradiance)

*1 At short distances, uniformity of irradiation from narrow type Light Units is reduced.This may affect imaging depending on the type of workpiece.
*2 Relative irradiance : Irradiance on the optical axis
*3 LWD : Illuminating distance from the Light Unit to the workpiece

Options

Lens Filters (Options)

Ultraviolet cutting filter L42 series

Ultraviolet cutting filter L42 series

Blocks light with a wavelength of 420 nm or lower, transmits light with a longer wavelength.


Ultraviolet cutting filter L42 series Products page

Filter Characteristics and UV-LED Spectral Distribution

Filter Characteristics and UV-LED Spectral Distribution

Examples

Workpiece
Workpiece Postcard

Postcard

Without ultraviolet cutting filter
Without ultraviolet cutting filter

Without a filter, both UV and visible light are captured.

With ultraviolet cutting filter
With ultraviolet cutting filter

By using a UV cut filter, only the excited scattering light from the ink will be captured.

Ultraviolet transmission filter U340 series

Ultraviolet transmission filter U340 series

Transmits light with wavelength range of approx. 280 nm to 380 nm, centered around 340 nm.


Ultraviolet transmission filter U340 series Products page

Characteristics of UV Transmission Filter and UV-LED Spectral Distribution

Characteristics of UV Transmission Filter and UV-LED Spectral Distribution

Band-pass filter F-BP series

Band-pass filter F-BP series

Transmits light with a specific range of wavelength, and is available for a wide range of fluorescent wavelengths

  • High transmittance at 90% or greater
  • Hard coated filter with high durability
  • Twelve-product lineup available for a wide range of wavelengths

Band-pass filter List

Extension cables Recommended Control Units

Series Model name*1 Extension cables Recommended Control Units

LDR2

 LDR2-60UV3-365-N
LDR2-60UV3-365-W

FCB*3 Straight Cable


FCB-W*4 2-branch Cable


FCB-F 4-branch Cable


FRCB Robot Cable

PD4 series


PD3 series


CC-ST-1024


PSB series


POD series*2
LDR2-60VL3-□-N
LDR2-60VL3-□-W
LDR2-100UV3-365-N
LDR2-100UV3-365-W

PD4 series


PD3 series


PSB series


POD series*2
LDR2-100VL3-□-N
LDR2-100VL3-□-W

LDL

 LDL-71X12UV3-365-N
LDL-71X12UV3-365-W

FCB*3 Straight Cable


FCB-W*4 2-branch Cable


FCB-F 4-branch Cable


FRCB Robot Cable

PD4 series


PD3 series


CC-ST-1024


PSB series


POD series*2
LDL-71X12VL3-□-N
LDL-71X12VL3-□-W
LDL-138X12UV3-365-N
LDL-138X12UV3-365-W

PD4 series


PD3 series


PSB series


POD series*2
LDL-138X12VL3-□-N
LDL-138X12VL3-□-W
LDL-205X12UV3-365-N
LDL-205X12UV3-365-W
LDL-205X12VL3-□-N
LDL-205X12VL3-□-W
LDL-339X12UV3-365-N
LDL-339X12UV3-365-W

PD4 series


PD3 series


POD series*2
LDL-339X12VL3-□-N
LDL-339X12VL3-□-W

LN

 LN-61UV3-365

FCB*3 Straight Cable


FCB-W*4 2-branch Cable


FCB-F 4-branch Cable


FRCB Robot Cable

PD4 series


PD3 series


CC-ST-1024


PSB series


POD series*2
LN-61VL3-□
LN-128UV3-365

PD4 series


PD3 series


PSB series


POD series*2
LN-128VL3-□
LN-195UV3-365
LN-195VL3-□

HLDR

 HLDR-IP67-100UV3-365

FCB-M12 Straight Cable
(Dedicated cables)

PD4 series


PD3 series


PSB series
HLDR-IP67-100VL3-□

HLV2

 HLV2-24UV3-365

FCB*3 Straight Cable


FRCB Robot Cable

PD4 series


PD3 series


CC-PJ-0707


PJ series


PJ2 series
HLV2-24VL3-□

LNSP-FN

 LNSP-100UV3-365-FN

QCBM


QCB

PSCC-30048（A）


PSCC-60048（A）
LNSP-100VL3-□-FN
LNSP-100UV3-365-FNNR
LNSP-100VL3-□-FNNR
LNSP-200UV3-365-FN
LNSP-200VL3-□-FN
LNSP-200UV3-365-FNNR
LNSP-200VL3-□-FNNR
LNSP-300UV3-365-FN
LNSP-300VL3-□-FN
LNSP-300UV3-365-FNNR
LNSP-300VL3-□-FNNR
Series Model name*1 Extension cables Recommended Control Units
  • *1　□ shows the wavelength, 385/395/405.
  • *2　For information on the combination of Light Units and POD-series Control Unit, please refer to How to Check Lighting Connection Combinations
  • *3　The cables with a model name that ends with "-ME7", "-EL2", "-PF", or "-PF-EL9" are not included.
  • *4　The cables with a model name that ends with "-EL2" are not included.
  • Note：Models without POD as the recommended control unit cannot be used in combination with the strobe overdrive control unit. Please contact us if you would like to make a special order for the combination.

Products
