OPB-S25015W

Discontinued Product

Not available from "December/31/2024".
Please contact us for the recommended alternative model.

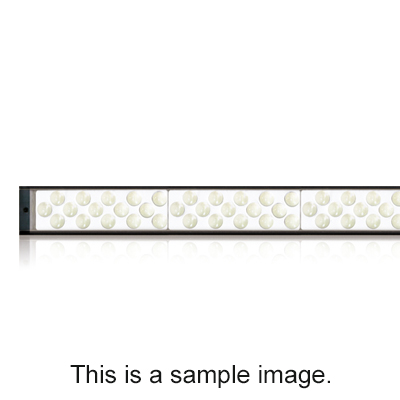

This Light Unit emits white light and measures 260 x 18.6 x 24 mm (width x depth x height).

Add to Watch List

LED color	White
Correlated color temperature	7,000 K
Dimensions	W 260 mm x D 18.6 mm x H 24 mm
Input voltage	12 VDC
Power consumption	14.7 W
Vibration resistance	10 to 55 Hz; amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
Shock resistance	Approximately 10 G, 3 times in each of the X, Y, and Z directions
Conformed standards	EMC (2014/30/EU), RoHS (2011/65/EU, MIIT Order No.32) / EN 61326-1:2013
Operating temperature and humidity	0 to 40°C/35 to 85% RH (no condensation)
Storage temperature and humidity	-20 to 70°C/35 to 95% RH (no condensation)
Weight	175 g
Material	Housing: Aluminum and PBT, Lens: PC (UV-resistant)

Product Details Dimensions (mm) Options Cables Control Units Downloads

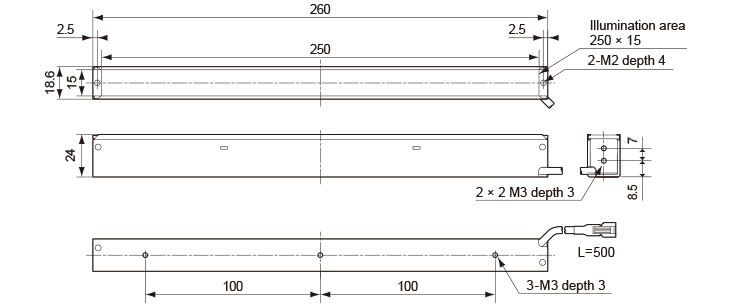

Dimensions (mm)

Options

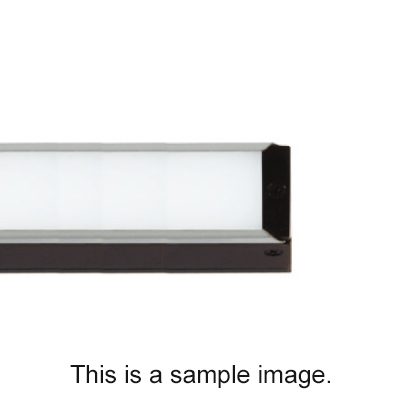

DF-OPB-25015

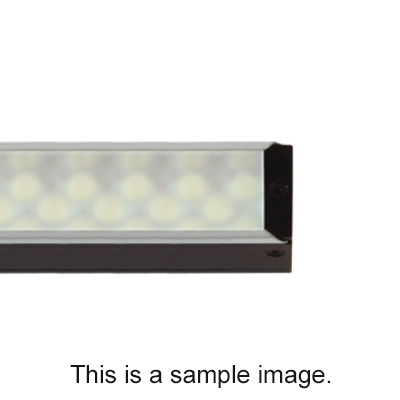

DF80-OPB-25015

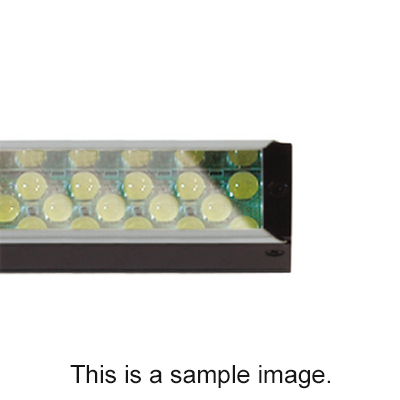

TC-OPB-25015

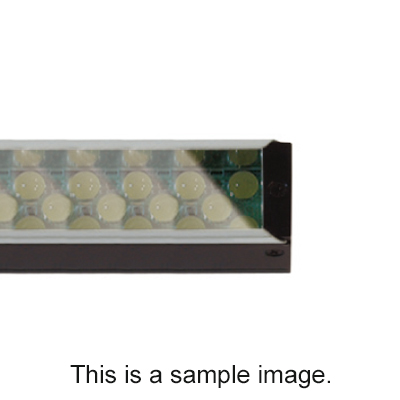

PL-OPB-25015
BKT-OPB-L

Cables

CB-2
CB-3
CB-5
RCB-2
RCB-3
RCB-5

Control Units

OPPD-30E

Downloads

General Catalog	DXF Drawing	User Manual	STEP Drawing
