SLG-150V-CCS Series

Near infrared and SWIR LED light source suitable for replacement of halogen light source

Features and Functions

Lineup of nine wavelengths (compared to halogen light sources)

Lineup of nine wavelengths (compared to halogen light sources)

* The graphs included are for reference only. Actual values may vary.

Functions

1,024-Step Intensity, Linear Characteristics with Reproducibility

Our unique correction function provides reproducible linearity

1,024-Step Intensity, Linear Characteristics with Reproducibility

* Graph is an image (not a guaranteed value).
The correction function of this product is ON.

Intensity value step can be adjusted

  • 1,024-step intensity (10-bit)
  • 256-step intensity (8-bit)

    • Equipped with a function for stabilizing optical output

    Stable light output even in severe operating environments

    Equipped with a function for stabilizing optical output

    * Graph is an image (not a guaranteed value).
    The stabilization function is OFF when the product is shipped.

    Standard Compatibility with Three Types of Light Guides
    Check the dimensions of the light guide to be used before selecting an adapter.
  • Be careful as plastic fiber cannot be used.
  • This product includes an adapter for attaching light guides. Please specify the shape of the light guide adapter when placing an order.
    • External Control with a Large Variety of Communication Methods
  • Ethernet communication control: TCP/IP and UDP/IP
  • Serial communication control: RS-232C
  • Parallel communication control

    • 　　Digital light control: Compatible with sink and source types
    　　Analog light control: Intensity control from 0 to 5

    Lineup

    Model Name*1 Power Consumption*2
    850 nm 940 nm 1060 nm 1100 nm 1150 nm  1200 nm 1300 nm 1450 nm 1550 nm
    SLG-150V-CCS-□-MN 95 VA 110 VA 115 VA -
    SLG-150V-CCS-□-MM - 115 VA
    • *1 The □ in the model name contains the corresponding wavelength.
      (850: 850 nm, 940: 940 nm, 1060: 1060 nm, 1100: 1100 nm, 1150: 1150 nm, 1200: 1200 nm, 1300: 1300 nm, 1450: 1450 nm, 1550: 1550 nm)
    • *2 Corresponding wavelengths of 1200 nm or less are only for the MN model (light distribution angle of 30°). Corresponding wavelengths of 1300 nm or more are only for the MM model (light distribution angle of 50°).

    Light Guide Adapters

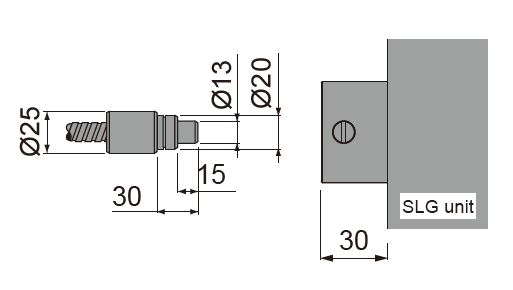

    Dimensions of the light guide adapters chart (mm)

    Please select a light guide adaptor when you purchase this product.

    Model name: AD-SLG-150-MO

    1,024-Step Intensity, Linear Characteristics with Reproducibility

    Model name: AD-SLG-150-HY

    Equipped with a function for stabilizing optical output

    Model name: AD-SLG-150-SU

    Equipped with a function for stabilizing optical output

    Caution: Be careful as plastic fiber cannot be used.

    Cables

    External control cable: EXCB2-25M-3

    External control cable: EXCB2-25M-3

    Parallel communication cable (Compatible with digital and analog intensity)EXCB2-25M-3

    External control cable: EXCB2-9M-9F-3-CR

    External control cable: EXCB2-9M-9F-3-CR
    Serial communication cable (RS-232C)

    EXCB2-9M-9F-3-CR
