OPS-S20W

[Not available in Japan]

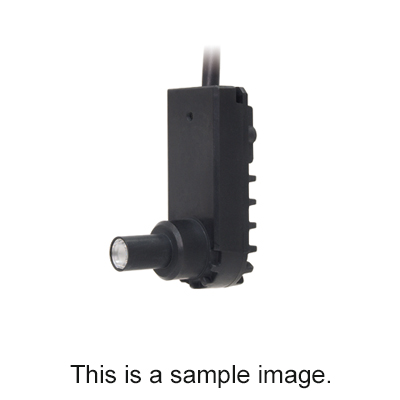

This Light Unit emits white light and has a light-emitting surface diameter of 7 mm.

Add to Watch List

LED color	White
Correlated color temperature	6,300 K
Dimensions	20 x 33 x 48 (W x D x H)
Input voltage	12 VDC
Power consumption	2.8 W
Vibration resistance	10 to 55 Hz; amplitude 1.5 mm; 8 hours in each of the X, Y, and Z directions
Shock resistance	Approximately 10 G, 3 times in each of the X, Y, and Z directions
Conformed standards	EMC (2014/30/EU), RoHS (2011/65/EU, MIIT Order No.32) / EN 61326-1:2013
Operating temperature and humidity	0 to 40°C/35 to 85% RH (no condensation)
Storage temperature and humidity	-20 to 70°C/35 to 95% RH (no condensation)
Weight	40 g
Material	Housing: ADC12, Lens: PC (UV-resistant)

Product Details Dimensions (mm) Options Cables Control Units Downloads

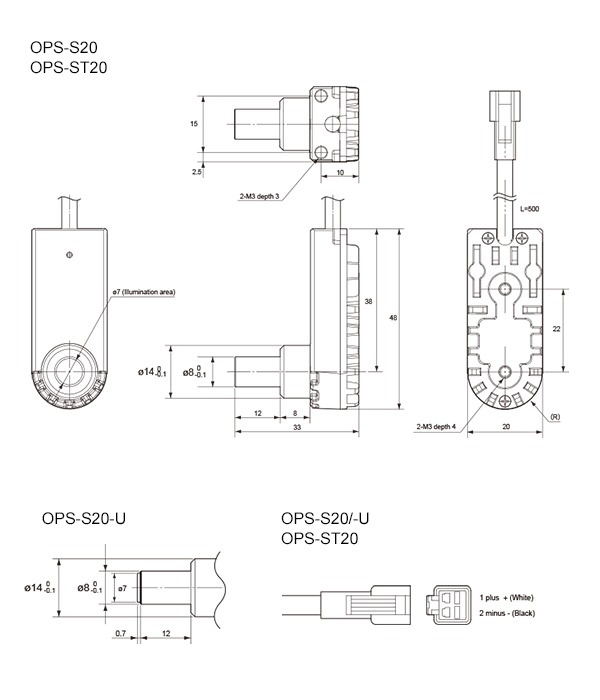

Dimensions (mm)

Options

HL-24-21

Cables

CB-2
CB-3
CB-5
RCB-2
RCB-3
RCB-5

Control Units

OPPD-30E

Downloads

General Catalog	DXF Drawing	User Manual	STEP Drawing
