LN-200CIR

Custom Order

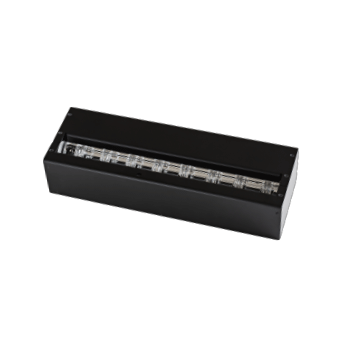

Convergent SWIR Light LN-200CIR
Converged emission using special lens.
Optimal for SWIR line scan inspections.

Add to Watch List

Input voltage	[output ratings] DC 5.2 V typ. [range] DC 5.0 to 5.2 V
Power consumption	46 W max.
Case material	Aluminum alloy
Output connector	HR34B-12WRA-10P
Conformed standards	CE, UKCA, RoHS, IEC 62471（Low risk）
Operating temperature and humidity	Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60℃, Humidity: 20% to 70%RH (with no condensation)
Cooling method	Natural air cooling
Weight	720 g max.
Accessories	User Manual
Notes	Warranty Period: 1 year, starting from CCS Inc. shipping date *However, if the accumulated lighting time exceeds 8,000 hours, the warranty is void even if it is within the warranty period.

Product Details Dimensions (mm) Options Downloads

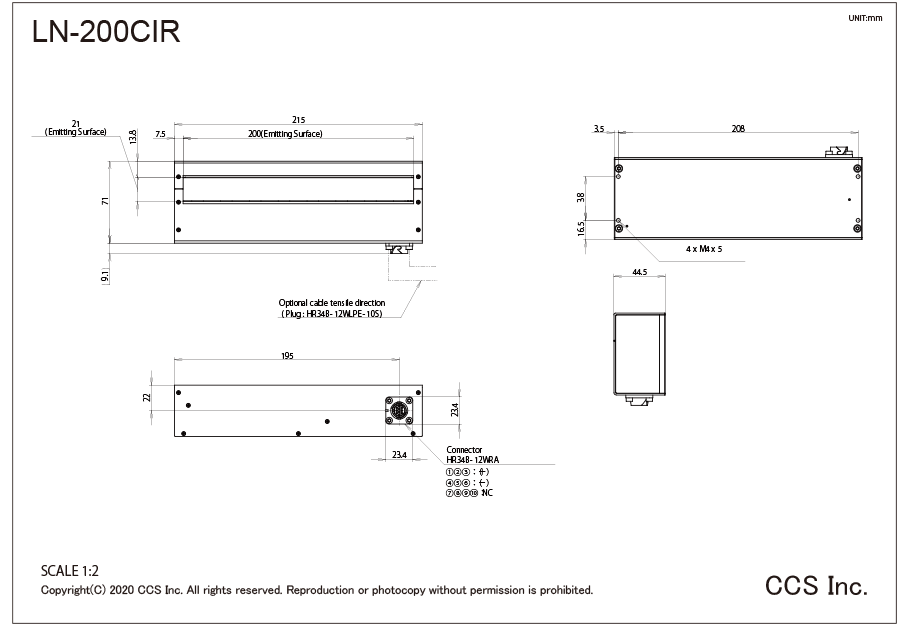

Dimensions (mm)

* Click to enlarge image.

Options

Option Cable : FCB-2-NC6HR10

Band-pass Filters : F-BP Series

We offer lens filters that transmit light in a specific wavelength range,
including bandpass filters for wavelengths of 1000 nm or more.
Please contact your sales representative for details.

Downloads

General Catalog	PDF Drawing	DXF Drawing	Pamphlet	User Manual
