MSU-47X34SW+TH2SP

HOME > Products Information > Machine Vision Applications > Coaxial > MSU Series (Lens-integrated Parallelism-variable Coaxial Lights) > MSU-47X34SW+TH2SP

MSU-47X34SW+TH2SP

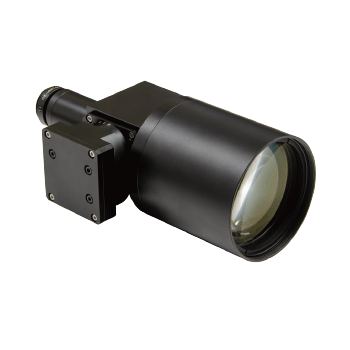

Lens-integrated parallelism-variable coaxial light MSU-47X34SW+TH2SP (custom order).
Integrated lens for easy light source and camera optical axis adjustment.

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Add to Watch List

LED color	White
Correlated color temperature	5,800 K
Input voltage	24 VDC
Power consumption	2.9 Ｗ max.
Cable length	Approx. 0.3 m
Input connector	SMR-03V-B
Conformed standards	RoHS, REACH
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 80% RH (with no condensation)
Storage temperature and humidity	Temperature: -10 to 50°C, Humidity: 20 to 80% RH (with no condensation)
Cooling method	Natural air cooling
Weight	Approx. 1.1 kg
Material	Aluminum alloy, Glass
Notes	Applicable: Image Size10.3 x 14.1 mm (diagonal 17.6 mm, 1.1 type) As the image size is in inches, the field of view is an approximation.

Product Details Dimensions (mm) Downloads

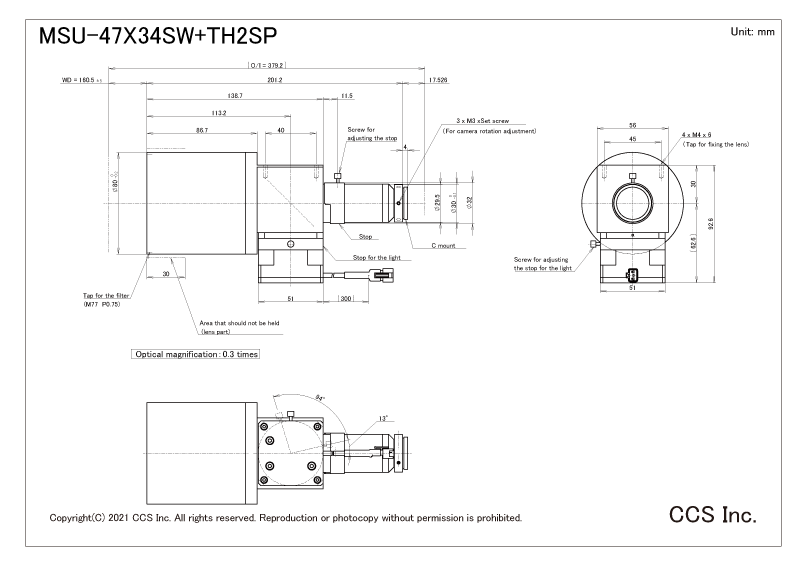

Dimensions (mm)

* Click to enlarge image.

Downloads

General Catalog	PDF Drawing
