HLV3-22RD-4C / HLV3-22SW-4C / HLV3-22BL-4C / HLV3-22GR-4C

Standard Product

HLV3 Series Cylindrical Type High Output Models (HLV3-22RD-4C, HLV3-22SW-4C, HLV3-22BL-4C, HLV3-22GR-4C)
This Light Unit emits LED light and has an outer diameter of 22 mm, a tip diameter of 8 mm, a light-emitting surface diameter of 6 mm, and a total length of 61 mm.

Add to Watch List

Product Details Dimensions (mm) Options Cables Power Supplies Downloads

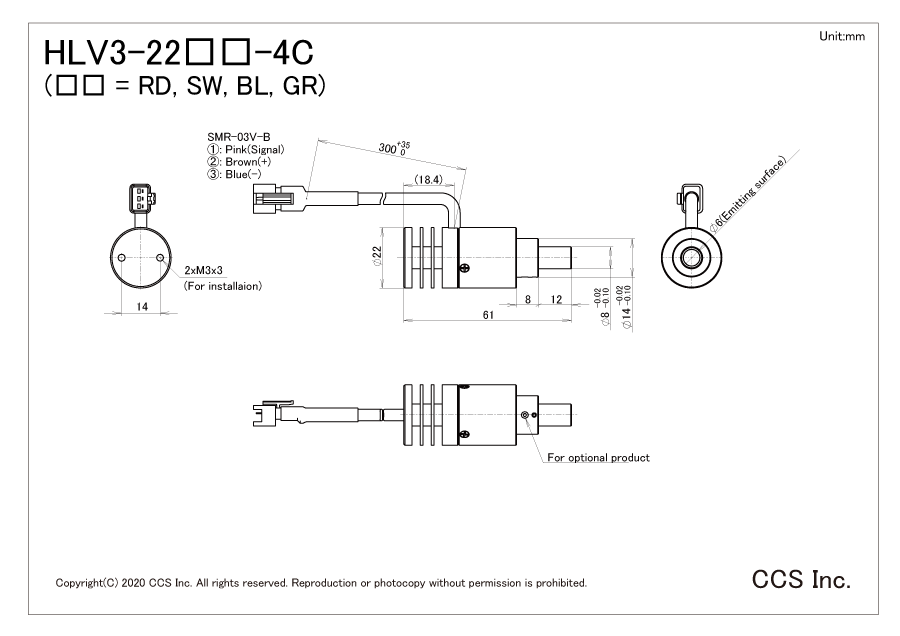

Dimensions (mm)

* Click to enlarge image.

Options

HL-24-21
HL-30
HL2-25-P
HL2-50-P
HL2-M50-C

Cables

FCB-1

Cable length: 1 m
Straight cable
FCB-2

Cable length: 2 m
Straight cable
FCB-3

Cable length: 3 m
Straight cable
FCB-5

Cable length: 5 m
Straight cable
FRCB-1

Cable length: 1 m
Robot cable
FRCB-2

Cable length: 2 m
Robot cable
FRCB-3

Cable length: 3 m
Robot cable
FRCB-5

Cable length: 5 m
Robot cable
FCB-HLV3-10
FRCB-HLV3-10

Power Supplies
Control Unit Guide(PDF)

PJ2-1505-2CA-PE
PJ2-3005-4CA-PE

Downloads

General Catalog	PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info	3D-CAD
