LNSP-300UV365-FN

Standard Product
Discontinued Product

Not available from "June/30/2023".
The recommended alternative model is LNSP-300UV3-365-FN.

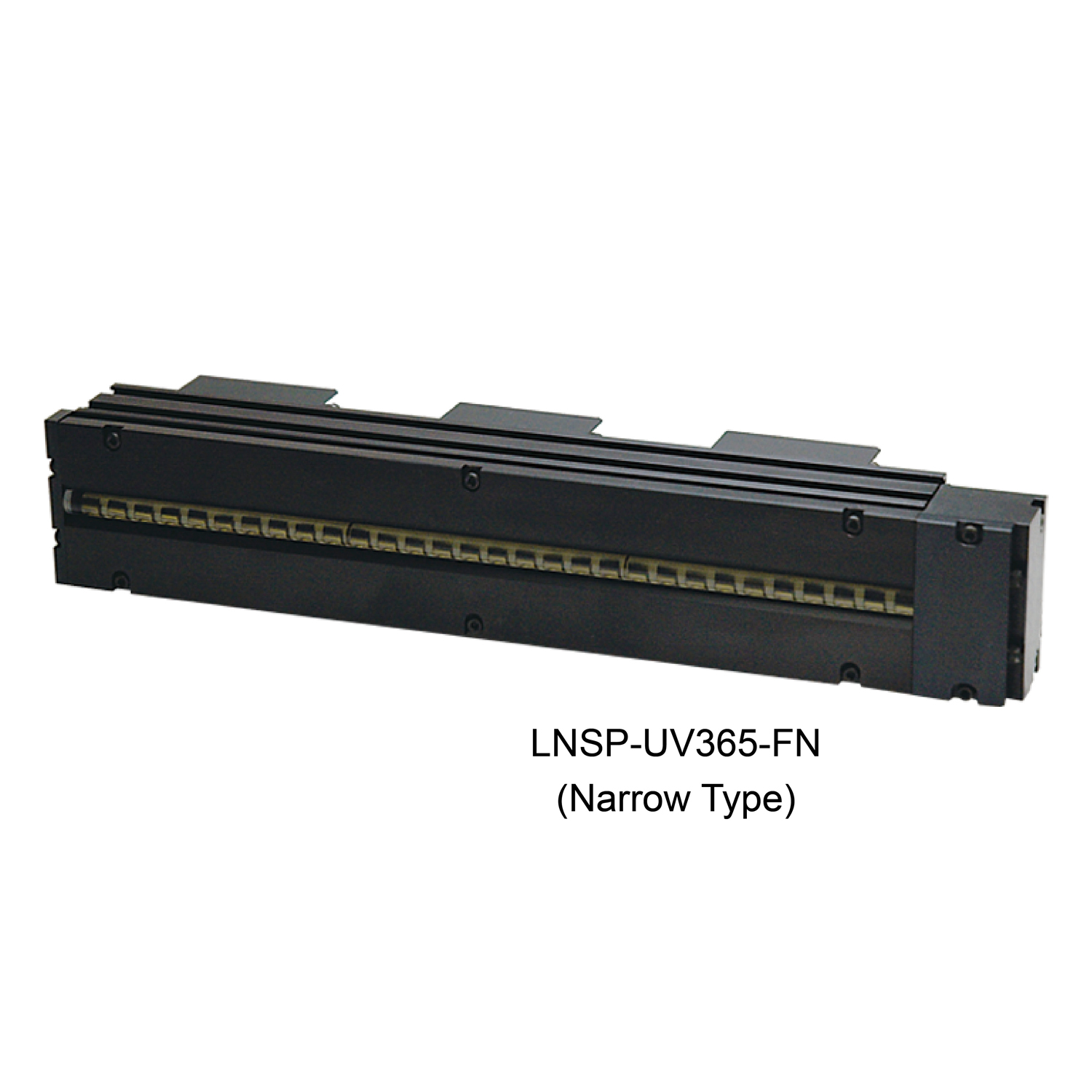

This Light Unit emits ultraviolet light and measures W 339 x D 62 x H 79.8 mm.
The radiating surface measures 300 x 9.4 mm.
(Narrow type)

Add to Watch List

LED color	Ultraviolet
Peak wavelength	365 nm typ.
Dimensions	W 339 x D 62 x H 79.8 mm
Power consumption	92 W max. (Including power consumption for fans)
Cable length	300 mm
Case material	Aluminum alloy, Steel sheet, Quartz glass
Input connector	Metal connector PRC04-12A26S-37M18 (Tajimi Electronics co.,ltd)
Conformed standards	CE, UKCA, RoHS, IEC 62471（High risk）
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Forced cooling
Weight	1,800 g max.
Accessories	User Manual, Radiation aperture seal, UV DANGER Seal, Nuts for frame x 4, FG line (2 m), M3 mounting screw

Product Details Dimensions (mm) Cables Power Supplies Downloads

Dimensions (mm)

* Click to enlarge image.

Cables

QCB-2
QCB-3
QCB-5
QCB-10
QCB-20
QCBM-2
QCBM-3
QCBM-5
QCBM-10
QCBM-20

Power Supplies
Control Unit Guide(PDF)

PSCC-30048(A)
PSCC-60048(A)

Downloads

PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info	3D-CAD
