[Discontinued] PMA-1024C

HOME > Products Information > Human Vision Inspection and Microscope Applications > LED Light Units for Microscopes > [Discontinued] PMA-1024C Series > [Discontinued] PMA-1024C

[Discontinued] PMA-1024C

Discontinued Product

This is the Power Supply for CSR LED Ring Lights.　Electrostatic countermeasures have been applied.

Add to Watch List

Successor model	Contact us
Dimensions	W 65mm x D 114mm x H 50mm
Intensity control	Use of the intensity control knobs on the front panel
Output voltage	26V DC max.
Output connector	PRC05-R3F [A : Output (+) / B, FC : Output (-)] x 1Piece
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	350 g
Material	Steel plate t1.0
Accessories	2m AC cord (125V AC) with a protective ground terminal x 1, 3-pin to 2-pin Conversion Adapter with a ground wire x 1

Product Details Dimensions (mm) Downloads

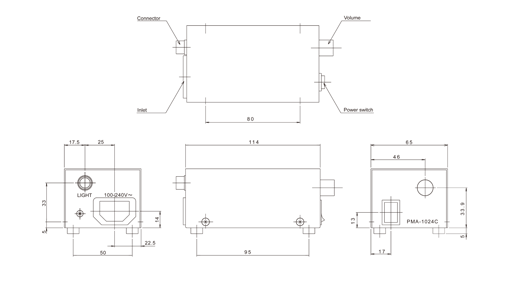

Dimensions (mm)

Downloads

User Manual
