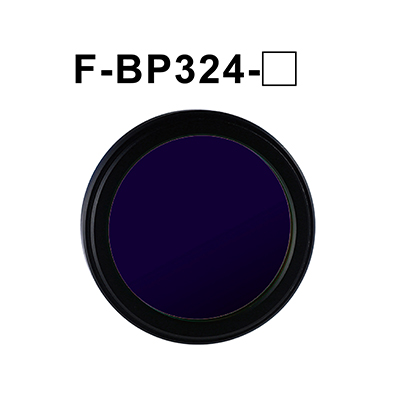

F-BP324-13.25

Band-pass filter for ultraviolet LED Light Units.
Transmits the light of 290 to 365 nm and prevents the influence of ambient light.
Compatible with a lens filter thread diameter of M13.25 x P0.5 mm.

Add to Watch List

Dimensions	Outer diameter 14.75 mm, Inner diameter 10.5 mm, Height 7.5 mm
Screw hole diam. x Screw pitch	M13.25 x P0.5
Useful range	290 to 365 nm
Full width at half max	105 nm
Wavelength tolerance	+/-10 nm
Peak transmission	>90 %
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Lens material	Glass

Product Details Dimensions (mm) Downloads

Dimensions (mm)

* Click to enlarge image.

Downloads

PDF Drawing	DXF Drawing	Pamphlet	User Manual
