AD-BCR-90

AD-BCR-90 is an adapter exclusively for BCR Series (Ring Light) series "BCR-90x".
It is required when installing the diffusion plate DF-BCR-90 or polarizing plate PL-BCR-90 on the BCR-90x.
Warranty for this product are not the same as CCS standard lighting. Contact our local sales o ice for details.<br />

Add to Watch List

Dimensions	Outer diameter 96 mm x Inner diameter 84 mm x Height 8 mm
Conformed standards	RoHS, CE

Product Details Dimensions (mm) Downloads

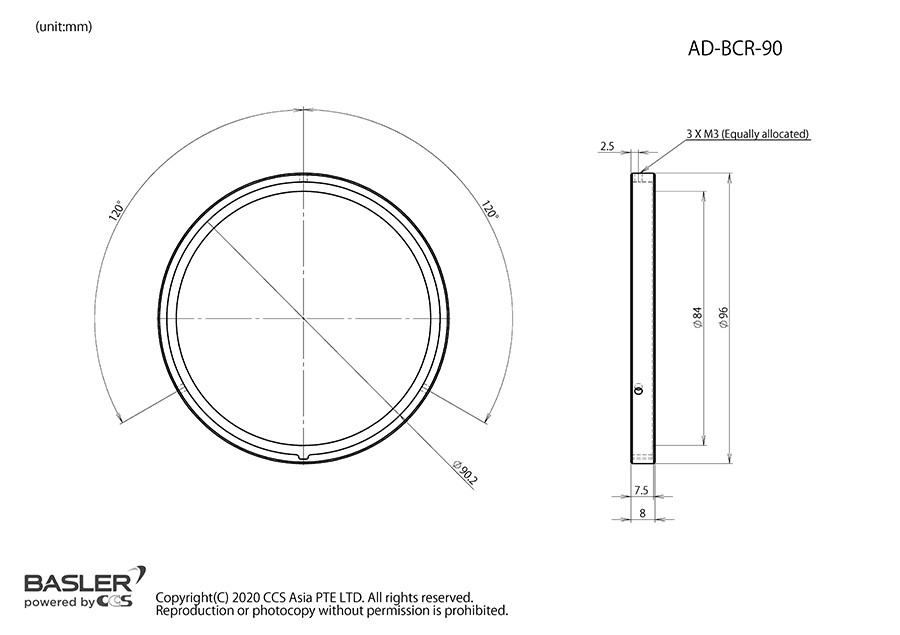

Dimensions (mm)

* Click to enlarge image.

Downloads

PDF Drawing	DXF Drawing	STEP Drawing
