RB-HLV-385

Standard Product

Dedicated adapter for connecting Spot lighting to PD4-A Series (digital control units).

Compatible lighting: Spot lighting with an input current of 385 mA.
W 24 mm x D 60 mm x H 80 mm.

Add to Watch List

Applicable Light Unit (output ratings)	HLV Series (Input current : 385 mA)
Number of channels	1 channel
Drive method	Constant-current system
Compatible control units	PD4-A Series
Power consumption	6.2 W^* * Total power consumption of this product and the connected Spot lighting
Cable length	Control unit extension cable: 5 m or less Lighting extension cable: 5 m or less
Conformed standards	[Compatible standards] CE, UKCA, KC [Environmental regulations] RoHS
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85% RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85% RH (no condensation)
Cooling method	Natural air cooling
Weight	310 g or less
Material	[Material] Steel plate [Surface processing] Black leather tone
Accessories	User Manual
Caution	This product is dedicated to the PD4-A Series. When using this product, please check the rated current of the connected spot lighting. Connecting an incompatible spot lighting may cause overheating or malfunction. Ensure that the total power consumption does not exceed the maximum output of the PD4-A Series. Branch cables cannot be used on either the lighting or control unit side.

Product Details Dimensions (mm) Downloads

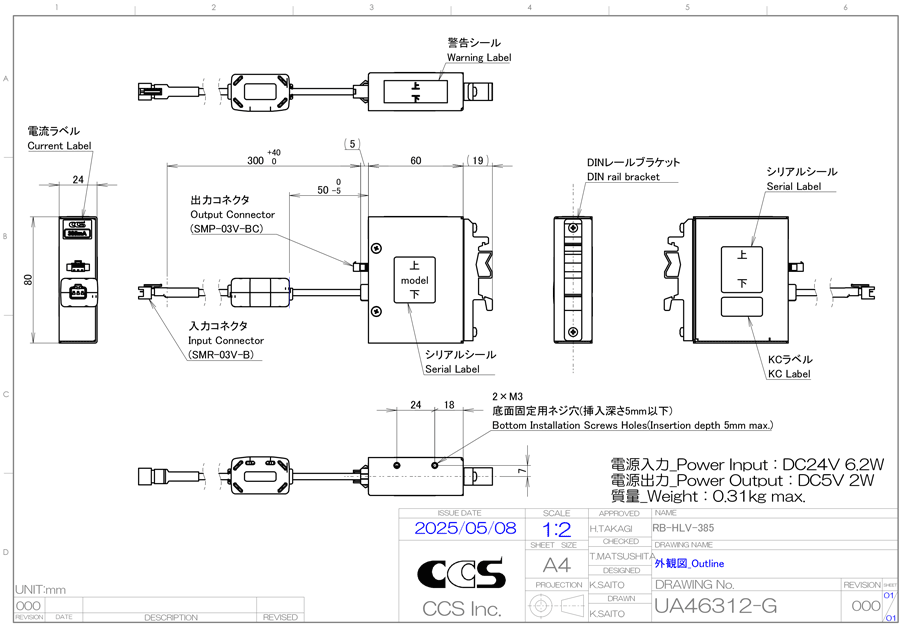

Dimensions (mm)

* Click to enlarge image.

Downloads

PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info	3D-CAD
