LNSP Series
Not available from "Dec/31/2021".
The recommended alternative series is LNSP2 Series.

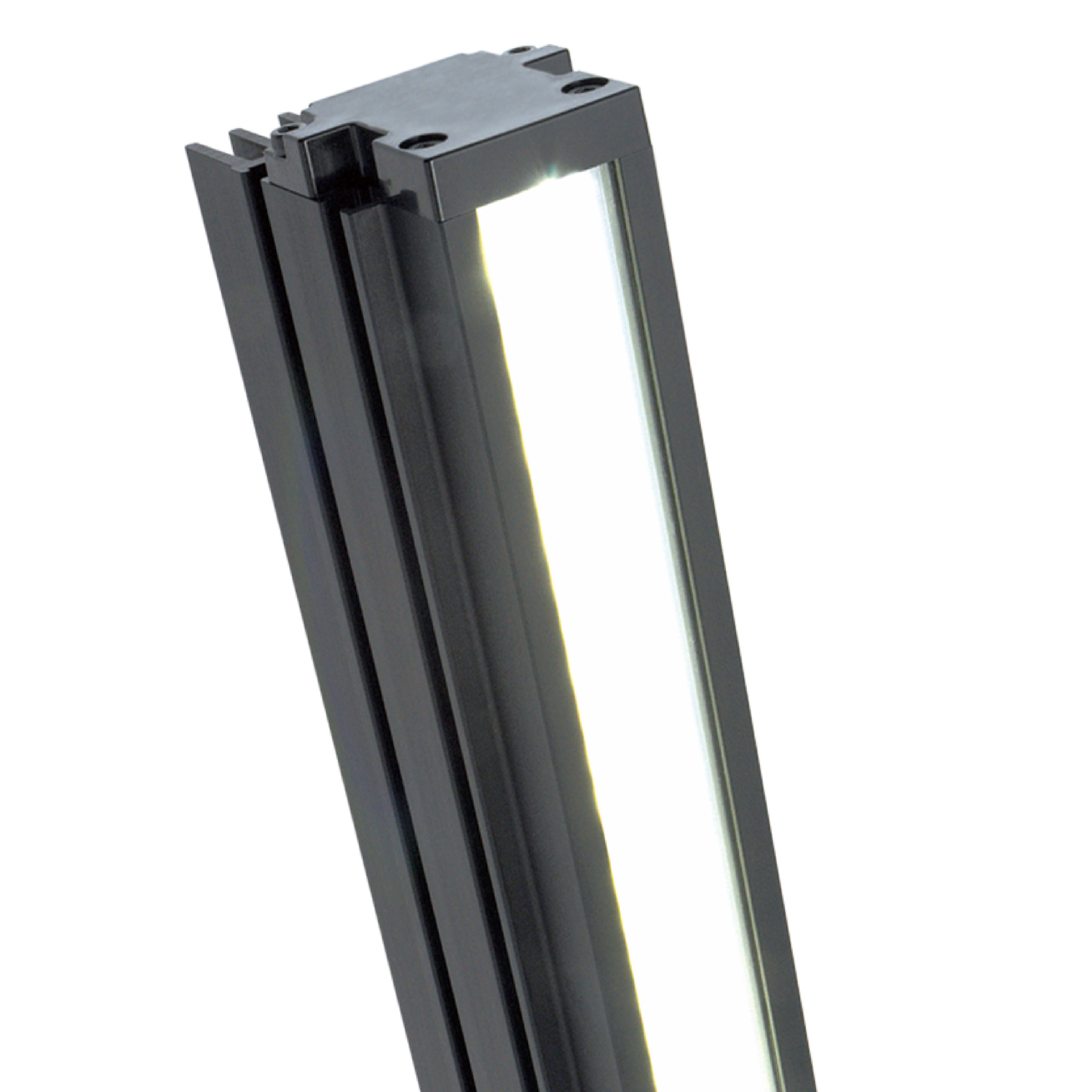

Compact and high-power LED Lights for line scan applications.
The light-emitting surface length can be made from 100 mm to 1,000 mm in units of 100 mm.
Download Pamphlet PDF
Features
Illuminance of 400,000 lx* with a natural air cooling type(※At the LWD of 50 mm)
Achieving both high output and compact space

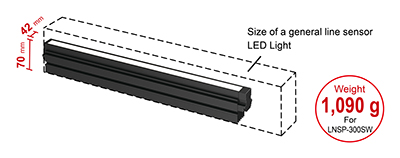

Achieved a more compact design compared to LED Lights for general high output line sensors.

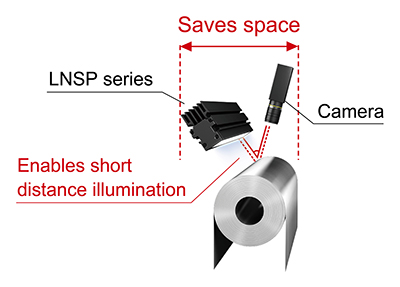

Saving space for your inspection environment
By making the Light Unit more compact, we contribute to saving space in your inspection environment or equipment environment.

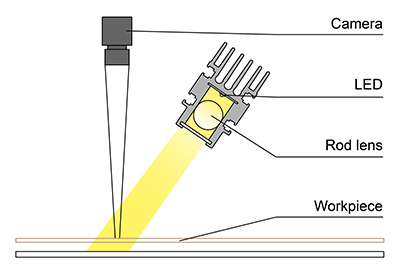

Unique illuminating mechanism with little light diffusion
By controlling light diffusion through the unique illuminating mechanism, there is little change in the brightness due to distance, so you can flexibly set the distance between the workpiece and the Light Unit. Uses constant-voltage control.

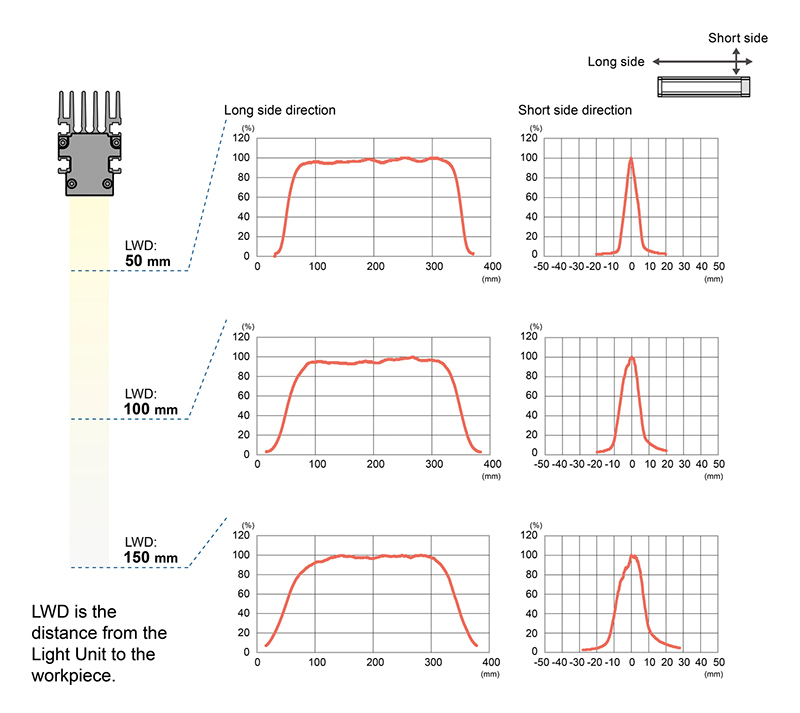

Uniformity graph for illuminating distance of LNSP-300SW
※The graph included is for reference only. Actual values may vary.
Applications
Visual inspection for circuit boards mounted with electronic parts
Example configuration
Achieves high output illumination with controlled diffusion due to this unique illuminating mechanism. Because light does not easily diffuse, there is little loss for the amount of light, allowing for illumination over long distances.
LNSP series
Characteristics/Data

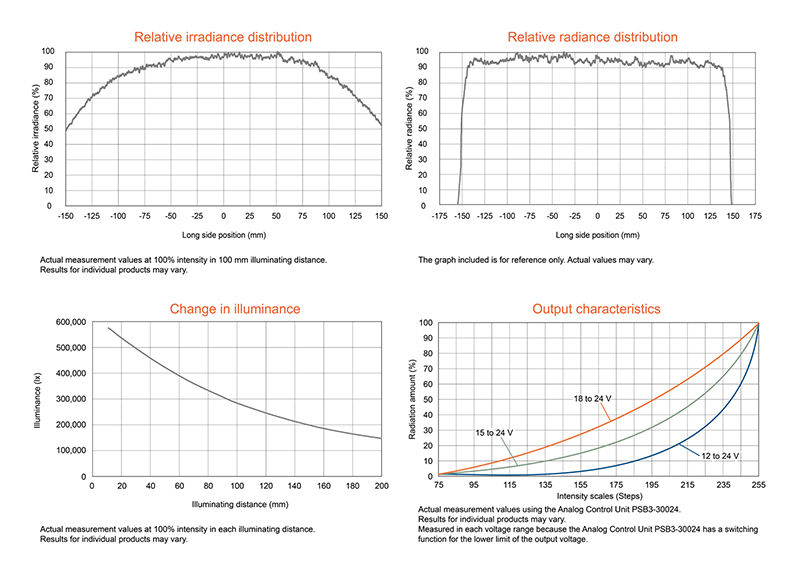

Data (Representative example)
※The graph included is for reference only. Actual values may vary.
LNSP-300SW
LED properties

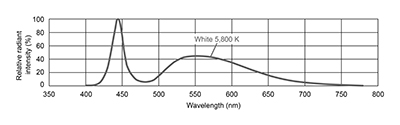

Spectral distribution
The data included is for reference only. Actual values may vary.

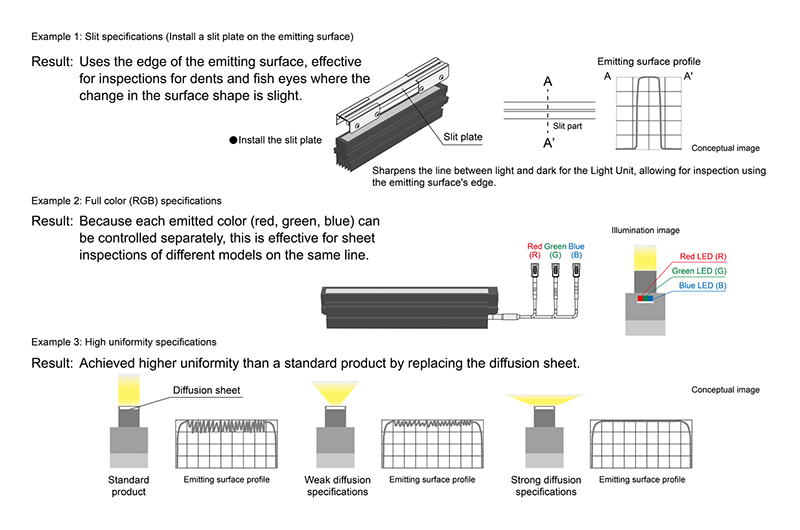

Custom Order Example
Please contact your CCS sales representative.
