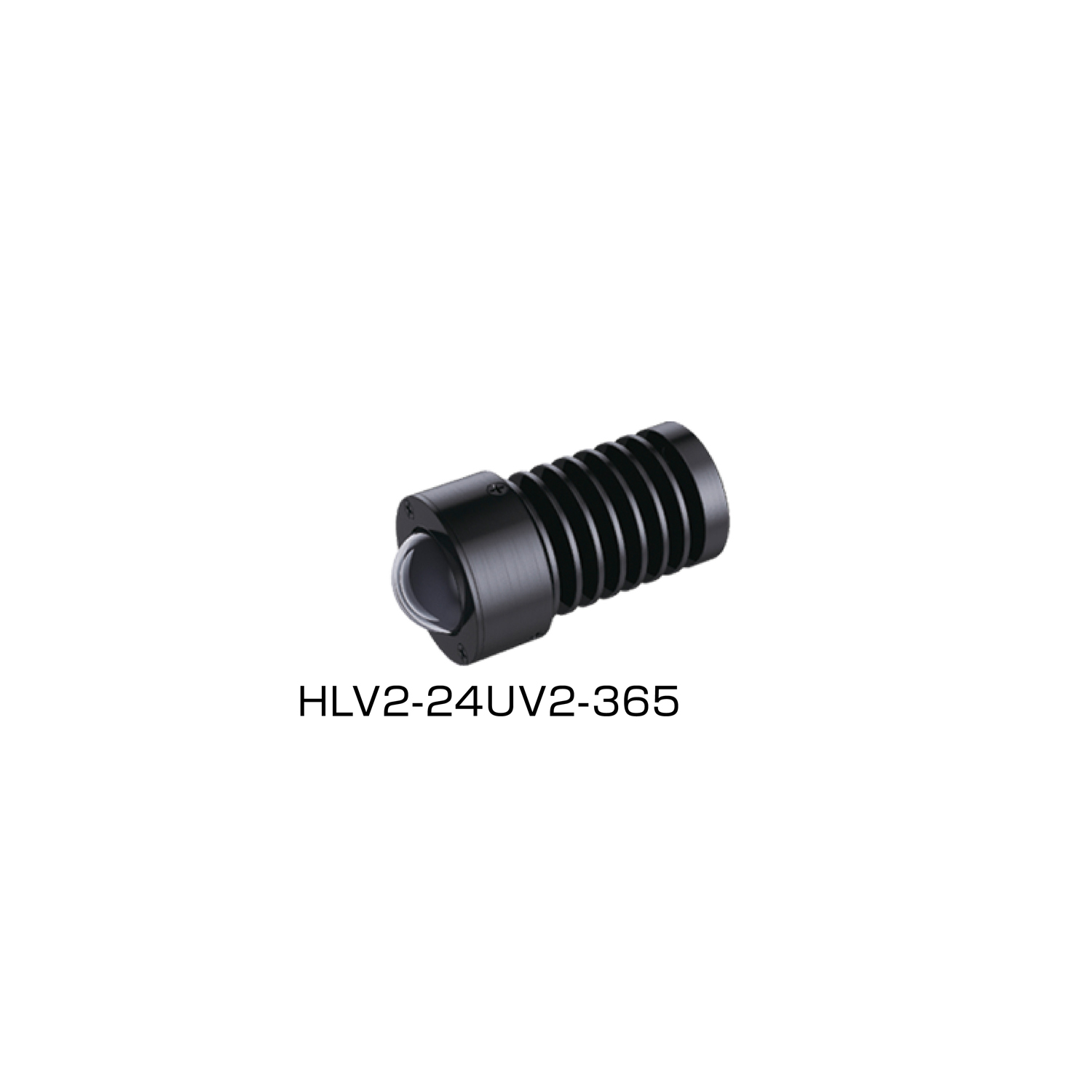

HLV2-24UV2-365

  • Standard Product
  • Discontinued Product

Not available from "June/30/2023".
The recommended alternative model is HLV2-24UV3-365.


This Spot Light Unit emits UV light and has an outer diameter of 24 mm, tip diameter of 28mm, and total length of 54 mm.

Note: Select a Power Supply Unit with the number of channels corresponding to the number of Light Units to be used or the number of input connectors on the Light Units. Also make sure that the total power consumption of the Light Units is within the output power capacity of the Power Supply Unit to which they are connected.

Dimensions (mm)

* Click to enlarge image.

Cables

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

Power Supplies

Control Unit Guide(PDF)

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • CC-PJ-0707

  • PJ-1505-2CA

  • PJ-1505-3CA

  • PJ-1505-2CD24

  • PJ-1505-3CD24

Downloads

PDF Drawing DXF Drawing Pamphlet User Manual Warranty & Environmental Info 3D-CAD
