HLV3-22SW-4-NR

This Light Source emits white light and has an outer diameter of 22 mm, a tip diameter of 14 mm, a light-emitting surface diameter of 10 mm, and a total length of 48.1 mm.

Dimensions (mm)

* Click to enlarge image.

Cables

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FCB-HLV3-10

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

  • FRCB-HLV3-10

Power Supplies

Control Unit Guide(PDF)

  • PJ2-1505-2CA-PE

  • PJ2-3005-4CA-PE

Applicable products

  • HFS-14-500

  • HFR-25-10

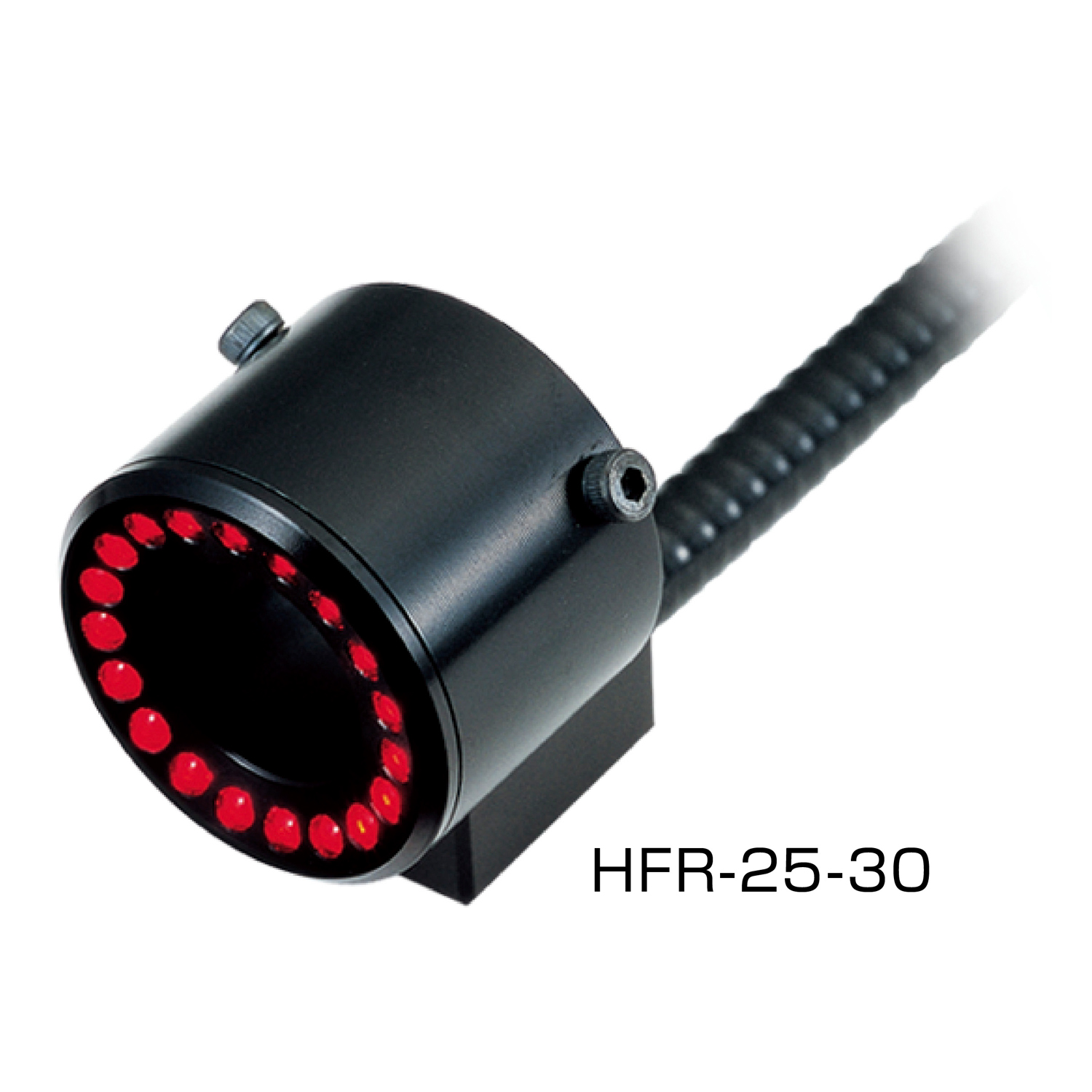

  • HFR-25-30

  • HFR-40-20
