LFX2 Series

Not available from "Feb/28/2018."
The recommended alternative series is LFX3 Series


These epoch-making Light Units were achieved through our unique lighting technology. The dot pattern on the surface of the light-guiding diffusion plate controls the diffusion and transmission of the light. Uniform and shadow-free diffused light can be radiated onto the workpiece. Emitting power is greater than the LFX Series.

Download Pamphlet PDF

Product Inquiry

Features

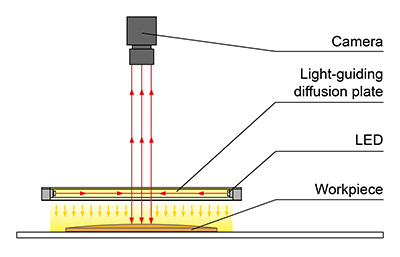

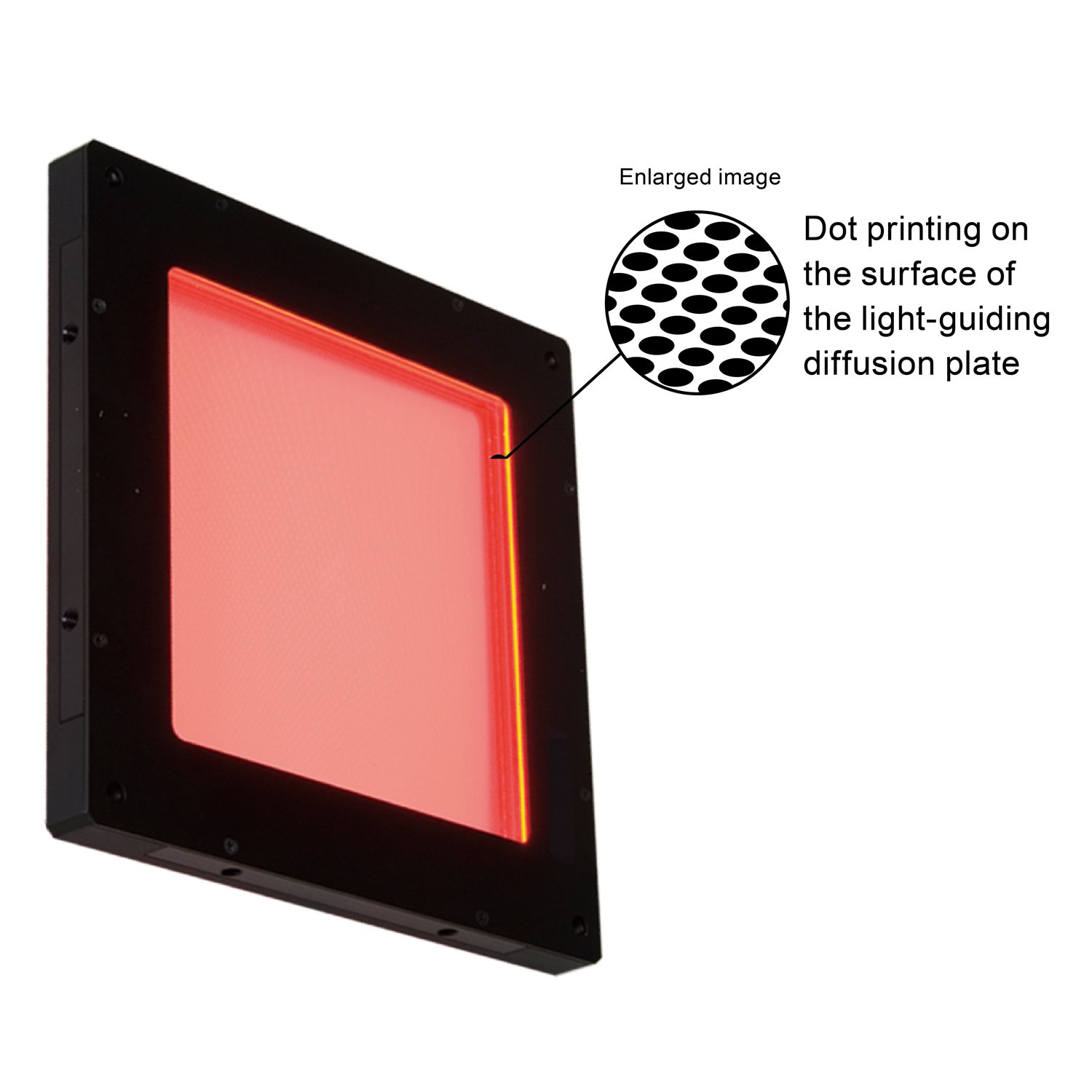

The dot pattern on the surface of the light-guiding diffusion plate controls the diffusion and transmission of the illuminated light.
This product can illuminate uniform diffused light onto the workpiece.

Example configuration

LFX2-100

Characteristics/Data

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

LFX2-100SW

Custom Order Example

We accept custom orders.

Please feel free to inquire.

  • Shape modifications
  • Brightness increases
  • Changes in wavelength, etc.

Imaging Example

Imaging of foreign materials mixed in instant noodles

Lineup

The following services are available for the products in Watch List:

LFX2-50RD

  • Standard Product

LFX2-50SW

  • Standard Product

LFX2-50IR850

  • Standard Product

LFX2-75RD

  • Standard Product

LFX2-75SW

  • Standard Product

LFX2-75IR850

  • Standard Product

LFX2-100RD

  • Standard Product

LFX2-100SW

  • Standard Product

LFX2-100IR850

  • Standard Product

LFX2-150RD

  • Standard Product

LFX2-150SW

  • Standard Product

LFX2-150IR850

  • Standard Product

LFX2-200RD

  • Standard Product

LFX2-200SW

  • Standard Product

LFX2-200IR850

  • Standard Product
