LDL Series [Bar Type]

Not available from Feb/28/2011".
The recommended alternative model is LDL2 Series.

Compact and high-irradiance Bar Lights with LEDs perpendicularly implemented on a flat board. The position and angle of illumination can be adjusted as you desire when securing the Light Unit.

  • Bar Type

Ultravolet Light bar type

Features

Merits

Irradiation of the Infrared LED includes only the energy of specific region of wavelength, so that the irradiation heat is extremely low compared to the halogen lights and gives less damage on the workpiece.

Example configuration

Ring Lights that use infrared LEDs. Bar types and coaxial types are also available. Select your format to match your needs.

LDR2-90IR2-850/940

Near-infrared cameras in the testing rooms

Ready for the test with infrared light over 1,000 nm wavelength

CCS is deploying infrared-sensitive CCD cameras in the testing rooms where you can perform workpiece tests directly for yourself using our LED Lights. Please feel free to make an appointment. We are looking forward to helping you.

Characteristics / Data

LED properties

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the “Instruction Guide” included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

Please contact your CCS sales representative.

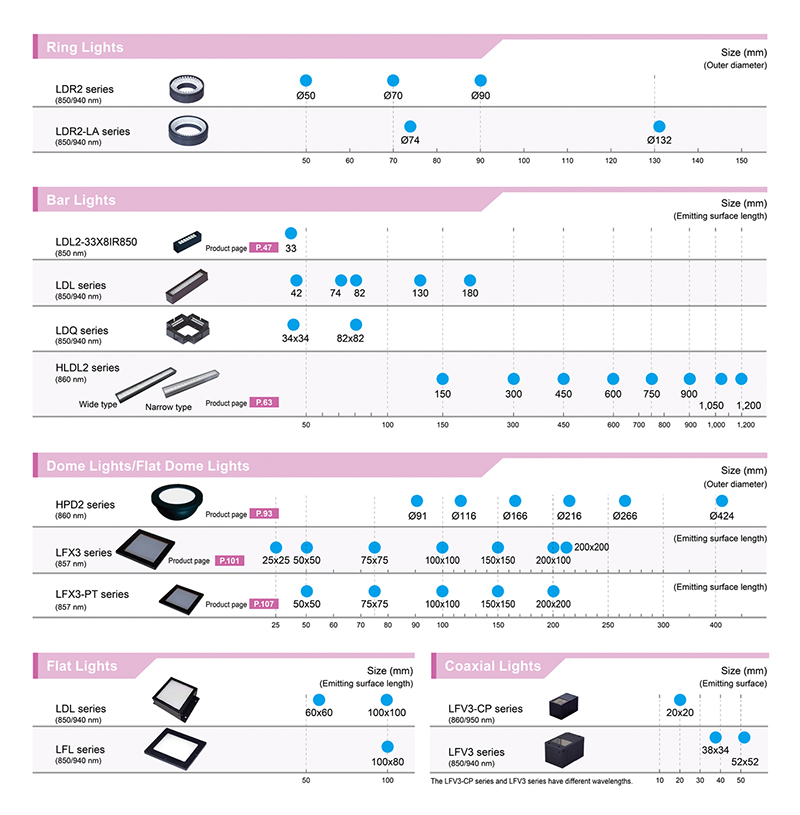

Extensive lineup of Infrared Lights

Custom products with a wavelength of 1,000 nm or more are available, please contact your CCS sales representative for details.

Imaging example

Imaging the using visible and infrared light

Infrared light is light that has a wavelength longer than that of visible red light and cannot be seen by the human eye. Compared to visible red light, infrared light has a low scattering rate and high transmittance rate, and therefore is used in imaging which penetrates printed patterns or liquids.

Imaging the foreign materials in disinfectant product

Description Foreign materials inspection
Workpiece Disinfectant product
Conventional lighting LED visible light lighting
New lighting LFL-100IR2-940
Result Infrared lighting penetrates the liquid

Imaging the appearance of leatherware

Description Visual inspection
Workpiece Leatherware
Conventional lighting LED visible light lighting
New lighting LDR2-132IR2-850-LA
Result Infrared lighting penetrates the dye on the threads

Infrared Light bar type

Features

Using high output UV-LEDs用

The high output UV-LEDs achieved enhanced output power significantly higher than that of conventional products.

Comparison of imaging with conventional product

Image comparing output of UV Lights by application

Narrow type to irradiate a narrow area

The product lineup includes wide type and narrow type Light Units to irradiate a respective extent. Select an optimum Light Unit to meet the purpose of use.

Comparison of output between a high output UV Light and a black light

※The data included is for reference only and the results may vary.

Example configuration

Ring Lights that use high output UV-LEDs. Bar types and spot types are also available. Select your format to match your needs.

LDR2-100UV2-365-W

Uses original UV-LEDs

Uses LEDs with our unique spark prevention mechanism

Because they have a steel alloy cap, many ultraviolet LEDs are susceptible to static electricity or impact. In particular, dead LEDs due to sparks occurring from contact with metal shards have been a major issue. Our company's original ultraviolet LEDs successfully solved this problem through our unique spark prevention mechanism. Compared to the conventional products, we significantly increased our "safety" and "reliability."

Peak wavelength of 365 nm, directional characteristics of ±20°

Light spectrum of the UV-LED

Directional characteristics

Our original ultraviolet LEDs have a peak wavelength of 365 nm and directional characteristics of ±20°. Using the mono-wavelength, a characteristic of LEDs, allows for stable imaging over a long period of time that captures the workpiece's characteristics more accurately than using a black light.
Furthermore, our rich lineup provides optimal Light Units depending on the inspected object, inspecting environment, and optical system.

Characteristics / Data

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

LDR2-100UV2-365-N

At short distances, uniformity of irradiation from narrow type Light Units is reduced.
This may affect imaging depending on the type of workpiece.

LDR2-100UV2-365-W

LDL-205X12UV2-365-N

At short distances, uniformity of irradiation from narrow type Light Units is reduced.
This may affect imaging depending on the type of workpiece.

LDL-205X12UV2-365

LN-195UV2-365(Light condensing)

HLV2-24UV2-365

LED properties

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

Custom Order Example

Please contact your CCS sales representative.

Imaging example

Imaging of scratches by magnetic particle inspection

Imaging of grease application on a bearing

Imaging of text at the bottom of an aluminum can

Imaging of packing tape on film
