HL2-M50-C

Available to be mounted on the HLV3-22-1- or HLV3-22-2-series Spot Light.
Condenser lens with adjustable barrel length, which allows settings suitable for various illuminating distances and ranges.

Add to Watch List

Dimensions	Outer diameter 57 mm, Total length 89.5 to 134.5 mm
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Weight	350 g max.
Caution	Use this product in a location with minimal vibration.

Product Details Dimensions (mm) Applicable products Downloads

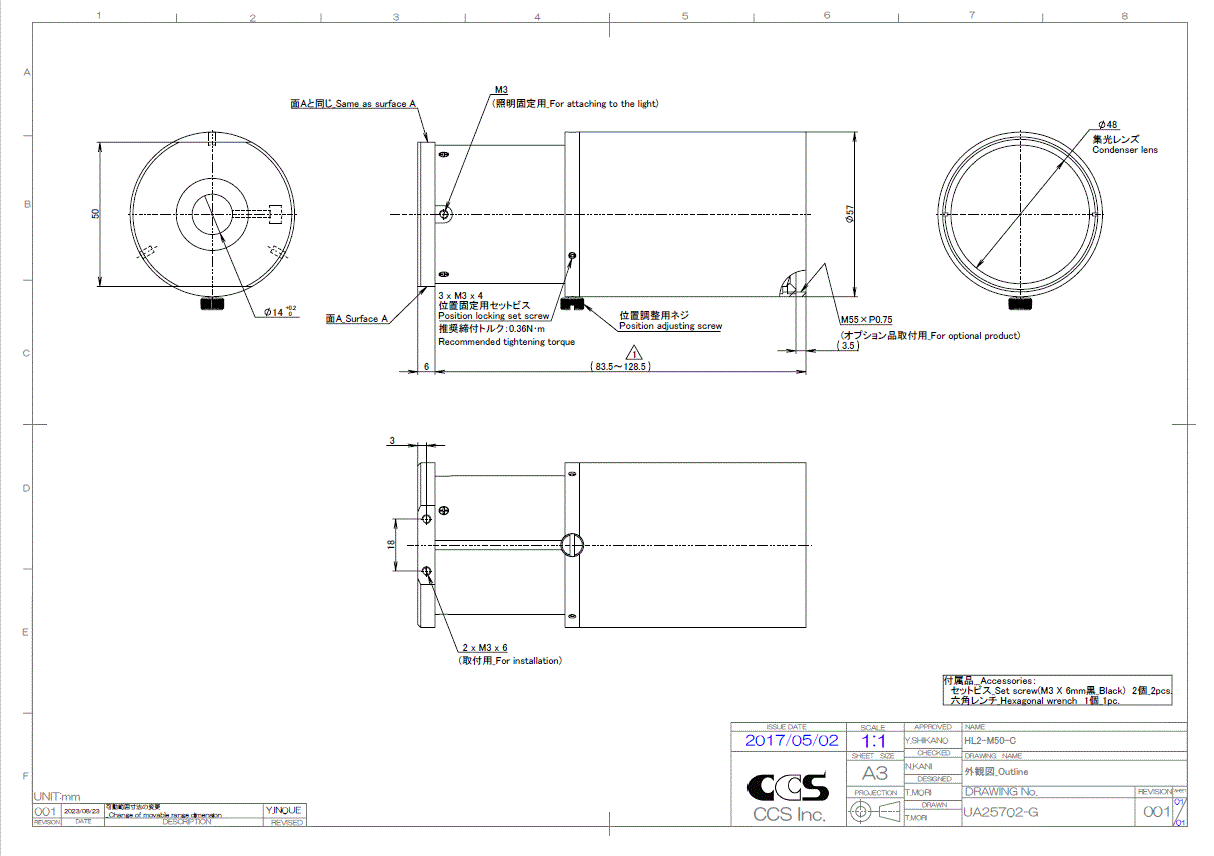

Dimensions (mm)

* Click to enlarge image.

Applicable products

HLV3-22RD-1
HLV3-22SW-1
HLV3-22BL-1
HLV3-22GR-1
HLV3-22RD-2
HLV3-22SW-2
HLV3-22BL-2
HLV3-22GR-2

Downloads

PDF Drawing	DXF Drawing	Pamphlet	User Manual	Warranty & Environmental Info	3D-CAD
